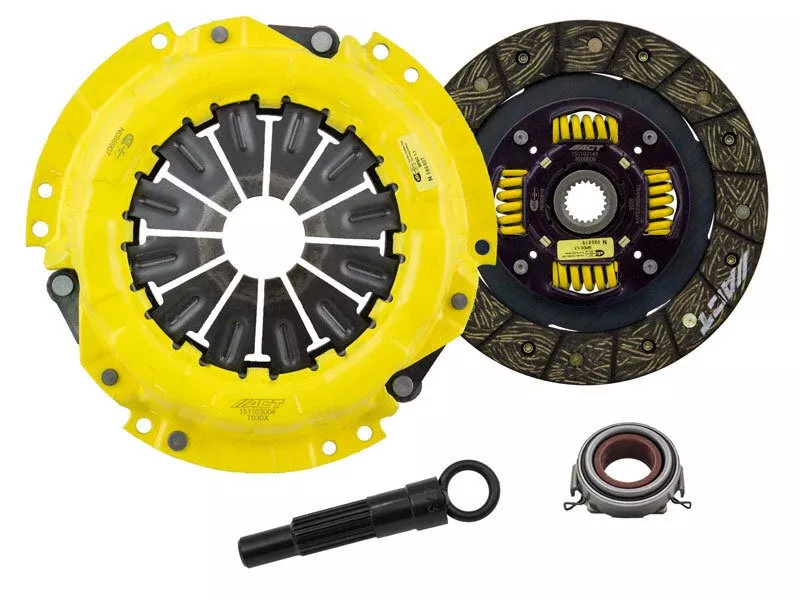

ACT TC1-XTSS – 1991 Geo Prizm XT/Perf Street Sprung Clutch Kit
ACT Extreme Performance Street Sprung Clutch Kit
XT/Perf Street Sprung
TC1-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.
- “Excellence in Performance”, backed by the best one-year warranty in the industry!
Pilot Bearing Included: NoClutch Master Cylinder Included: NoProduct Weight (lbs.): 12.9Torque Capacity (ft/lbs.): 310Torque Capacity Over OE: 74%Flywheel Included: NoPilot Bushing Included: NoPressure Plate Type: XtremeRelease Bearing Included: YesClutch Disc Diameter: 8.3Clutch Disc Diameter: 212Disc Material: OrganicInput Spline Quantity: 21Input Shaft Diameter: 0.9375Alignment Tool Included: YesDisc Type Sprung Solid: SprungPressure Plate Bolts Included: NoGrease Included: YesGrade Type: PerformanceClutch Slave Cylinder Included: NoFlywheel Bolts Included: No
