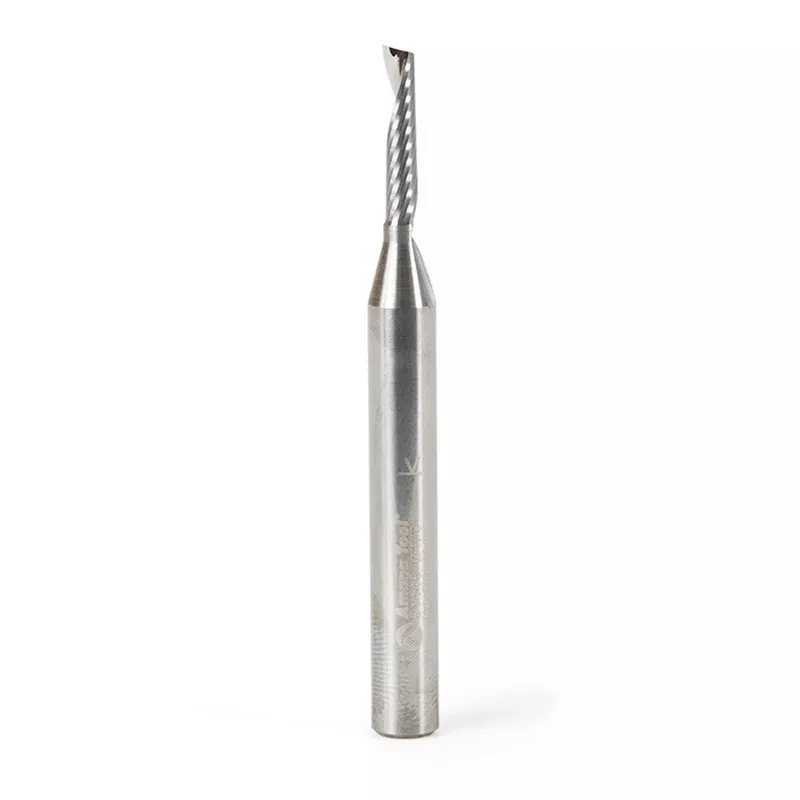

51445, Amana Solid Carbide Spiral ‘O’ Single Flute, Plastic Cutting 1/8 Dia x 5/8 x 1/4 Shank x 2-1/2 Inch Long Up-Cut Router Bit
Produce super clean, smooth cuts, especially in acrylic materials (Plexiglas, Lucite), other plastics and wood. Bits are made according to strict tolerances from an exclusive carbide grade and polished to a mirror finish using Amanas unique process. Designed to eject chips up. Ideal for industrial applications and CNC machines. Right hand helix, right hand cut.
Excellent for cutting:
- Plastic/Acrylic
- Acrylonitrile Butadiene Styrene (ABS)
- Alupanel
- Acetal and Nylon
- Corrugated Plastics*, such as Correx Boards and Polyproylene
- Delrin
- Gator Board
- Foam Board
- High Density Polyethylene (HDPE)
- Lucite
- Mechanical/Engineered Plastics
- Plexiglas
- Polycarbonates
- Solid Surface
- Ultra High Molecular Weight Polythylene (UHMW)
- Wood
- Teflon
Benefits of Mirror-Finish:
- Razor sharp cutting edge
- Effortless chip removal
- Helps prevent chip re-welding
- Extends tool life
- Exceptional cut quality
Specifications:
- Tool No. 51445
- Direction Up-Cut
- (D) Diameter 1/8
- (B) Cutting Height 5/8
- (d) Shank 1/4
- Overall Length (L) 2-1/2
- Flutes 1
- Maximum RPM:35,000
