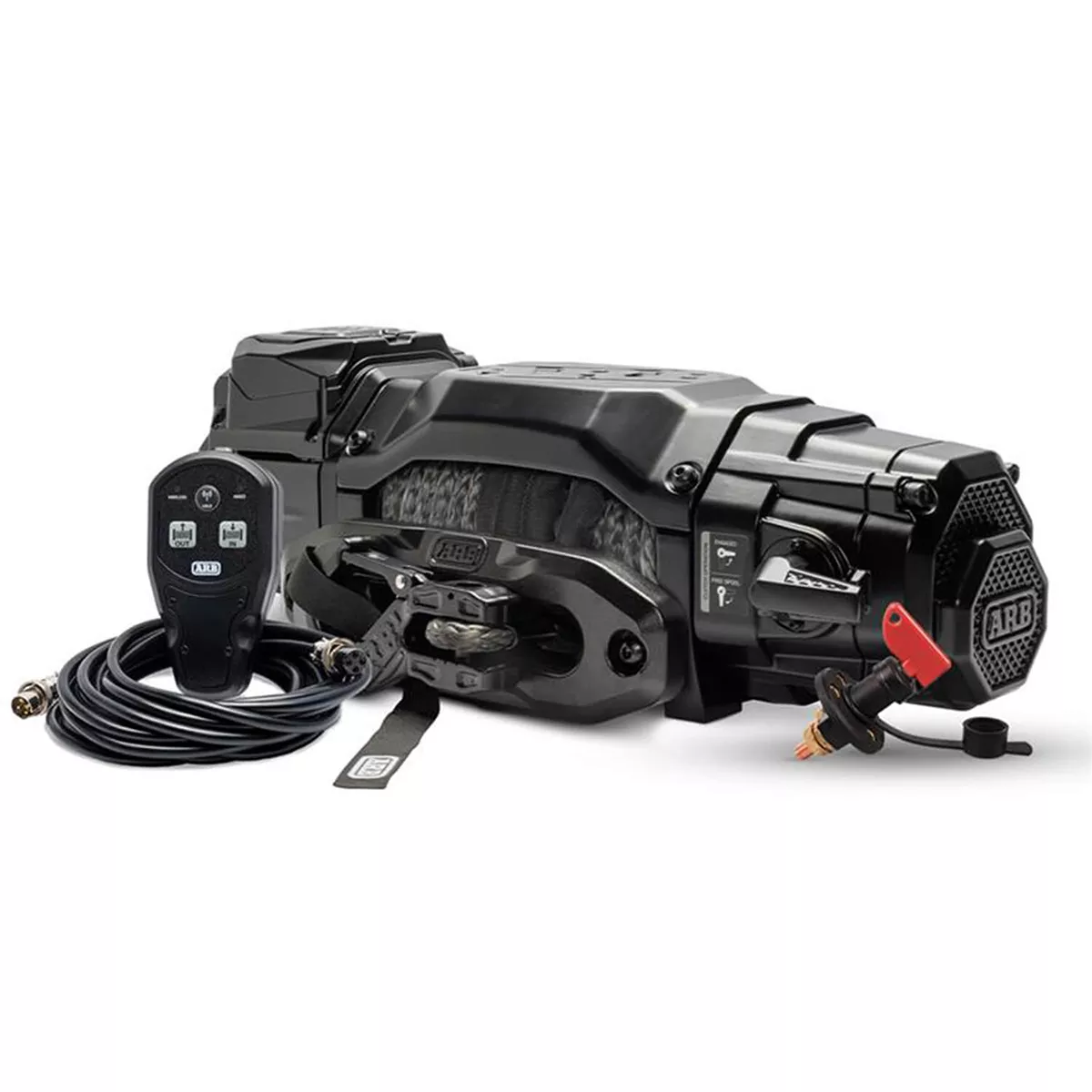

The ARB 12V 12,000 lb. Winch w/ Synthetic Rope (ARW120SA) from Nomadic Supply Company® is the ultimate recovery solution for adventurers who demand absolute reliability when the trail gets tough. Built with a focus on durability and long-term service life, every ARB 12V 12,000 lb. Winch w/ Synthetic Rope (ARW120SA) features top-tier components validated through rigorous testing. Whether you are navigating deep mud or technical rock crawls, our ARB 12V 12,000 lb. Winch w/ Synthetic Rope (ARW120SA) delivers consistent, heavy-duty performance in the harshest environments on Earth.
At its core, our ARB 12V 12,000 lb. Winch w/ Synthetic Rope (ARW120SA) combines a tuned 12V motor with a 4-stage hardened steel gearbox, providing an ideal balance of fast line speed and massive torque. With its integrated control box and IP68 rating, the ARB 12V 12,000 lb. Winch w/ Synthetic Rope (ARW120SA) offers a clean, low-profile fitment that integrates seamlessly with modern vehicle sensors and bumpers.
ARB 12V 12,000 lb. Winch w/ Synthetic Rope (ARW120SA) Features:
Superior Mechanical Build
- 4-Stage Hardened Steel Gearbox: Engineered for smooth operation under heavy load, optimizing torque transfer while maintaining efficiency.
- Tuned 12V Motor: A purpose-built series wound motor designed for high speed with lower current draw to minimize heat buildup.
- One-Piece Bridging Plate: Provides exceptional torsional rigidity to prevent binding under extreme stress.
- 16-Position Clockable Clutch: Offers maximum mounting flexibility to suit any bumper or hidden tray setup.
Integrated Control Technology
- Built-In Control Box: Features a custom direct-mount Albright contactor, reducing power loss and delivering up to 8% more pulling power.
- Compact All-in-One Design: Pre-wired connections simplify installation and ensure compatibility with modern vehicle safety sensors.
- IP68 Protection: Fully sealed against water and dust, ensuring your recovery gear works even when submerged.
Advanced Braking & Safety
- Zero Drag Braking System: The gearbox-mounted brake provides 100% load holding and allows for controlled unspooling under no load.
- Heat Protection: By moving the brake outside the drum, heat transfer to the synthetic rope is eliminated, preventing line degradation.
- 500A Power Isolation Switch: Includes a universal bracket and stainless lanyard to safely disconnect power when not in use.
Precision Dual-Connection Remote
- Wireless & Wired Versatility: Switch between a 2.4GHz wireless connection with a 40m range or a 5m wired lead for interference-free control.
- Remote-Mounted Plug: Allows for hidden winch mounting while maintaining an accessible port for the hardwired controller.
ARB 12V 12,000 lb. Winch w/ Synthetic Rope (ARW120SA) Specifications:
- RATED LINE PULL: 12,000 LBS (5,443kg)
- ROPE: 11mm x 24m Grey Synthetic
- FAIRLEAD: Forged 6061 Aluminum Hawse Fairlead
- FITTED WEIGHT: 76 LBS (34.5kg)
- MAX. LINE SPEED: 65 FT / MIN
- MOTOR: 5.7 HP
- ELECTRICAL CONTACTOR: Albright DC Contactor – 500 Amp
- BRAKE: Gearbox Mounted 100% Load Holding Proportional Friction Brake
- GEARBOX: 171:1 2-Stage Planetary and 2-Stage Spur
- WATERPROOF RATINGS: IP68 Winch Motor and Gearbox
- INCLUDES: Main Power Isolation Switch and Remote Mounted Control Plug
- WARRANTY: Limited Lifetime Warranty and 7-Year Electrical Warranty
ARB 12V 12,000 lb. Winch w/ Synthetic Rope (ARW120SA) Documents:
ARB 12V 12,000 lb. Winch w/ Synthetic Rope (ARW120SA) Owner’s Manual
