SKU: 7716 | UPC: 046074077166

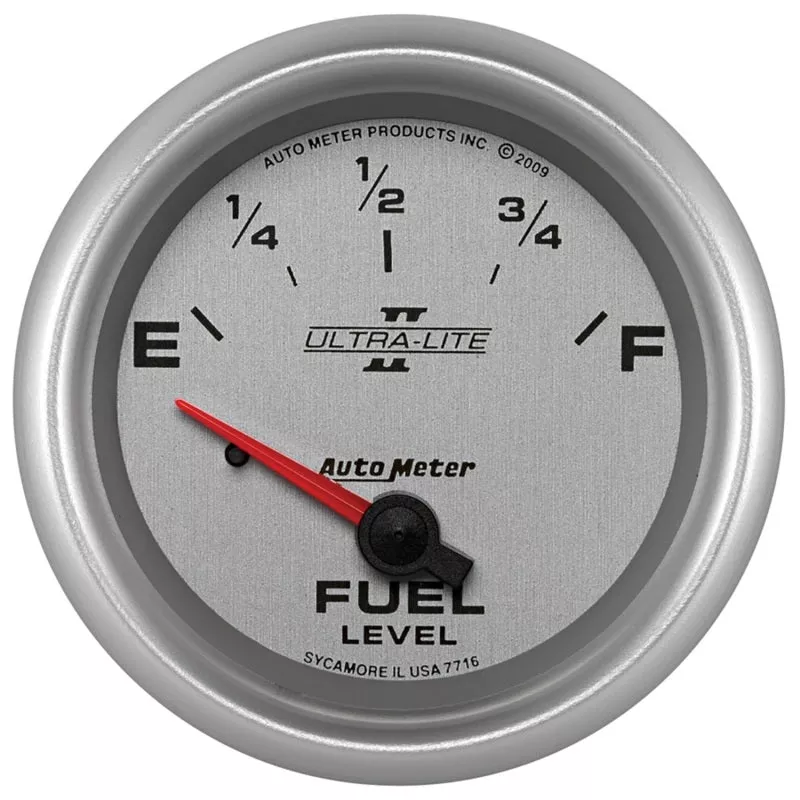

AutoMeter Gauge Fuel Level 2-5/8in. 240 Ohm(e) to 33 Ohm(f) Elec Ultra-Lite II – Universal
AutoMeter Ultra-Lite II fuel level gauge provides precise monitoring for setups with 240-33 Ohm sending units including aftermarket tanks and AutoMeter 3262 sender. This 2-5/8 inch electric gauge installs in custom performance cars race vehicles marine applications and non-baffled tanks. Patented air core movement with extra dampening delivers steady readings despite fuel slosh for dependable fuel management on track or street.
Key Features
- 240-33 Ohm Sweep: Directly compatible with aftermarket senders like AutoMeter 3262 for tanks 5 to 28 inches deep providing exact empty to full calibration.
- Air Core Movement: Patented design receives additional dampening to eliminate pointer bounce from fuel slosh in performance tanks.
- Ultra-Lite II Construction: Weighs only 0.75 lbs with black anodized aluminum housing for reduced panel stress and clean aesthetics.
- Illumination and Visibility: Incandescent white lighting with fluorescent red pointer and anti-reflective lens for clear day or night readings.
- Compact Size: 2-5/8 inch diameter fits standard gauge panels with 12V operation and included mounting hardware.
Product Notes
- Verify your fuel sender resistance range before purchase to ensure 240 Ohm empty and 33 Ohm full compatibility.
- Designed for 12V electrical systems common in automotive and marine performance setups.
- Ships ready to install with wiring harness and mounting brackets included.
Installation Notes
- Professional installation recommended.
- Connect to 12V switched ignition power black ground to chassis and sender signal wire per included diagram.
- Drill 2-5/8 inch hole in panel U-bracket mounting hardware provided for secure fit.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All Vehicles with 240-33 Ohm Sender | Incl. Custom Tanks AutoMeter 3262 |
Why Choose AutoMeter?
- Trusted since 1957 across NHRA NASCAR and street performance worldwide.
- Engineered for vibration resistance and long-term accuracy in harsh conditions.
- Backed by precision manufacturing for consistent performance in every gauge.
Frequently Asked Questions
- Q: What fuel senders work with this gauge?
A: Any sender with 240 Ohm at empty and 33 Ohm at full such as AutoMeter 3262 or equivalent aftermarket marine and tank units. - Q: What materials and finish are used?
A: Lightweight black anodized aluminum housing flat anti-reflective lens and durable polymer internals for corrosion resistance. - Q: What is the warranty and support?
A: Covered by AutoMeter 12-month limited warranty with technical support available for installation and troubleshooting.
