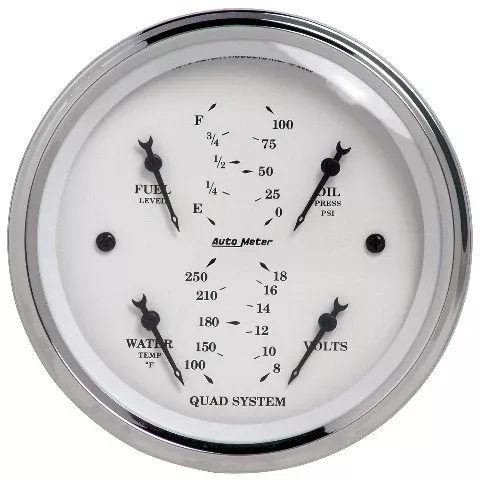

3-3/8in. QUAD GAUGE; 100 PSI/100-250 ° F/8-18V/240-33 O; OLD-TYME WHITE
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8 NPT temperature sender and a 1/8 NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter’s 3262 fuel level sender).
- Incandescent Lighting Illuminates Around Perimeter Of Dial
- Incl. Mounting Hardware/Instructions
- Air-Core Electric Instruments Provide Quick And Accurate Readings
- 4 in 1 Gauge Design Saves Valuable Real Estate
- 12 And 16V Compatible Well-Suited w/Electrical System
- Incl. 1/8 in. NPT Pressure Sender
- Incl. 1/4 in. NPT Adapter
- Incl. 1/8 in. NPT Temp Sender
- Incl. 3/8 And 1/2 in. NPT Adapters
- Incl. Bulb/Socket Assembly/Red And Green Bulb Covers
