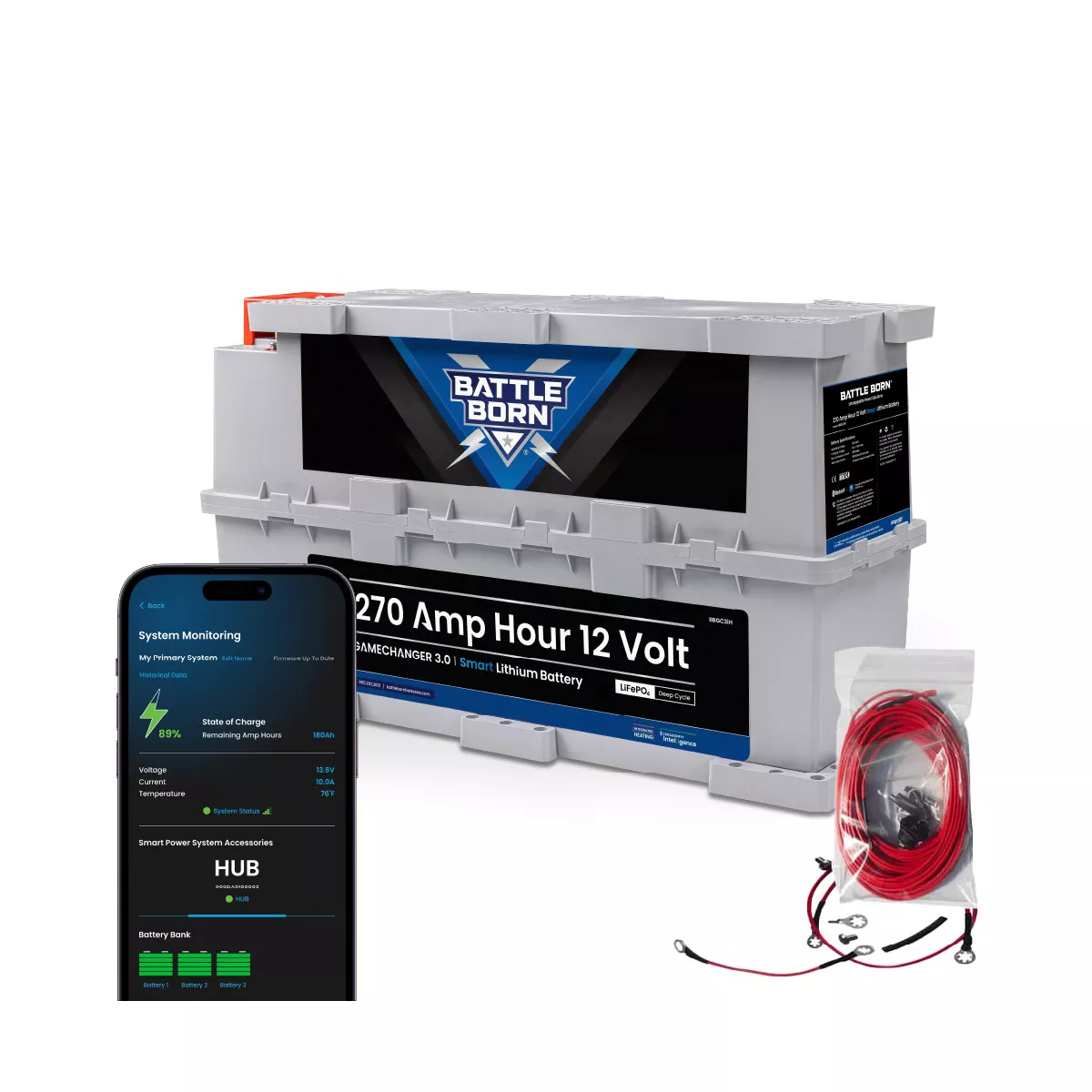

The Battle Born 270Ah 12V GC3 Self-Heating Lithium Battery (BBGC3iH-1KIT) from Nomadic Supply Company® is the ultimate Gamechanger – a safe, reliable, long-lasting, and intelligent power, no matter the weather you might face. Equipped with a proprietary, low-draw Integrated Heating technology, this smart battery is ready to charge and provide superior power, even in cold temperatures.
Offering all the same undeniable benefits the Battle Born 270Ah 12V GC3 Self-Heating Lithium Battery (BBGC3iH-1KIT) has brought to adventurers around the globe for nearly a decade, the 270Ah 12V GC3 Heated Smart Battery by Battle Born features smart battery technology that opens the doors to full power system connectivity, communication, and safety.
Battle Born 270Ah 12V GC3 Self-Heating Lithium Battery (BBGC3iH-1KIT) Features:
- Dragonfly IntelLigence® Technology delivers proprietary smart battery communication via a Wireless Mesh Network
- Remote Monitoring of individual batteries or full power system via the Battle Born Mobile App
- Battle Born HUB required for to take advantage of full system monitoring in multi-battery systems
- Error Detection & Warnings for the utmost safety through real-time notifications of critical information
- Integrated Heating Technology warms the battery’s internal cells in cold temperatures
- Battery Size that’s patented and proprietary for maximum power in any space
- Designed for Versatility with series or parallel wiring, any orientation mounting, and use in various RV, marine, industrial, and off-grid applications
- Safe, Non-Toxic lithium iron phosphate (LiFePO4) chemistry
- Internal BMS featuring protections for low temperature, high and low voltage, short circuits, and more
Internal Heat Technology:
- Proprietary internal heating capabilities
- Operating Temp Range:-4°F to 135°F
- Heat activated when internal temperature reaches ~35°F (and heat function is enabled)
Accepted Voltages:
- Charging voltage: 14.2 – 14.6 V
- Float voltage: 13.4 – 13.8 V
Dimensions (L x W x H):
- 22.83 x 7.09 x 13.15 in.
Ships With:
- 18-8 stainless steel 5/16 – 18 1” and 1-1/4” bolts
- Brass washers
- 18-8 stainless steel nuts with nylon inserts
Each GC3 Comes Standard With:
- (1) Black Terminal Cover
- (1) Red Terminal Cover
- (2) 25mm M5 Screws for Terminal Covers
Items in Each Heated Battery Kit Include:
- 1 -SPST Rocker Switch
- 1 -25’ 18 AWG wire terminated with 0.187 QD and 8 ring lug
- 1 -25’ 18 AWG wire terminated with 0.187 QD and 5/16 ring lug
- 1 – Jumper wire (For use if you are installing more than one heat-enabled battery model):
- 1 -14-inch 18 AWG wire terminated with two 8 ring lugs
- 2 -M4 x 5mm long Philip head screws
- 1 -8 ring lug
- 1 -1-inch piece of shrink wrap
Please Note: A CSL is required for use with inverters 3500W or higher.
