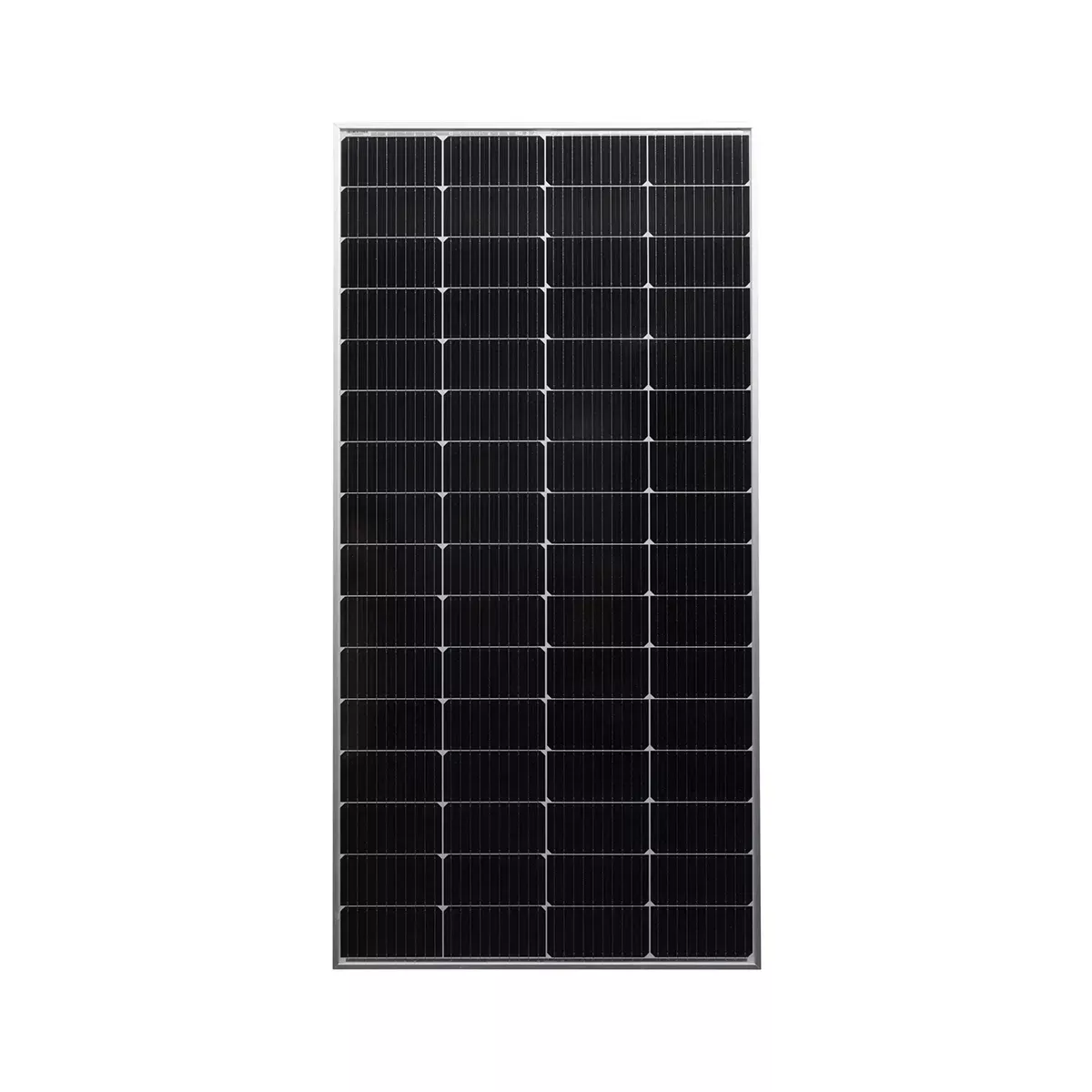

The Battle Born Elite 230 Watt 12V Monocrystalline Solar Panel (BBPV-12-230) from Nomadic Supply Company® is the sweet spot for medium-sized off-grid systems, offering a powerhouse of energy without reclaiming your entire roof. By pushing 23% module efficiency, our Battle Born Elite 230 Watt 12V Monocrystalline Solar Panel (BBPV-12-230) allows you to build a high-capacity array with fewer individual modules—saving you time on installation and leaving more room for gear.
Equipped with a specialized anti-shading cell design, our Battle Born Elite 230 Watt 12V Monocrystalline Solar Panel (BBPV-12-230) solves the biggest frustration of mobile solar: environmental obstructions. Whether it’s a stray cloud, a vent pipe shadow, or the low-hanging sun at dawn and dusk, our Battle Born Elite 230 Watt 12V Monocrystalline Solar Panel (BBPV-12-230) is engineered to keep your 12V system charging when others quit.
Battle Born Elite 230 Watt 12V Monocrystalline Solar Panel (BBPV-12-230) Features:
- Maximum Energy Density: Get significantly more wattage in the same footprint compared to standard modules.
- Intelligent Output: Anti-shading technology ensures steady energy production during clouds or partial shading.
- Heavy-Duty Build: Features an anodized aluminum frame and low-iron tempered glass for superior structural strength and light transmission.
- Extreme Weather Rated: Tested to withstand 5400 Pa snow loads and 2400 Pa wind loads, plus built-in UV and salt mist resistance for coastal adventures.
- Industry-Leading Support: Includes a 10-year workmanship warranty and a 25-year linear performance warranty for decades of reliable power.
Battle Born Elite 230 Watt 12V Monocrystalline Solar Panel (BBPV-12-230) Specifications:
- Maximum Power (Pmax): 230W
- Voltage at Pmax (Vmp): 18.37V
- Current at Pmax (Imp): 12.56A
- Open-Circuit Voltage (Voc): 21.57V
- Short-Circuit Current (Isc): 13.39A
- Temperature Coefficient of Voc: -(80±10)mV/°C
- Temperature Coefficient of Isc: (0.065±0.015)%/°C
- Temperature Coefficient of Power: -(0.5±0.05)%/°C
- NOCT (Air 20°C; Sun 0.8kW/m² Wind 1m/s): 47±2°C
- *NOCT: Nominal operating cell temperature (the data is only for reference)
- Operating Temperature: -40°F to 185°F (-40°C to 85°C)
- Maximum System Voltage: 1000V DC
- Power Tolerance: ± 5%
- Cells: Monocrystalline Silicon Solar Cell
- Number of Cells & Connections: 64 ( 4 x 16)
- Module Dimension: 59.84” x 30.12” x 1.38”
- Weight: 28.03 lbs.
- Packing Information (Carton): 61.61” x 31.89“ x 2.76”
Battle Born Elite 230 Watt 12V Monocrystalline Solar Panel (BBPV-12-230) Documents:
Battle Born Elite 230 Watt 12V Monocrystalline Solar Panel (BBPV-12-230) Data Sheet
