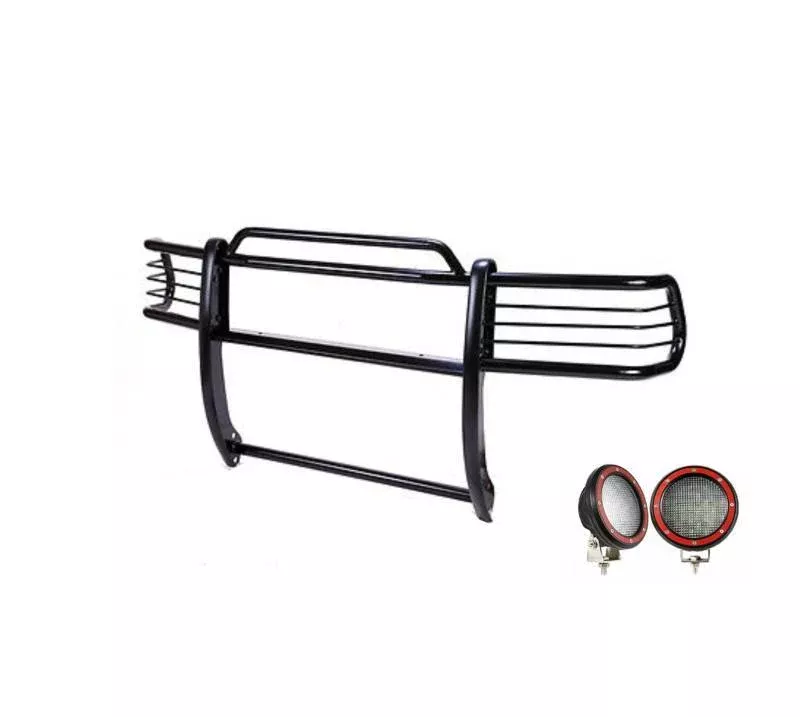

Durable modular grille guard with integrated lighting features
The Black Horse Grille Guard Kit is designed for robust front-end protection while enhancing visibility with integrated lighting. This modular grille guard features a welded 3-piece construction made from 1-1/2 inch diameter 16 gauge cold rolled mild steel tubing, ensuring durability and strength. The high-impact powder coat finish over a corrosion-resistant E-coat provides long-lasting protection against the elements.
Installation is straightforward with a solid frame-mounted bolt-on design that requires no drilling or cutting, making it accessible for various vehicle types. The removable front light guards allow for versatility in both street and off-road applications. Additionally, vertical vinyl straps are included to protect against minor bumps and scrapes, enhancing the guard’s functionality.
This grille guard kit also comes equipped with 5.3 inch round flood red trim LED lights, complete with a plug-in wiring harness and switch, providing added safety and visibility during nighttime driving. The combination of these features makes the Black Horse Grille Guard Kit a practical choice for those seeking to enhance their vehicle’s protection and functionality.
Features
- Welded 3-Piece Bolt-Together Construction
- Solid Frame-Mounted Bolt-On, No Drill Installation
- 1-1/2 Inch Diameter 16 Gauge Cold Rolled Mandrel Bent Mild Steel Tubing
- 1/4 Inch Thick HRPO Vertical Steel Plates
- High-Impact Powder Coat Topcoat Over Corrosion Resistant E-Coat
- Removable Front Light Guards For Street And Off-Road
- Vertical Vinyl Straps Protect From Minor Bumps And Scrapes
Specifications
- Manufacturer: Black Horse Offroad
- Manufacturer Part Number: 17TH26MA-PLFR
- Construction: 3-Piece Modular
- Tubing Diameter: 1-1/2 Inch
- Color/ Finish: Black Matte Powder Coated
- Material: Steel
- Drilling Required: No
- Cutting Required: No
- Brush Guard: With Brush Guard
- With Punch Plate: No
- Winch Mount: No
- With Light Mounts: Yes
- With Lights: Yes
- With Skid Plate: No
- Receiver Hitch: No
- Tow Hooks Option: No
- With Mounting Bracket: Yes
- Installation Type: Bolt-On
- Estimated Install Time (Hours): 2
Compatibility / Fit
- 2001-2005 Toyota RAV4
Technical Documents
- 17TH26MA-PLFR_Ins.pdf
