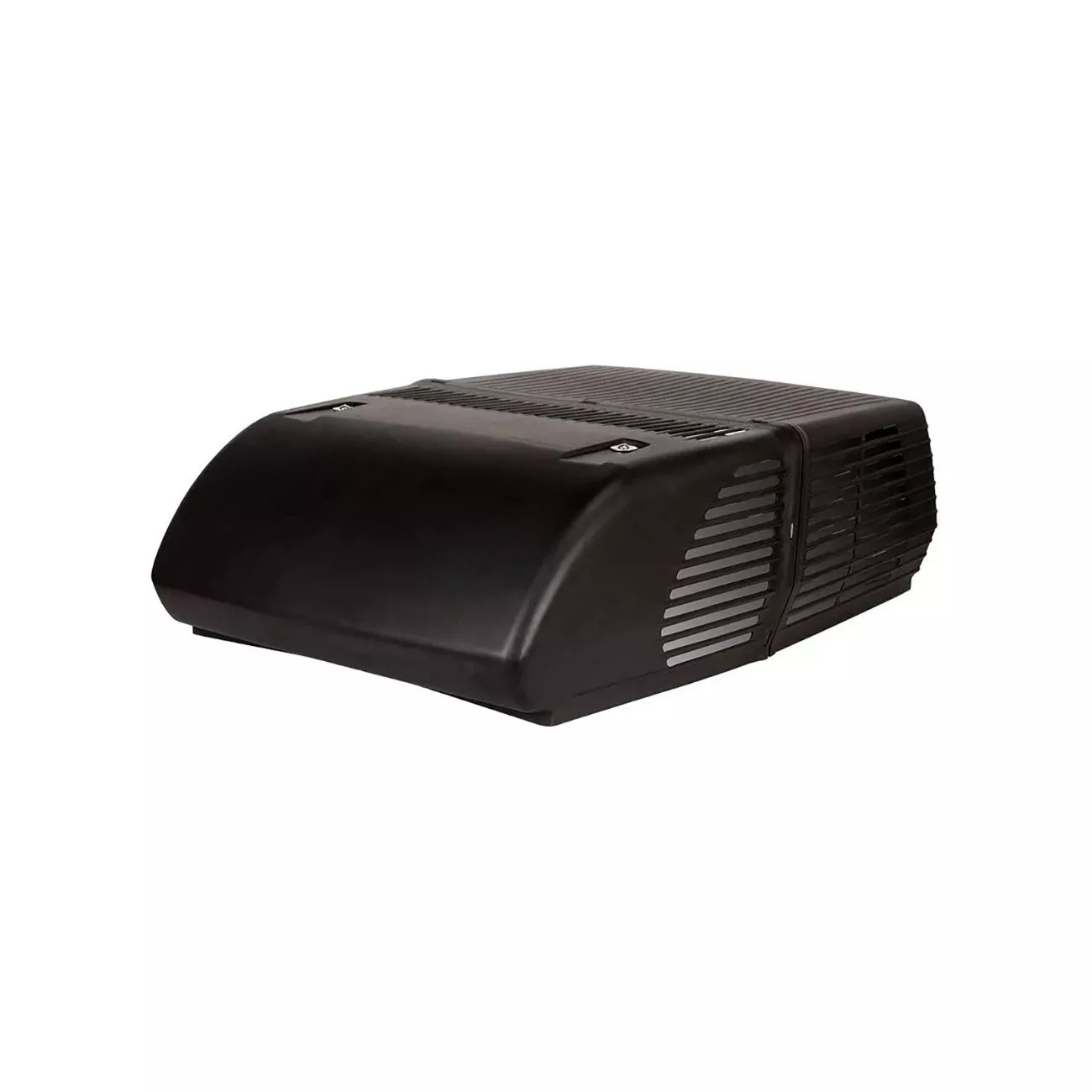

In an effort to create practical interior comfort on the road, we’re proud to offer the low-profile Coleman-Mach 10 Quiet 13,500 BTU Air Conditioner (35203-0793) from Nomadic Supply Company®. Standing at just over 11″ tall, the MACH 10 delivers the same superior cooling capacities and performance that you have come to expect from Coleman-Mach, making it an excellent choice for 5th wheels or taller units.
Standing at just 11″ tall, the Coleman-Mach 10 Quiet 13,500 BTU Air Conditioner (35203-0793) delivers the same superior cooling capacities and performance that you expect from Coleman-Mach, making it an excellent choice for 5th wheels or taller units.
Making everyone a “happy camper” can be a challenge sometimes, but keeping it comfortable and quiet is no problem for the Ducted or Non-Ducted Quiet Series Mach 10. Trust us – not all environments are created equally, so we must offer a unique series of effective, efficient, and quiet air conditioners. No matter which Coleman-Mach Quiet Series model you choose, you’ll enjoy the quiet, efficient cooling, undisturbed from when you turn it on.
PLEASE NOTE: The Coleman-Mach Air Conditioners have been upgraded to use R32 refrigerant due to its lower environmental impact and improved energy efficiency compared to the older model. R32 has a lower global warming potential (GWP), meaning it contributes less to climate change if released into the atmosphere. It also allows for more efficient heat transfer in air conditioning systems, potentially leading to lower energy bills. Please note the comparable upgraded R32 units in the chart below.
| Older Models | New R32 Models | |||
|---|---|---|---|---|
| Description | Old Coleman Part No. | Old CW Item No. | New Coleman Part No. | New CW Item No. |
| Mach 10 13,500 BTU AC Polished White | 45203-0753 | 133171 | 35203-0753 | 154346 |
| Mach 10 13,500 BTU AC Black | 45203-0793 | 121669 | 35203-0793 | 154345 |
| Product Name | Part | Profile | Color | Finish | Ducting | Height | Width | Length |
|---|---|---|---|---|---|---|---|---|
| Mach 10 Ducted Quiet | 35003-0794 | Low | Black | Textured | Ducted | 11.8 | 26.1 | 38.0 |
| Mach 10 Ducted Quiet | 35203-0754 | Low | White | Polished | Ducted | 11.8 | 26.1 | 38.0 |
| Mach 10 Ducted Quiet | 35203-0784 | Low | Black | Polished | Ducted | 11.8 | 26.1 | 38.0 |
| Mach 10 Non-Ducted Quiet | 35203-0753 | Low | White | Polished | Non-Ducted | 11.8 | 26.1 | 38.0 |
| Mach 10 Non-Ducted Quiet | 35203-0783 | Low | Black | Polished | Non-Ducted | 11.8 | 26.1 | 38.0 |
| Mach 10 Non-Ducted Quiet | 35203-0793 | Low | Black | Polished | Non-Ducted | 11.8 | 26.1 | 38.0 |
| Mach 10 Quiet PowerSaver | 35203-0993 | Low | Black | Textured | Non-Ducted | 11.8 | 26.1 | 38.0 |
| Mach 10 Quiet PowerSaver | 45203-0963 | Low | White | Textured | Non-Ducted | 11.8 | 26.1 | 38.0 |
Coleman-Mach 10 Quiet 13,500 BTU Air Conditioner (Black) (35203-0793) Features:
- Delivers Superior Cooling Performance
- Top And Down Mount Design
- Low-Profile Design
- Provides Practical Interior Comfort On The Road
- Limited 2-Year Warranty
Coleman-Mach 10 Quiet 13,500 BTU Air Conditioner (Black) (35203-0793) Specifications:
- Capacity: 13,500 BTU/hr.
- Fits 14″ x 14″ vent openings
- Installation: Non-ducted
- Electrical Rating: 115VAC, 60 Hz
- Ampere Rating: 10.4A
- Running Watts Standard: 1350
- Air Flow: 310 CFM
- Weight: 82 lbs.
- Shroud: 11.8″H x 26.1″W x 38.0″L
- Profile Type: Low Profile
- Cooling Capacity: 13.500 BTU
- Voltage: 120V AC
- Heat Pump: No
- Power Save: No
- With Ceiling Assembly: No
- Color: Textured Black
- Height: 11.8″
- Length: 38.0″
- Width: 26.2″
- Compressor Model: GMCC/Tecumseh
- Required 14″ x 14″ mounting hole size
- Ceiling Assembly is sold separately
- Mount: 14 Inch x 14 Inch Vent Openings
- AC System: Non-Ducted System
- Cooling Type: Refrigerant Cooling
- Function: AC Only
- Height: Low Profile – 11.8 Inch
- Voltage Rating: 115 Volt
- Color: Textured Black
- Ampere Rating: 9 Amp
- Evaporator Flow Rate: 265 CFM (Cubic Feet Per Minute)
- Without Condensate Pump
Coleman-Mach 10 Quiet 13,500 BTU Air Conditioner (Black) (35203-0793) Includes:
- Air Conditioner
- Gasket (pre-attached)
- Non-ducted mechanical ceiling assembly
Coleman-Mach 10 Quiet 13,500 BTU Air Conditioner (35203-0793) Does Not Include:
- Wall Thermostat
- Any ducted components (This is a non-ducted AC that must be controlled by the Coleman-Mach Air Conditioner Bluetooth Ceiling Assembly (9430-720)
Coleman-Mach 10 Quiet 13,500 BTU Air Conditioner (Black) (35203-0793) Documents:
Coleman-Mach Product Catalog from Nomadic Supply Company
