The Custom Marine Products 125W Walkable Semi-Rigid Solar Panel (CMP24125SRX-P) from Nomadic Supply Company® delivers exceptional power generation with its advanced SunPower A+ grade cells, achieving an impressive 24.4% conversion efficiency for marine and off-grid applications. This walkable semi-rigid panel combines durability with versatility, making the Custom Marine Products 125W Walkable Semi-Rigid Solar Panel (CMP24125SRX-P) perfect for boats, vans, and remote installations where space and weight are critical factors.
Engineered specifically for harsh marine environments, the Custom Marine Products 125W Walkable Semi-Rigid Solar Panel (CMP24125SRX-P) features a robust semi-rigid construction that can withstand foot traffic when properly supported. The lightweight fiberglass substrate and superior heat dissipation properties ensure optimal performance even in challenging hot climates, while the marine-grade build quality provides long-lasting reliability in saltwater conditions.
With its comprehensive mounting hardware and detailed owner’s manual, the Custom Marine Products 125W Walkable Semi-Rigid Solar Panel (CMP24125SRX-P) offers professional-grade solar power generation backed by a five-year warranty. The compact 27.6″ x 35.6″ dimensions and 9.7-pound weight make installation straightforward across various platforms, from recreational vehicles to marine vessels requiring dependable renewable energy solutions.
Custom Marine Products 125W Walkable Semi-Rigid Solar Panel (CMP24125SRX-P) Features:
- 125 Watts of Reliable Power: Efficient charging for marine and van applications.
- SunPower A+ Grade Cells (24.4% Efficiency): Industry-leading solar conversion for maximum output.
- Excellent performance: in both full and partial sun.
- Walkable Semi-Rigid Build: Strong enough to be safely walked on when properly supported.
- Heat Dissipation Advantage: Performs better in hot climates.
- Marine-Grade Durability: Built to withstand harsh saltwater and outdoor environments.
- Lightweight & Easy to Mount: Ideal for boats, vans, and off-grid systems.
- Versatile Mounting Options: Ideal for marine, van, camper, and off-grid installations.
- 5-Year Warranty: Peace of mind with long-lasting protection.

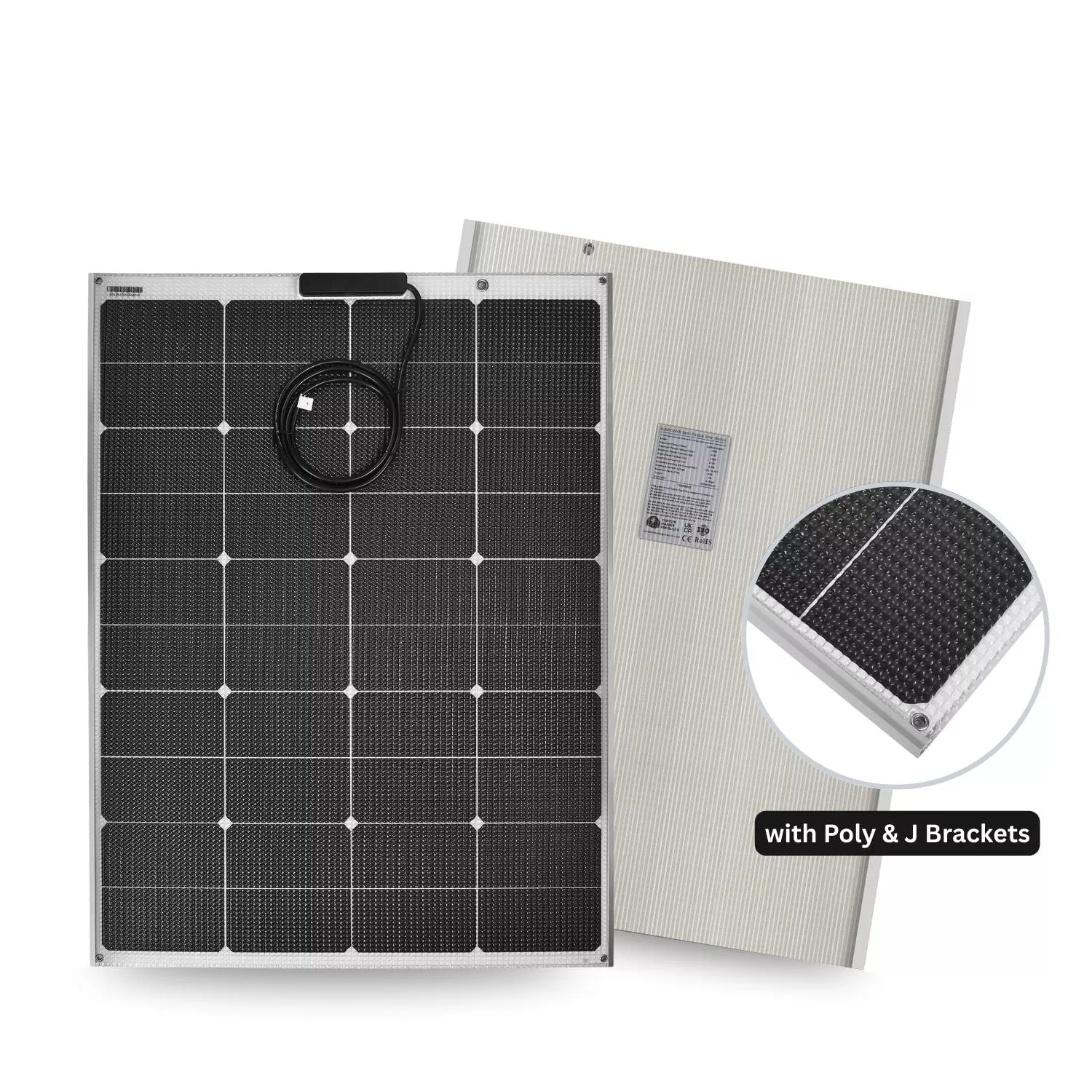

Custom Marine Products 125W Walkable Semi-Rigid Solar Panel (CMP24125SRX-P) Includes:
- PV solar panel module
- Sheet of twin wall polycarbonate backing
- Two J channel mounting extrusions
- Owner’s Manual
Custom Marine Products 125W Walkable Semi-Rigid Solar Panel (CMP24125SRX-P) Specifications:
- Model: CMP24125SRX-P
- Rated Power: 125 Watts
- Peak Power Voltage (Vmpp): 22.8 Volts
- Peak Power Amps (Impp): 5.5 Amps
- Open Circuit Voltage (Voc): 27.8 Volts
- Short Circuit Current (Isc): 5.9 Amps
- Cell Conversion Efficiency: 24.4%
- Dimensions: 27.6″ x 35.6″, 700 x 905 x 4 mm
- Weight: 9.7 lbs, 4.4 kgs
- Substrate: Lightweight Fiberglass
- Background Color: White
- Cell Layout: 4 x 10 (10 are half cells)
- Warranty: 5 years
Custom Marine Products 125W Walkable Semi-Rigid Solar Panel (CMP24125SRX-P) Documents:
Custom Marine Products 125W Walkable Semi-Rigid Solar Panel (CMP24125SRX-P) Wiring Diagrams
Custom Marine Products 125W Walkable Semi-Rigid Solar Panel (CMP24125SRX-P) Solar Controller Sizing
Custom Marine Products 125W Walkable Semi-Rigid Solar Panel (CMP24125SRX-P) Solar Panel Do’s Don’ts
Custom Marine Products 125W Walkable Semi-Rigid Solar Panel (CMP24125SRX-P) Walk-on Panel Guide Marine
