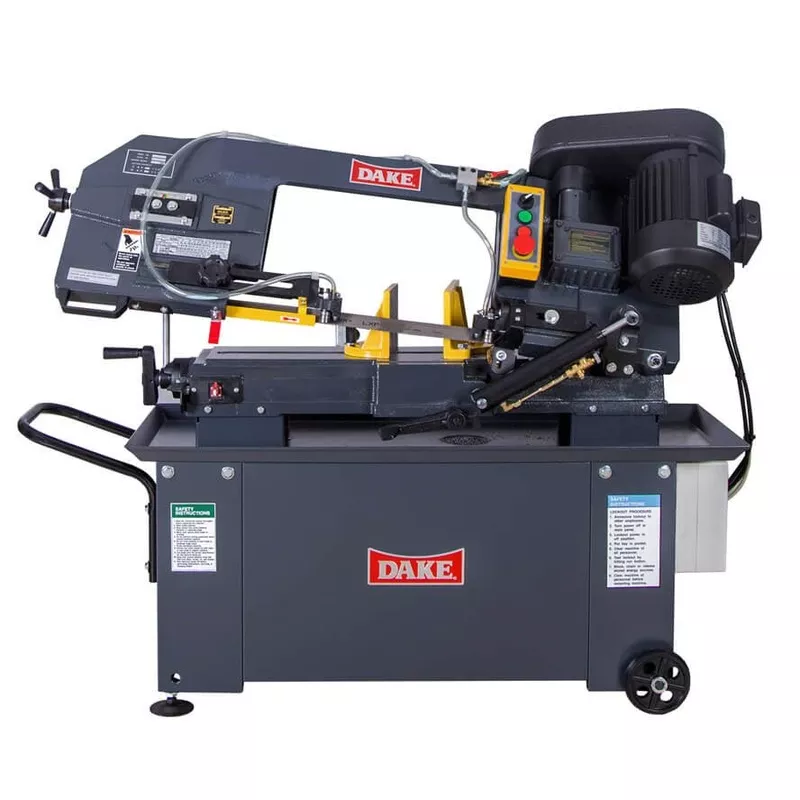

Dake SE912 Standard Duty Bandsaw
Standard Duty horizontal bandsaw offering accurate cutting, rugged gear box, hydraulic control, chip brush blade cleaner, and wet or dry cutting with simple operation. 1″ blade, and 9 rounds, 9 x 12 flats.
Features:
- Accurate cutting with vibration free cast/machined table bed, heavy steel base, horizontally mounted guide arms, and adjustable blade guides and rollers.
- CE approved low voltage safety reset, thermo overload protection, auto shut off, blade guards, safety interlocks.
- Quick release vise and hand wheel action for fast change of material sizes.
- Wet/dry cutting
- Hydraulic control for head feed at variable rates and to lock head at any height.
- Convenient chip brush blade cleaner, storage in base and wheels that roll easily.
Standard Equipment:
- Recirculating Coolant System
- Steel Base with Wheels
- Low Voltage Controls
Specifications:
- Model | SE912
- Number | 983101
- Capacity | 9 Rounds, 9 x 12 Flats
- Horsepower |1
- Voltage | 110V, Single Phase
- Maximum Blade Speed | 328 fpm
- Blade Width | 1″
- Blade Length | 104.5″
- Blade Speeds | 98/164/246/328 fpm
- Solid Round 90 Capacity | 9″
- Solid Round 45 Right Capacity | 3 1/2″
- Solid Round 60 Right Capacity | n/a
- Solid Square 90 Capacity | n/a
- Solid Square 45 Right Capacity | n/a
- Solid Square 60 Right Capacity| n/a
- Solid Rectangle 90 Capacity | 9″ x 12″
- Solid Rectangle 45 Right Capacity | 3-1/2″ x 7-1/2″
- Solid Rectangle 60 Right Capacity | n/a
- Bed Work (area) | 24-1/2″ x 9″
- Weight | 500 lbs
- Height | 59″
- Floor Space | 56″ x 21″
- Floor Space Left to Right | 56″
- Floor Space Front to Back | 21″
- Floor To Bed | 21-3/4″
