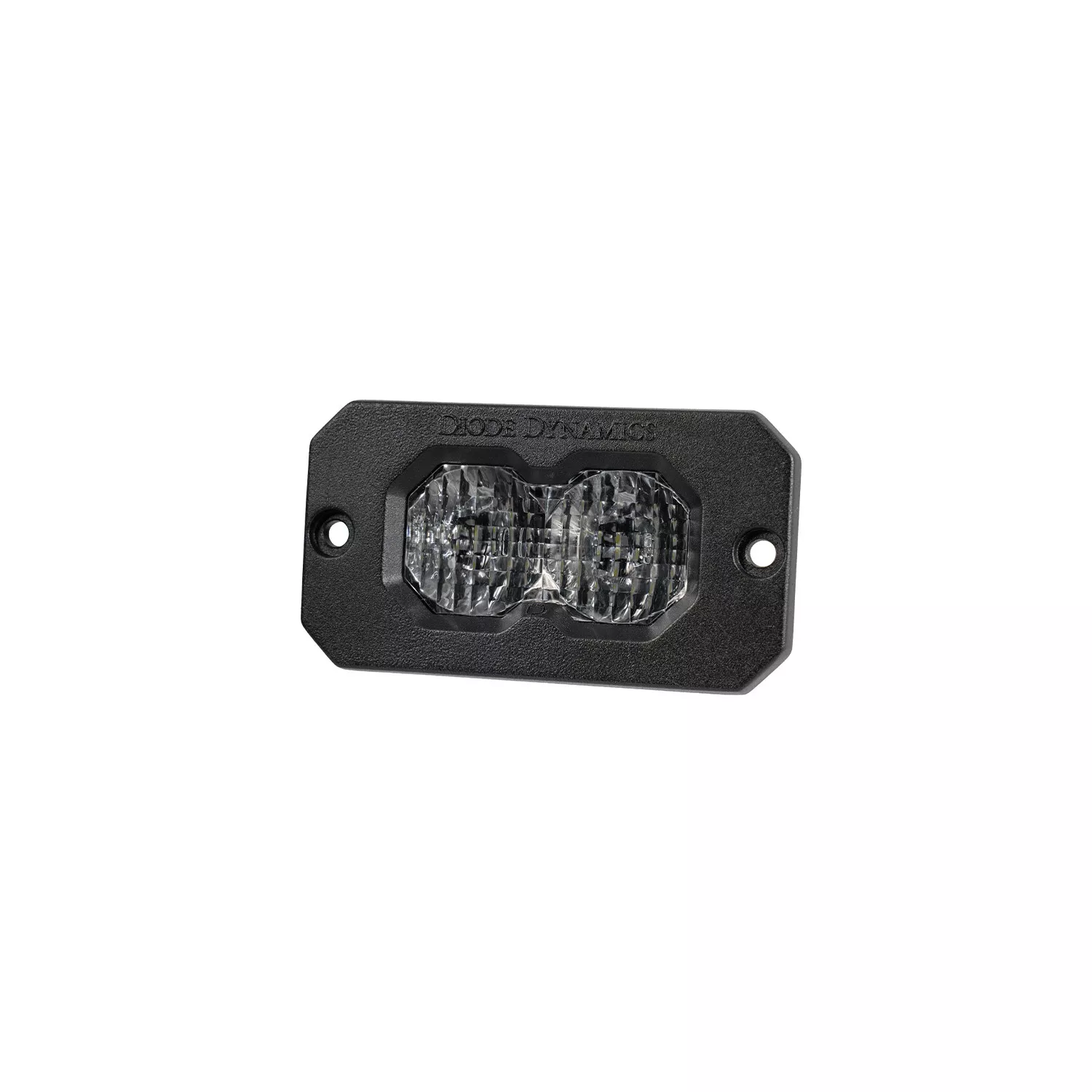

The Diode Dynamics C2 2.0 Sport LED Pod White Combo/Driving Flush RBL (Single) (DD8122S) from Nomadic Supply Company® is a fully re-engineered compact Sport 2-inch LED pod from Diode Dynamics featuring a redesigned 55°×20° Combo/Driving beam pattern in cool white 6000K that delivers a practical blend of driving distance & usable width — the all-purpose workhorse of the C2 2.0 lineup & ideal for roof racks, ditch lights & A-pillars. Built on a new copper-core circuit board with redesigned TIR optics, the C2 2.0 delivers up to 120% more intensity than the original C2 in the same compact 2-inch form factor.
Diode Dynamics C2 2.0 Sport LED Pod White Combo/Driving Flush RBL (Single) (DD8122S) Features:
- Re-Engineered TIR Optics. The C2 2.0 uses Diode Dynamics’ patented TIR (Total Internal Reflection) optics, redesigned from the ground up to deliver up to 120% more intensity than the original C2 — capturing virtually all of the LED’s output & directing it precisely where you need it with no wasted light or glare.
- Combo/Driving Beam Pattern. The redesigned Combo/Driving optic uses a uniform pillow-optic surface to cast a 55°×20° rectangular beam pattern, solving the visual mismatch of side-by-side pods & delivering a practical blend of width & driving distance. The all-around pattern for ditch lights, A-pillars & roof racks.
- Cool White Output. The 6000K Cool White emitter delivers a crisp, bright white beam for maximum road illumination. All C2 2.0 pods use the same 6000K emitter regardless of color — output color is set by the lens — making it easy to swap between white & yellow with a simple lens change.
- Sport Power Level. The Sport tier uses high-intensity automotive-grade LED emitters & TIR optics to deliver strong real-world output at the best value per dollar in the C2 2.0 lineup — the ideal choice for ditch lights, A-pillars & any build where proven performance meets a sensible budget.
- Flush Mount. The Flush mount integrates the pod directly to the mounting surface for a sleeker, lower-profile appearance with no visible adjustment bracket extending outward. Three mounting-hole positions allow vertical height adjustment while keeping the pod flush-mounted on light bars, roof racks & surface mounts.
- Red Backlight (RBL). The Red backlight fully illuminates the TIR optic housing in red when the pod is powered on, matching OEM taillights for a factory-integrated look on rear-facing pods & providing enhanced rear visibility. Ideal for pods mounted on tailgates, roof racks & hitch mounts facing rearward.
- CrossLink Compatible. The C2 2.0 is compatible with Diode Dynamics’ patent-pending CrossLink system, allowing multiple pods to link together seamlessly into a custom lightbar configuration — no special adapters required. CrossLink mounting accessories are available separately.
- Swappable Optics & Colors. All C2 2.0 pods share the same 6000K emitter & lens mount — switching beam pattern or light color is a simple lens swap with no tools. Snap-on covers in clear, amber, yellow, smoked & black are available separately for added protection or customization.
- Proven Reliability. Every C2 2.0 is tested to SAE standards for moisture intrusion, vibration & long-term operation from -40°F to 185°F — the same standards applied to factory automotive components — then validated on trail & on the racetrack by Diode Dynamics’ own team.
- Simple Wiring. Each pod ships with a 6″ pigtail & bare leads terminating in a Deutsch DT-style connector for a weatherproof, vibration-resistant connection. Compatible with all Diode Dynamics Stage Series wiring harnesses.
- Quantity. This listing is for one (1) C2 2.0 LED pod. Wiring harness & mounting hardware sold separately.
- Limited Lifetime Warranty. Backed by Diode Dynamics’ limited lifetime warranty. Designed, engineered & assembled in St. Charles, Missouri, USA using globally sourced components — SAE-compliant from the factory.
Diode Dynamics C2 2.0 Sport LED Pod White Combo/Driving Flush RBL (Single) (DD8122S) Specifications:
- Power Level: Sport
- Color Output: Cool White (6000K emitter)
- Beam Pattern: Combo/Driving — 55°×20°
- Backlight: Red (RBL)
- Mounting: Flush mount
- Input Voltage: 9–30V
- Operating Temperature: -40°F to 185°F
- Connector: Deutsch DT-style, 6″ pigtail with bare leads
- Warranty: Limited Lifetime
- Quantity: 1 pod
- Part Number: DD8122S
Diode Dynamics C2 2.0 Sport LED Pod White Combo/Driving Flush RBL (Single) (DD8122S) Documents:
Diode Dynamics C2 2.0 Sport LED Pod White Combo/Driving Flush RBL (Single) (DD8122S) Info Guide
Diode Dynamics Stage Series C2 2.0 Flush Mount Installation Guide
