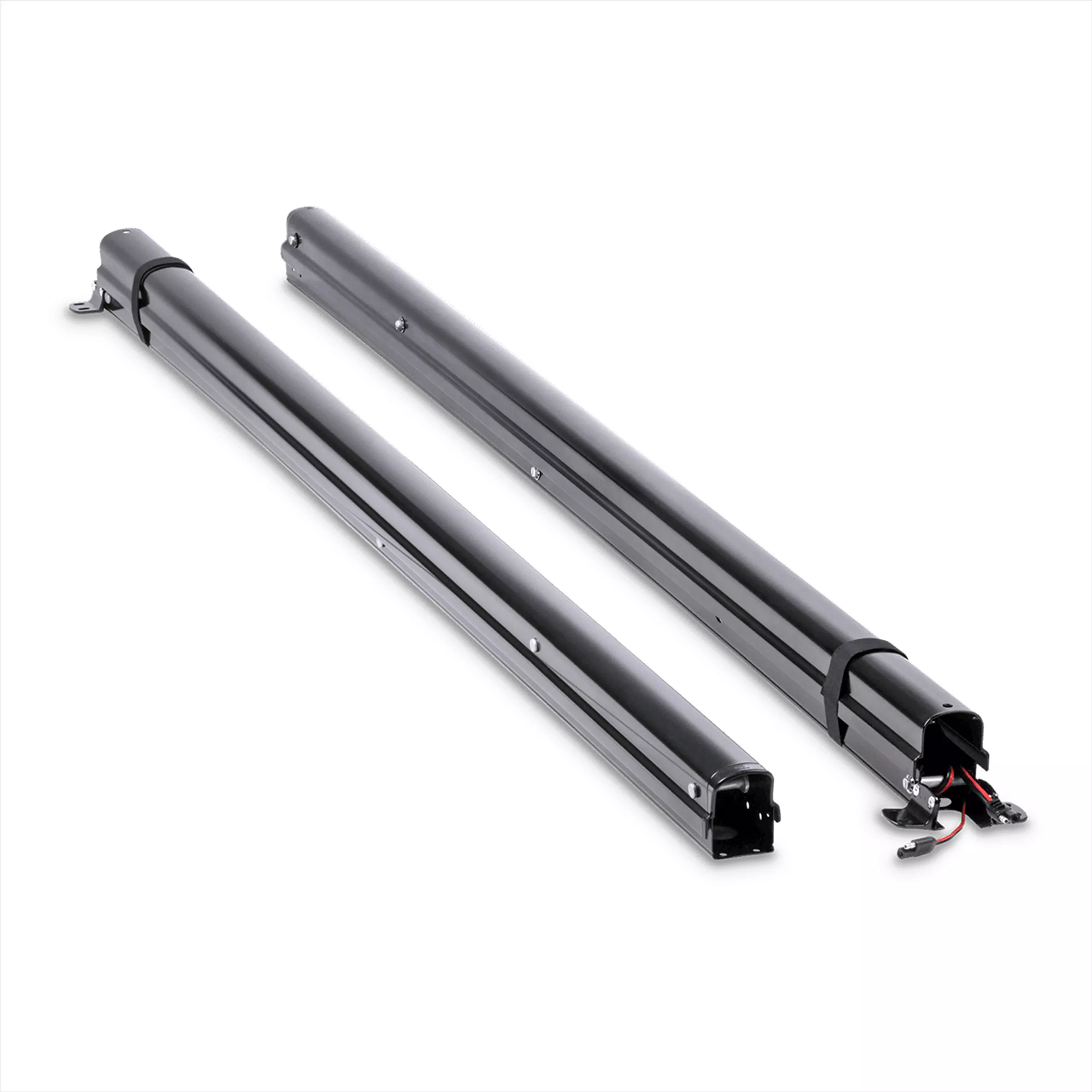

The Dometic 9100 Power Awning Arm Hardware Kit (Black) (9108853270) from Nomadic Supply Company® is a set of left and right awning arm hardware for use with Dometic 9100 Power Awnings (910, 915 & 917 Models).
The Dometic 9100 Power Awning Arm Hardware Kit (Black) (9108853270) extension arms are a crucial component of the awning system. Their function is to provide support and tension to the awning fabric, ensuring that it remains taut and stable during use. The extension arms mount to the RV sidewall and extend outward to support the awning fabric roller tube assembly. When the awning is extended, the Dometic 9100 Power Awning Arm Hardware Kit (Black) (9108853270) helps to support the weight of the fabric and prevent it from sagging or flapping in the wind. They also provide a stable base for the awning, allowing you to enjoy shade and protection from the elements in comfort.
Note:Dometic explicitly states that their hardware may appear glossy or matte, or possibly both within the same hardware set (left and right arm). Dometic uses two different paint suppliers, so variations are expected. Dometic does not consider this variation defective and will not offer you an exchange.
The hardware back channel may have a slight bow due to the manufacturing process. However, this should not be considered a defect, and upon installation, the hardware will sit flat against the RV. The awning arm hardware is specifically designed to be lightweight and to rely on the strength of the RV’s surface for support.
Adjustable Pitch The pitch adjustment feature of the awning can help to provide better shade or protection from the sun, especially during the morning or late afternoon when the sun is lower in the sky. It can also help to prevent rainwater from pooling on the surface of the awning. To adjust the pitch of the awning, you loosen the knob located on the adjustable arm to move the arm up or down to change the angle of the awning. After you have set the pitch to the desired angle, you can tighten the knob to secure the arm in place. Gas Strut Support The arms are equipped with a gas strut designed to provide tension and support to the awning when it is extended. The gas strut creates tension on the awning and helps to keep it in place, even in windy conditions. Additionally, it helps to distribute the weight of the awning and prevent stress on the extension arms and other parts of the RV. Standard Style The standard style awning arms are widely used in RVs nowadays, and they come with standard lengths for both the back channel and front channel. They also have a standard pivot point that results in a 13-1/4″ drop of the awning when extended.
The hardware back channel may have a slight bow due to the manufacturing process. However, this should not be considered a defect, and upon installation, the hardware will sit flat against the RV. The awning arm hardware is specifically designed to be lightweight and to rely on the strength of the RV’s surface for support.
Dometic 9100 Power Awning Arm Hardware Kit (Black) (9108853270) Specifications:
- Back Channel Length: 65-5/8″
- Front Channel Length: 64-7/8″
- Lower Pivot Height: 30-5/16″
- Projection with Awning: 91-1/2″
- Extension Pitch Drop: 13-1/4″
- SKU number: 9108853270
- Model on label: 8952002.400UL
- Product Description: Fits 910, 915 & 917 Models – Bottom Wire Exit, Black – Standard
- Dimensions product depth, [“]: 3 1/2
- Dimensions product height, [“]: 66 1/8
- Dimensions product width, [“]: 2 3/4
- Nominal Width, [‘]: 2
- Net weight, [lbs]: 27
- Color: Polar
- Drive assembly operation type: N/A
- EAN-13: 713814232108
- Dimensions parcel depth, [“]: 78
- Dimensions parcel height, [“]: 5 1/2
- Dimensions parcel width, [“]: 8 3/8
- Parcel weight, [lbs]: 27
Dometic 9100 Power Awning Replacement Parts:
513 – Dometic Sport Power Hardware Fastener Pack – Item: 3310458.074
520 – Dometic Power Awning Accessory Pull Strap 90.50 – Item: 3311862.019
536 – Dometic Power Patio Awning Right-Hand Standard Hardware, Polar White – Item: 3312487.006B
550 – Dometic Power Awning Standard Wire Cover Kit Power Awning Standard Wire Cover Kit – Polar White Item: 9108557248 (3312492.006B)
554 – Dometic Power Hardware Bushing Kit – Item: 3311753.000
555 – Dometic Power Hardware Pin Kit – Item: 3311754.000
573 – Dometic Power Patio Awning Left-Hand Standard Hardware, Polar White – Item: 3312487.022B Replaced by: 3312487.006B
616 – Dometic Awning Hex Cap Screw Kit 6-20 x 0.44 (Pack of 10) – Item: 3311579.002
617 – Dometic Awning Oscar Rivet Kit 3/16 x 1 – Silver (Pack of 10) – Item: 3311579.016 Replaced by: 9108538808
618 – Dometic Awning Screw Kit 1/4 – 20 x 0.75, Stainless Steel (Pack of 10) – Item: 3311579.071
621 – Dometic Awning Hex Head Washer Screw Kit 14-10 x 1.50 (Pack of 10) – Item: 3311579.030
622 – Dometic 1/4 Washer Split Kit, Stainless Steel (10 Pack) – Item: 3311579.000
720 – Dometic Power Awning Standard Pitch Arm Assembly Kit, Polar White – Item: 3312508.017B
721 – Dometic Power Hardware Pitch Adjustment Knob Kit – Item: 3312509.007 Replaced by: 3317127.000
730 – Dometic Power Awning Front Channel Cover Power Awning Front Channel Cover – Polar White Item: 9108557304 (3312821.006B)
732 – Dometic 9100 Power Hardware Top Bracket Kit, 2 per, Polar White – Item: 3310452.036B
