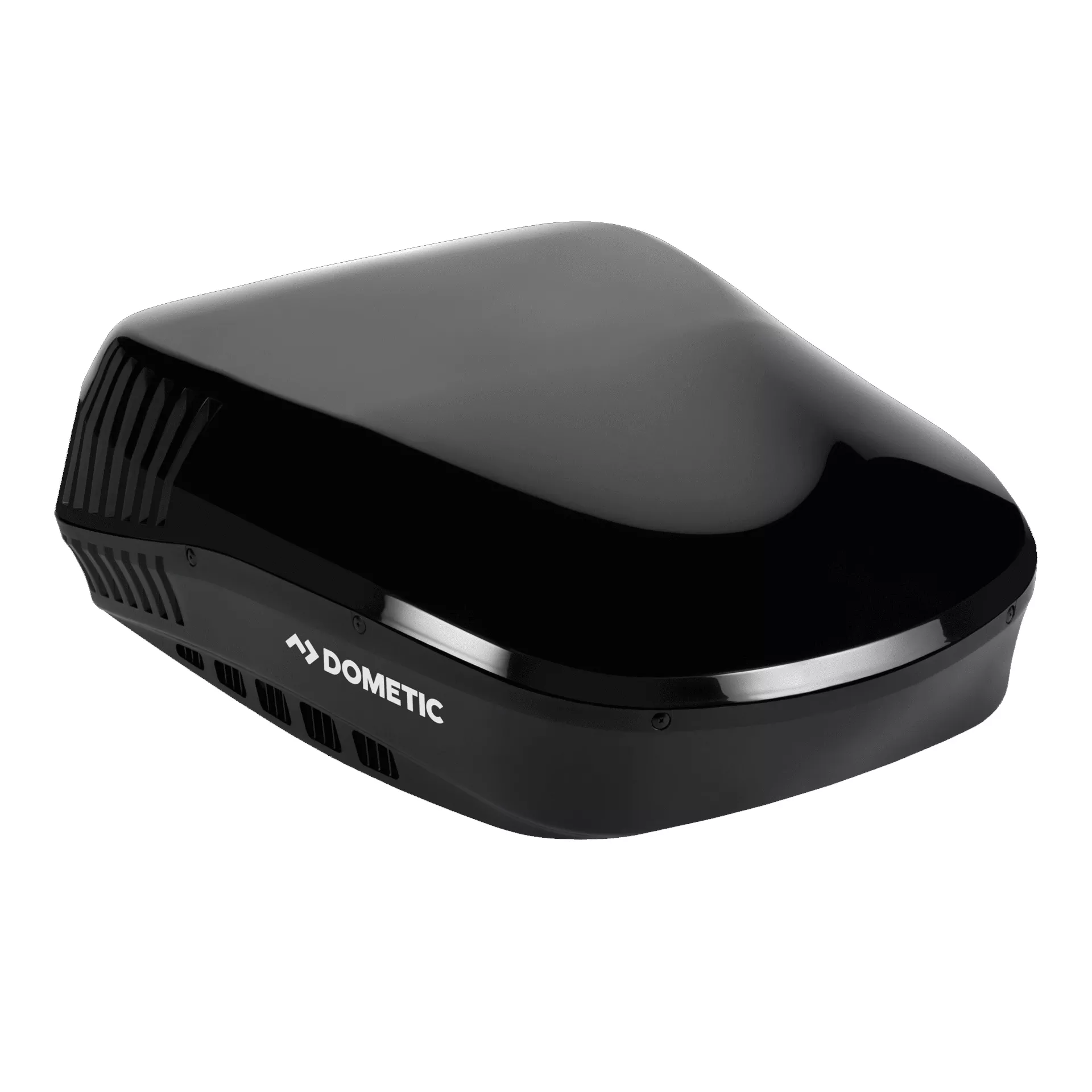

The Dometic Blizzard NXT 15K 15,000 BTU RV Air Conditioner (Black) (9105305954) from Nomadic Supply Company®
Nomadic Supply Company Dometic Catalog
Dometic Blizzard NXT 15K 15,000 BTU RV Air Conditioner (Black) (9105305954) Installation & Operating Manualr
r
Owner’s Manual keeps you cool and comfortable no matter where your adventures take you. The streamlined, aerodynamic design resists air drag and cuts down on fuel costs.
The Dometic Blizzard NXT 15K 15,000 BTU RV Air Conditioner (Black) (9105305954) is sleek and aerodynamic, with a composite base pan and injection-molded shroud that are both UV stable and rated for high impact resistance. The Dometic Blizzard NXT 15K 15,000 BTU RV Air Conditioner (Black) (9105305954) was stringently tested for durability in the most extreme environmental conditions. Keeping you cool, wherever you go!
Designed from the ground up, the Dometic Blizzard NXT 15K 15,000 BTU RV Air Conditioner (Black) (9105305954) has a powerful motor and fan, providing industry-leading 350 CFM airflow and advanced engineering that maximizes airflow around the evaporator coils for better and more efficient cooling performance. Expanded polypropylene (EPP foam) construction provides better insulation, reduces weight and unwanted condensation. Use of heavy sheet metal is minimized to improve performance and eliminate noise issues.
Air conditioning inside an RV has become a basic amenity that owners consider part of the standard-build landscape. Almost all RVs are equipped with at least one rooftop air conditioner. The Dometic Blizzard NXT 15K 15,000 BTU RV Air Conditioner (Black) (9105305954) features numerous improvements in exterior design, insulation and efficiency. Strategically placed foam insulation and an integrated blower housing minimizes heat transfer so cooler air is produced and maintained. Improvements to the evaporator, condenser, fan and blower wheel all helped with the overall positive experience. Noise and vibration were also big considerations in the revamp of this product, and improvements to the base pan get a big portion of the credit. Owners will appreciate the Blizzard’s cooling and power efficiency, and enjoy the indoor experience, even when outside temperatures soar.
Dometic Blizzard NXT 15K 15,000 BTU RV Air Conditioner (Black) (9105305954) Features:
- Attractive aerodynamic design
- Vibration isolation minimizes compressor noise
- Efficient high-capacity air conditioning and heat pump models
- Robust and durable construction
- Inside ceiling assembly and/or thermostat sold separately
- High-impact polypropylene injection-molded shroud and base pan
- High capacity output fan & motor design with 350 CFM blower
- Thermostat Zones: Single
Dometic Blizzard NXT 15K 15,000 BTU RV Air Conditioner (Black) (9105305954) Specifications:
- SKU number: 9105305954
- Model: 15K Btu with Control Box
- Model on label: H541916AXX1J0
- Scope of delivery: 1 Air conditioner, 1 Warranty card, 1 Registration card
- Cool Only or Heat Pump: Cool Only
- Product Description: 15,000 BTU – Rooftop Mid-Profile Air Conditioner – Pre-installed Single Zone CT control board – Non-Ducted application: air distribution box and CT thermostat required – Ducted application: return air grille and CT thermostat required – black
- Thermostat Zones: Single
- Dimensions product depth, [“]: 40
- Dimensions product height, [“]: 13.70
- Dimensions product width, [“]: 30
- Net weight, [lbs]: 91.51
- Input voltage (AC), [V]: 115
- Input voltage (DC), [V]: 12
- Input frequency, [Hz]: 60
- Required AC circuit protection min, [A]: 20
- Required AC circuit protection max, [A]: 25
- Cooling capacity (ISO 5151), [W]: 4396.07
- Cooling Capacity, [Btu/h]: 15000
- Power consumption – Cooling mode (ISO 5151), [W]: 1767
- Color: Black
- Thermostat control: No Thermostat
- Certificates: CSA
- EAN-13: 0713814214166
- Dimensions parcel depth, [“]: 45.08
- Dimensions parcel height, [“]: 15.35
- Dimensions parcel width, [“]: 32.28
- Parcel weight, [lbs]: 104.74
