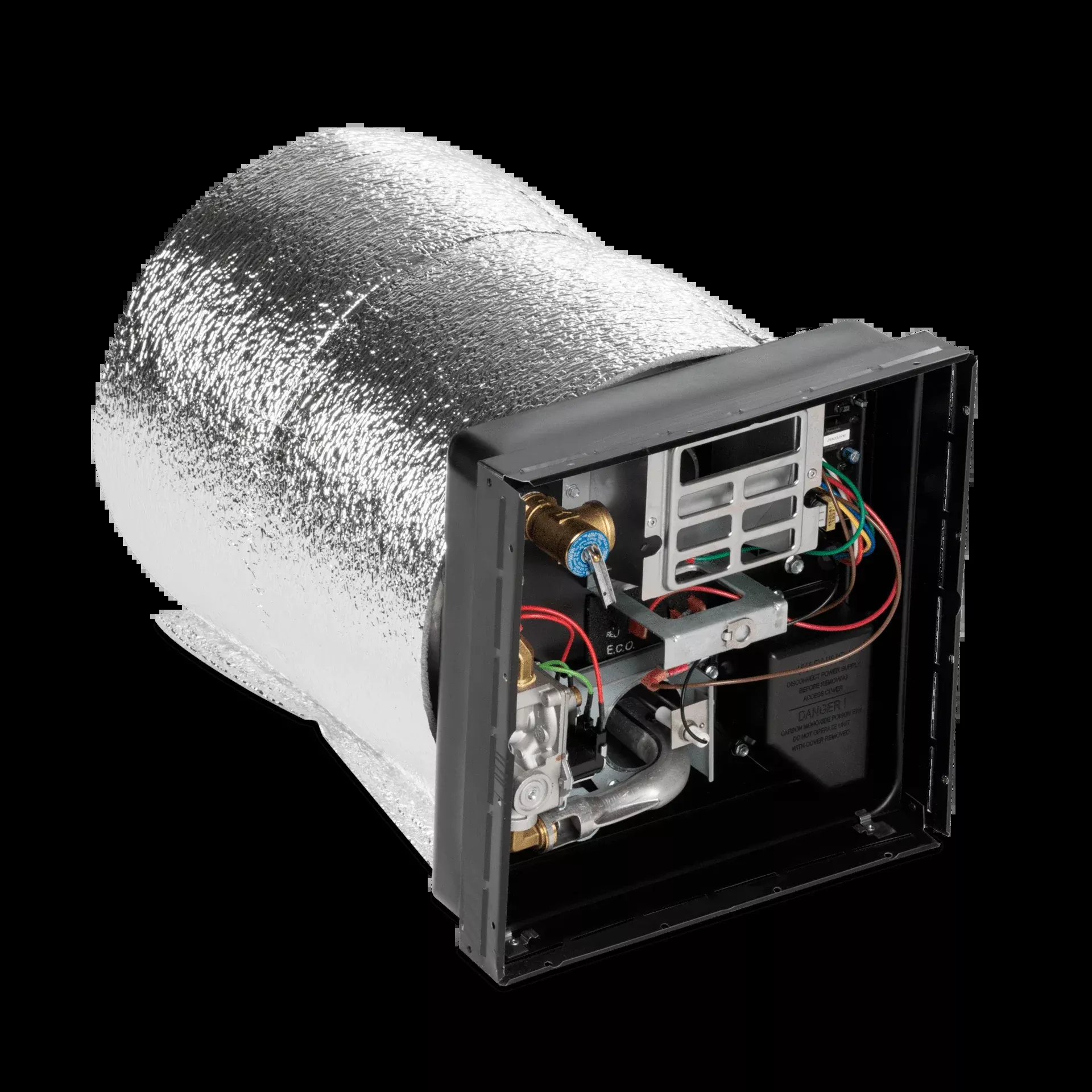

The Dometic WH-6GEA 6-Gallon Dual Fuel RV Water Heater offers flexible fuel options from Nomadic Supply Company®. Use propane while traveling and switch to 120V electric at the campground, with an aluminum tank that requires no anode rod maintenance.
Dometic WH-6GEA 6-Gallon Dual Fuel RV Water Heater (9600024379) Features:
- Dual Fuel Operation. Propane and 120V AC electric with auto-switch capability.
- 6-Gallon Capacity. Sufficient hot water for RV household needs.
- 12,000 BTU Gas Burner. Rapid heating on propane.
- 2000W Electric Element. Full electric operation at campgrounds.
- Aluminum Tank. No anode rod required.
Dometic WH-6GEA 6-Gallon Dual Fuel RV Water Heater (9600024379) Specifications:
General
SKU number 9600024379
Model WH-6GEA
Model on label WH-6GEA
Scope of delivery Water Heater with Manual
Product Description 6 Gallon Water Heater (Gas & Electric), Door not Included
Heating Method Gas & Electric
Dimensions
Dimensions product depth 19 ”
Dimensions product height 12.62 ”
Dimensions product width 12.62 ”
Net weight 15 lbs
Tank Size 6.00 Gal
Cut out depth 19.50 ”
Cut out height 12.88 ”
Cut out width 12.88 ”
Electrical
Input voltage (DC) 12 V
Rated input current (DC) 1 A
Performance
Fuel type Liquid gas LPG
Power consumption – Heating mode 1400.00 W
Fuel consumption peak 3.5 cf/h
Additional
Certificates CSA
Logistics
EAN-13 0713814271411
Dimensions parcel depth 20 1/2 ”
Dimensions parcel height 13 1/2 ”
Dimensions parcel width 16 ”
Parcel weight 18 lbs
Required for Installation:
Hardware is required for this unit to be fully operational. Please ensure that you order the mandatory hardware.
WH CONVERSION SWITCH KIT
This conversion kit is recommended when upgrading from a Suburban model to a WH-6 or WH-9 model water heater.
DOOR,WH 6G BLACK ASM
Single Latch Water Heater Door Assembly 6 Gallon, Black (Only use with square style water heaters)
WH 6G DL BLACK DOOR ASM
Double Latch Water Heater Door Assembly 6 Gallon, Black (Only use with square style water heaters)
WH 6G DL WHITE DOOR ASM
Double Latch Water Heater Door Assembly 6 Gallon, White (Only use with square style water heaters)
SVC,WH 6G WIDE DL DOOR KIT WHT
Double Latch Wide Water Heater Door Assembly 6 Gallon, White (Only use when replacing a rectangle style water heater with a new square style water heater)
SVC,WH 6G WIDE DL DOOR KIT BLK
Double Latch Wide Water Heater Door Assembly 6 Gallon, Black (Only use when replacing a rectangular-style water heater with a new square-style water heater)
Dometic WH-6GEA 6-Gallon Dual Fuel RV Water Heater (9600024379) Documents:
Dometic WH-6GEA 6-Gallon Dual Fuel RV Water Heater (9600024379) Owner’s Manual
Nomadic Supply Company Dometic Catalog
