The Epoch Batteries 48V 90Ah GC2 Lithium Battery Kit for Golf Carts from Nomadic Supply Company® is the perfect replacement for the old-fashioned batteries that come with golf carts. The Epoch Batteries 48V 90Ah GC2 Lithium Battery Kit for Golf Carts maintains consistent power, has built-in overcharge protection, and provides a range of 30-40 miles.
The Epoch Batteries 48V 90Ah GC2 Lithium Battery Kit for Golf Carts (12300A-H) is engineered to provide consistent power output and reliable performance for extended periods of use, utilizing lifepo4 technology. Additionally, our Epoch Batteries 48V 90Ah GC2 Lithium Battery Kit for Golf Carts (12300A-H) utilizes LiFePO4 chemistry to ensure maximum stability, fast charging, reduced weight, constant voltage, increased cycle life, and maintenance-free usage.
At Epoch Batteries, we proudly offer our customers the highest quality lithium iron phosphate (LiFePO4) batteries for marine applications. Our batteries have been specifically designed and engineered to meet the demanding needs of the marine industry, providing superior performance, safety, and longevity.
One of the key advantages of our LiFePO4 batteries is their exceptional safety. Our batteries have built-in protection circuits that prevent overcharging and over-discharging, significantly reducing the risk of fires or explosions. Additionally, our batteries have high thermal stability, which means they can withstand high temperatures without catching fire. This makes them the perfect choice for marine applications where a high level of safety is required.
Another advantage of our LiFePO4 batteries is their long lifespan. Our batteries have a cycle life of up to 3,500 cycles at 80 discharge depth, much longer than traditional lead-acid and other lithium-ion batteries. This means they need to be replaced less often, saving our customers money and time in the long run.
Our LiFePO4 batteries also have a higher energy density than lead-acid batteries, which means they can store more energy in a smaller space. This is particularly useful for marine applications where space is often limited. They also have a lower weight than lead-acid batteries, which makes them easier to handle and install.
Our LiFePO4 batteries also have a much wider operating temperature range than lead-acid batteries, which means they can be used in a variety of different environments. They can also be discharged to a much lower level than lead-acid batteries without damaging them, which means they can be used more efficiently.
Our LiFePO4 batteries also have a faster charging time than lead-acid batteries, which means they can be recharged quickly and used more frequently. They also have a low self-discharge rate, which means they can be stored for longer periods without losing their charge. This is particularly useful for marine applications where the battery may not be used for long periods.
At Epoch Batteries, we are committed to providing our customers with the best possible products and services. We are confident that our LiFePO4 batteries are the best choice for marine applications and stand behind them with a comprehensive warranty.
Epoch Batteries 48V 90Ah GC2 Lithium Battery Kit for Golf Carts Features:
- Range: 30-40 miles
- Compatible with stock & upgraded golf carts
- Modified/Upgraded controller
- Large tires with a lift kit
- 300A 10 seconds, 600A 3 seconds max discharge
- LiFePO4 Chemistry
- 90Ah Capacity (30-40 miles runtime for standard golf cart)
- 180A Max Continuous Discharge (300A 10S Discharge) (600A 3S Peak Discharge)
- Bluetooth Module INCLUDED
- 0 to 100 Charge in 6 hours with included 48V 15A Charger
- IP67 Rated, Dust and WATERPROOF
- CAN Bus Communication allows battery modules to work in sync
- Built-in Smart Battery Management System (BMS)
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- 4000+ Cycle life & Maintenance-free
- 11 Year Manufacturer Warranty
- M8 Terminals – Torque Tension Recommendation is 8-12N·M
- Pack Certifications: UN38.3, CE
- Cell Certifications: UL1642, UL2580, UN38.3
Epoch lithium batteries provide more power than lead-acid batteries and are typically half the weight. Boosting both performance and agility on the water.
Temperature Tolerant
Epoch Lithium batteries can handle a wide variety of conditions and are 2.5x more efficient at low temperatures than lead-acid.
Fast Charging
Epoch lithium batteries charge much faster than traditional lead-acid batteries, and they’re packed with more usable energy and up to 10 times longer life so you’re always ready to go!
Long Life
Epoch Lithium batteries provide up to 10 times longer life than lead-acid batteries, and they still provide 80 of the rated capacity after 3,500 cycles.
Maintenance Free
Epoch Lithium batteries are maintenance-free – no watering, no corrosion. Low self-discharge means the batteries don’t lose capacity when they’re idle, assuring that you have the energy you need, every time you need it.
Constant Power
Full power is available throughout discharge. Voltage does not drop like lead acid.

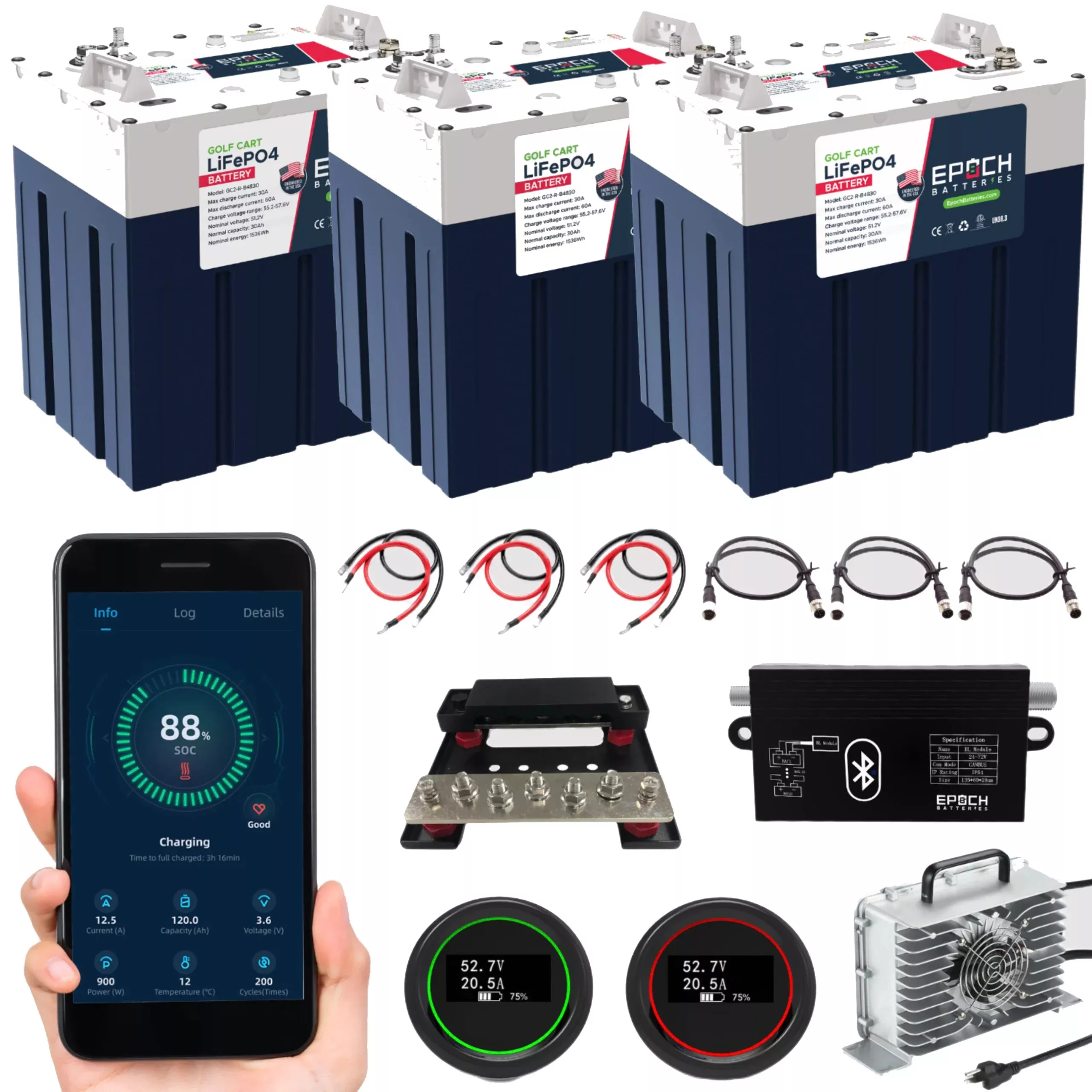

Epoch Batteries 48V 90Ah GC2 Lithium Battery Kit for Golf Carts Includes:
- 1 x 48V 15A Battery Charger – Epoch Batteries
- 1 x Bluetooth Module for GC2 Motive Batteries
- 1 x Battery Meter Fuel Gauge for GC2 Batteries
- 1 x 48 to 12V Voltage Reducer
- 1 x Parallel Busbar
- 1 x 15A AC Port Plug
- 1 x Battery Lifting Strap for GC2 Batteries
- 3 x 4AWG 24 Inch Wiring
- 3 x 48V 30Ah GC2 – Golf Cart LiFePO4 Lithium Battery
Epoch Batteries 48V 90Ah GC2 Lithium Battery Kit for Golf Carts Specifications:
Configuration
Cell Configuration: 16S
Chemistry: LiFePO4
Current
Ah Capacity: 30Ah per battery
Max Continuous Discharge Amps: 180A
Max Charge Current Amps: 30A
Max Discharge Peak Current Amps: 300A (10 Seconds) – 600A (3 Seconds)
Series | Parallel: Max (10) in Parallel = 300 Amp Hours
Voltage
Voltage: 48
Max Charge Voltage: 57.6V
Operating Voltage Range: 40.0 – 57.6V
Temperature
Charge Temp Range: 0°C (32°F) / 55°C (131°F)
Discharge Temp Range: -20°C (-4°F) / 55°C (131°F)
Storage Temp: 0°C (32°F) / 30°C (86°F) (<6 Months)
Weight: 33 (LBS) (per module x3)
Dimensions
Length: 10.25 (inches)
Width: 7 (per module x3) (inches)
Height: 11 (inches)
Epoch Batteries 48V 90Ah GC2 Lithium Battery Kit for Golf Carts Documents:
Epoch Batteries Product Catalog
Epoch Batteries 48V 90Ah GC2 Lithium Battery Kit for Golf Carts Owner’s Manual
Epoch Batteries 48V 90Ah GC2 Lithium Battery Kit for Golf Carts Wiring Diagram
