Keep Your Remote Reservoir Locked In Place No Matter The Terrain

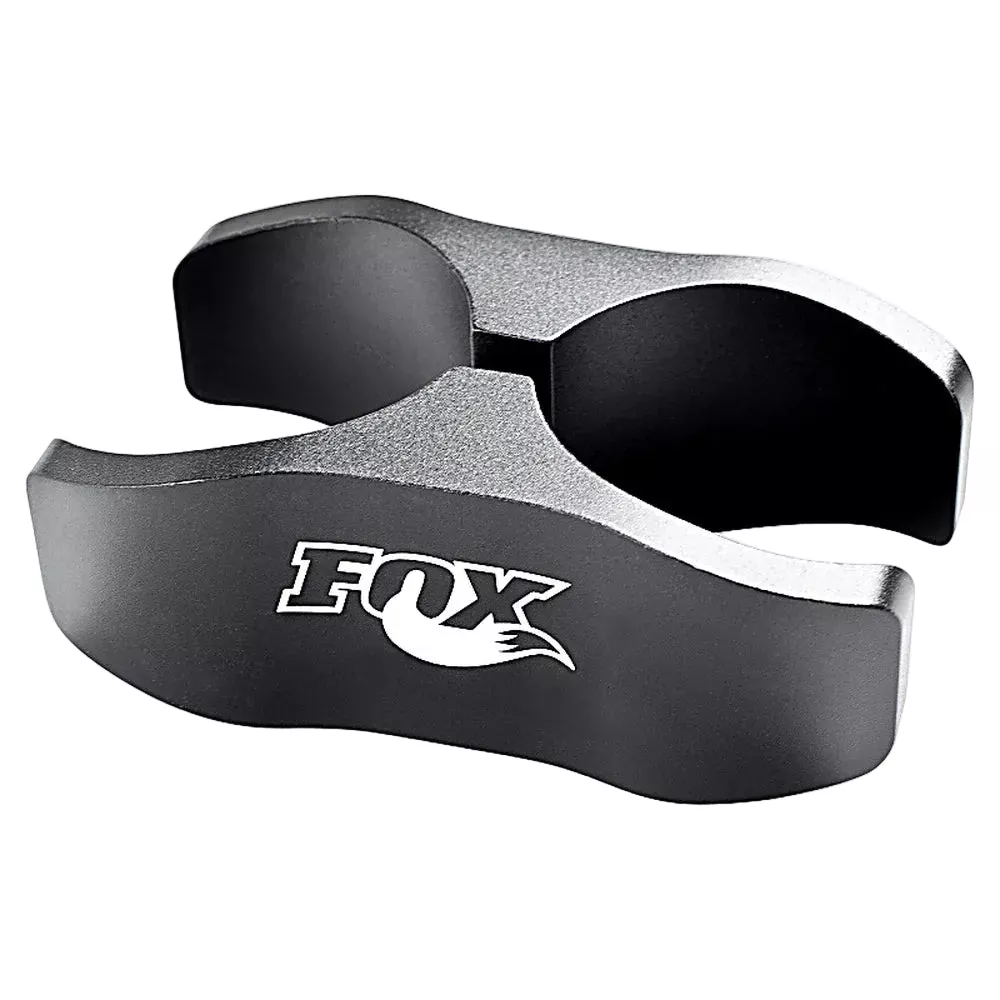

This reservoir holding clamp secures a 2.0 inch remote reservoir directly to the shock body, eliminating the vibration and flex that loosens weaker mounting hardware on washboard trails and high speed desert runs. Machined from black anodized aluminum and bolted on rather than strapped down, this clamp is built to survive the same punishment as the shock it protects.
Key Features
- CNC machined black anodized aluminum construction resists corrosion and UV fade
- Includes reducer inserts for compatibility with both 2.0 inch and 2.165 inch reservoir bodies
- Bolt on design mounts to the shock body or any 2 inch OD tubing
- Works with performance, factory, and new style reservoir series FOX shocks
- Sold individually, one clamp secures one reservoir per shock
Specifications
| Detail | Value |
|---|---|
| MPN | 803-02-044 |
| Brand | FOX |
| Material | Black anodized aluminum |
| Compatible Diameter | 2.0 inch and 2.165 inch reservoirs |
| Includes Reducer Inserts | Yes |
| Install Method | Bolt on |
| Mounting Location | Front or rear |
| Quantity | 1 clamp |
| Warranty | 1 year limited manufacturer warranty |
What’s Included
- 1x FOX reservoir holding clamp
- Reducer inserts for 2.0 inch and 2.165 inch reservoir bodies
- Mounting hardware
About FOX
FOX Racing Shox builds suspension components proven in the toughest off road races in the world, including the Baja 1000 and King of the Hammers. Their reservoir mounting hardware is engineered to the same tolerances as their shock bodies, so every clamp, insert, and bolt is designed to keep pace with the shock it supports.
Frequently Asked Questions
What is the 803-02-044?
The FOX 803-02-044 is a black anodized aluminum reservoir holding clamp that mounts a 2.0 inch remote shock reservoir directly to the shock body. It includes reducer inserts so it also fits 2.165 inch aluminum reservoirs.
Will this clamp fit a 2.165 inch reservoir?
Yes. The included reducer inserts allow the same clamp to secure both 2.0 inch steel style reservoirs and 2.165 inch aluminum reservoirs.
Does this clamp work with any brand of shock?
It is designed for FOX 2.0 series shocks and reservoirs, but it will mount to any 2 inch OD tubing, so it can be adapted to other reservoir setups with similar dimensions.
How many clamps do I need per shock?
One clamp secures one reservoir to one shock body. If your vehicle has a reservoir shock on each corner, order one clamp per shock.
Where should I position the clamp on the reservoir?
Clamp onto the bottom edge of the reservoir. Clamping the middle of the reservoir can trap the internal floating piston as the shock heats up and cause damage.
What material is this reservoir clamp made from?
It is CNC machined from black anodized aluminum for corrosion resistance and long term durability in off road conditions.
Is this clamp sold as a pair or individually?
It is sold individually as a single clamp. Order two if you are mounting reservoirs on both shocks of an axle.
Does this clamp include mounting hardware?
Yes, it ships with the bolt on hardware and reducer inserts needed for installation.
Install Instructions
- Position the reservoir against the shock body in its final mounting location
- Select the correct reducer insert size for your reservoir diameter, 2.0 inch or 2.165 inch
- Place the reducer insert inside the clamp halves around the reservoir
- Position the clamp on the bottom edge of the reservoir, not the middle section
- Align the clamp halves around the shock body and reservoir
- Install and tighten the mounting bolts evenly to the manufacturer specified torque
- Check that the reservoir is secure and does not shift under hand pressure
