Garmin OnBoard Man Overboard System (010-02908-00)

The Garmin OnBoard Man Overboard System (010-02908-00) from Nomadic Supply Company® is a wireless Man Overboard (MOB) detection and engine cutoff system for boats, replacing old tethered lanyards with compact, wearable tags that alert your compatible Garmin chartplotter if someone falls in the water, dropping a waypoint and sounding an alarm, with the option to automatically cut the engine if a designated “captain” tag goes overboard. It uses Bluetooth, supports up to 8 tags, and offers a modern, untethered safety solution for passengers, children, pets, or objects.

How the Garmin OnBoard Man Overboard System (010-02908-00) Works:

1. Wearable Tags:

   Small wireless tags are worn by individuals or attached to objects, offering freedom of movement.

2. System Hub:

   A central GOS 10 hub connects to your boat’s engine cutoff and Garmin chartplotter.

3. Event Trigger:

   If a tag goes overboard, it loses connection, triggering:

   • Captain Tag:

     Engine cutoff, loud hub alarm, and MOB waypoint.

   • Passenger Tag:

     MOB waypoint and audible alarm.

4. Easy Recovery:

   The waypoint on your chartplotter shows exactly where to turn back to rescue the person.

Garmin OnBoard Man Overboard System (010-02908-00) Features:

• Wireless Freedom:

  No more restrictive lanyards.

• Customizable Roles:

  Designate tags as “Captain” (engine cut) or “Passenger” (alarm/waypoint) via your chartplotter.

• Multi-Tag Support:

  Connect up to 8 tags for comprehensive coverage.

• Loud External Alarm:

  The hub ensures alerts are heard over engine noise.

• Waterproof Design:

  Tags and the hub are built for marine environments.

CAPTAIN TAG

Captain MOB detection will trigger engine cutoff, a MOB waypoint on the chartplotter and an audible alarm on the MFDs and hub.

WIRELESS: NO STRINGS ATTACHED

The wearable MOB tags are part of a wireless MOB system — letting you move untethered while still being monitored.

PASSENGER TAG

Passenger MOB detection will trigger a MOB waypoint on MFDs plus an audible alarm on the MFDs and hub.

ENGINE CUTOFF SYSTEM

Should a captain tag trigger an MOB event, the system will cut power to the engines — letting the captain return to the vessel.

CAPTAIN OR PASSENGER TAGS

Through the Garmin chartplotter interface, you can designate each tag as either captain or passenger — changing their MOB action.

WAYPOINTS

When paired to your compatible Garmin chartplotter, a waypoint will be marked at the location where the MOB tag lost connection with the vessel.

Garmin OnBoard Man Overboard System (010-02908-00) Includes:

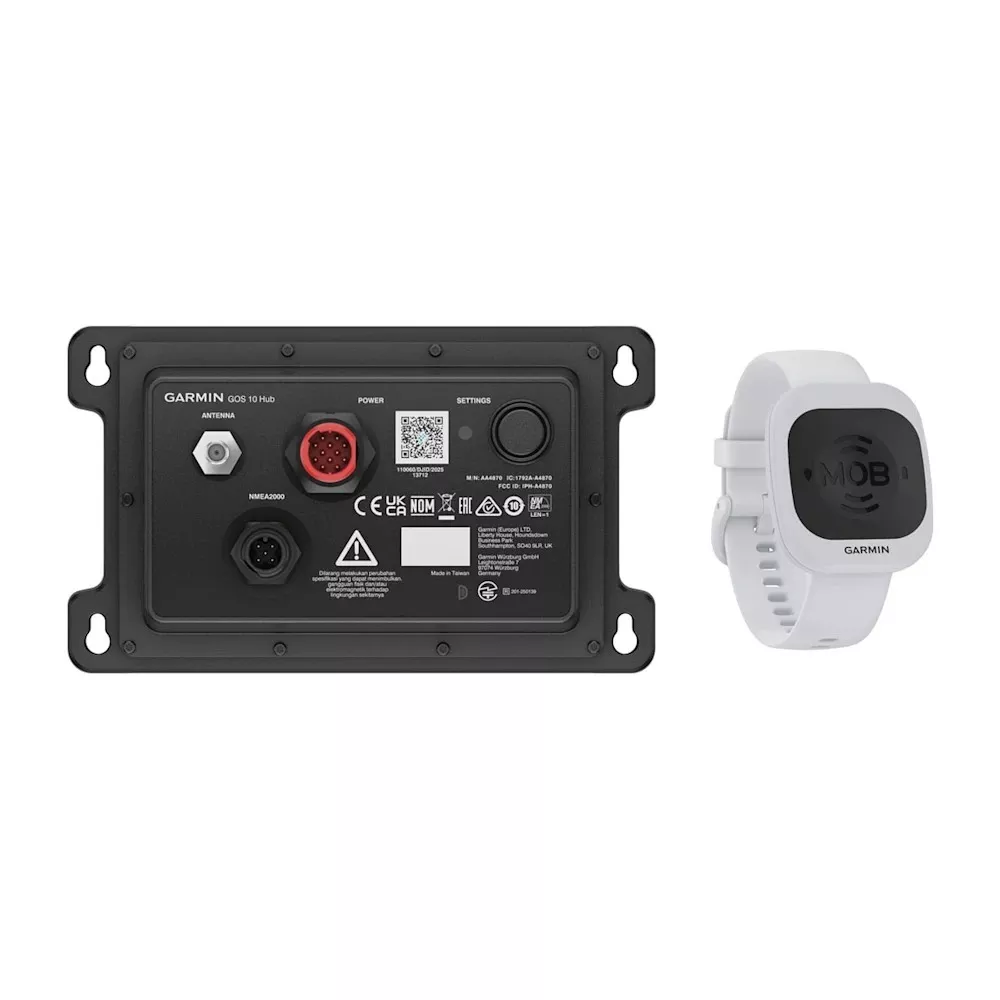

• GOS 10 Hub
• 12-pin fused power and engine cut-off harness with external buzzer
• External antenna for wireless connection to MOB tags
• NMEA 2000 tee and 6 ft drop cable
• White wireless MOB tag
• CR2032 coin cell battery
• White 20 mm quick release band
• Carabiner with 20 mm quick release attachment
• Floating foam keychain
• Installation hardware
• Documentation

Garmin OnBoard Man Overboard System (010-02908-00) Specifications:
