Dramatically improve the entire cabin speaker system in your 2019+ Mercedes-Benz Sprinter with our Jehnert Door & Dashboard Speaker System w/ JOKER 5 Amplifier & Subwoofer for 2019+ Mercedes Sprinter Vans (69741) from Nomadic Supply Company®. Our Jehnert Door & Dashboard Speaker System w/ JOKER 5 Amplifier & Subwoofer for 2019+ Mercedes Sprinter Vans (69741) is the highest quality Sprinter speaker upgrade package on the market.
Our Jehnert Door & Dashboard Speaker System w/ JOKER 5 Amplifier & Subwoofer for 2019+ Mercedes Sprinter Vans (69741) integrated midrange speaker and tweeter module fits perfectly into the Mercedes-Benz cupholders on the dashboard. Independent of the A-pillar trim, the module is integrated to fit perfectly into the open dashboard compartment. Unlike the low-quality factory tweeter, our tweeter is angled for dramatically improved sound fidelity. This special arrangement acoustically forms a ‘stereo triangle’ and ensures optimum sound radiation toward the driver and passenger.
Our Jehnert Door & Dashboard Speaker System w/ JOKER 5 Amplifier & Subwoofer for 2019+ Mercedes Sprinter Vans (69741) fits Sprinter vans with the factory left and right cupholders on the dashboard. If your van came with the dual dashboard glove boxes, you can swap those out for the cup holders by ordering the parts from your local Mercedes-Benz dealership (Passenger side part is A9106803401) or you can simply order our Jehnert Door/Center/A-Pillar Speaker Upgrade Kit w/ JOKER 5 Amplifier & Subwoofer for 2019+ Mercedes Sprinter Vans (69781).
In addition to our dashboard midrange and high speakers, we include 2 very powerful low-frequency 165mm woofers that are a direct fit in the factory location in the doors. The woofers are installed directly in the factory installation openings with a precisely fitting mounting adapter which is included in our kit.
Our Jehnert Door & Dashboard Speaker System w/ JOKER 5 Amplifier & Subwoofer for 2019+ Mercedes Sprinter Vans (69741) also includes our Jehnert JOKER 5-Channel Audio Amplifier (11086) and our Jehnert Quadcoil 8″ Under Seat Subwoofer (17011).
Lastly, the factory-dominant (far too loud) Mercedes-Benz Sprinter center speaker is throttled by using our included plug-and-play Jehnert Center Speaker Crossover for 2019+ Mercedes Sprinter Vans which ensures that the factory center speaker blends harmoniously into the sound system.
This is an Official Nomadic Supply Company® Product that we use to build our Mercedes Sprinter camper vans.

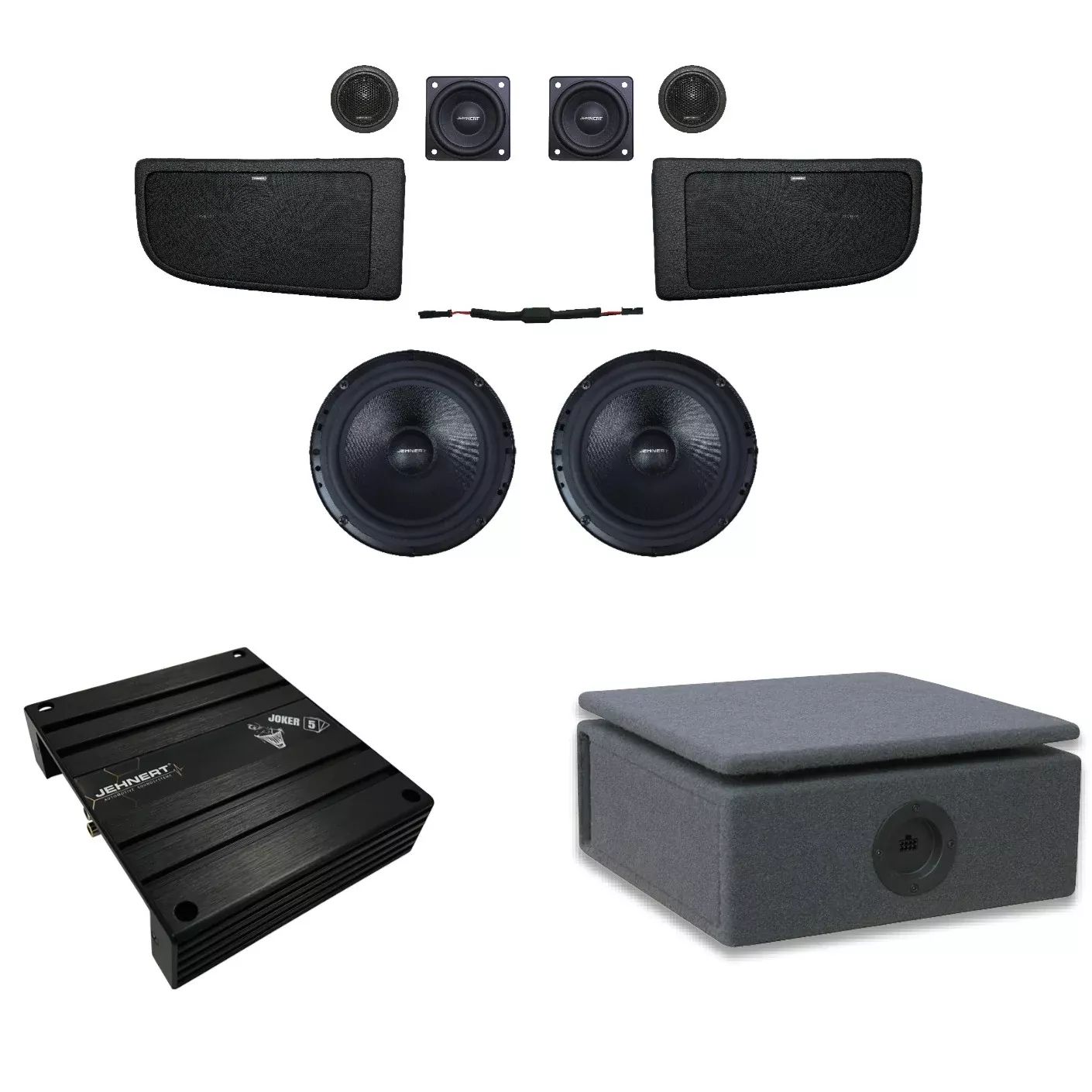

Jehnert Door & Dashboard Speaker System w/ JOKER 5 Amplifier & Subwoofer for 2019+ Mercedes Sprinter Vans (69741) Includes:
- Jehnert Door & Dashboard Speaker System Upgrade Kit for 2019+ Mercedes Sprinter Vans (65740)
- Jehnert Center Speaker Crossover for 2019+ Mercedes Sprinter Vans
- Jehnert Quadcoil 8″ Under Seat Subwoofer (17011)
- Jehnert JOKER 5-Channel Audio Amplifier (11086)
- Subwoofer connection cable plug & play 4.8 m
Jehnert Door/Dashboard/Cup Holder Speaker System Upgrade Kit Accessories:
The Jehnert JOKER 5-Channel Audio Amplifier Remote Control (68495) is available as an option to control the subwoofer.
To integrate a TV into the sound system of the Sprinter W907, our Jehnert JOKER 5-Channel Audio Amplifier AUX-In Module (11086-AUX-JACK) is required. The AUX-In module extends the 5-channel amplifier by an AUX connection. The module is added to the circuit board at the factory and must be ordered with the amplifier. The connection directly to the amplifier ensures lossless signal processing and the best sound performance.
Additionally, our Jehnert 3.5mm Wireless HiFi aptX Bluetooth Audio Receiver/Adapter (68497) can be connected using a Y adapter, allowing the sound system to be used even when the vehicle is stationary, without turning on MBUX.
If only a Bluetooth connection is desired, the Jehnert HD Digital Optical Bluetooth Audio Receiver (11046-52063) is recommended due to its higher data transfer rate. To control these additional Bluetooth/AUX functions, a rocker switch is required.
Jehnert Door & Dashboard Speaker System w/ JOKER 5 Amplifier & Subwoofer for 2019+ Mercedes Sprinter Vans (69741) Specifications:
| VEHICLE | |
| Mercedes Sprinter VS30 from 2018 (Type W907 / W910) | |
| COVER MATERIAL | |
| imitation leather | |
| COVER COLOR | |
| anthrazit | |
| MATERIAL | |
| glass fiber reinforced plastic (GRP) | |
| TWEETER | |
| 1x 26 mm neodymium softdome tweeter /per side | |
| MIDRANGE | |
| 1 x 80 mm full range driver “Xe 80” /per side | |
| WOOFER | |
| 1x 165 mm JEHNERT “POWER WOOFER” /per side | |
| CROSSOVER | |
| Jehnert crossovers, calibrated for specific vehicles | |
| RESILIENCE | |
| 2 x 80 / 160 Watt | |
| TRANSMISSION RANGE | |
| 49 – 22.000 Hz | |
| AMPLIFIER POWER | |
| from 2 x 50 – 100 Watt 4 Ohm |
Jehnert Door & Dashboard Speaker System w/ JOKER 5 Amplifier & Subwoofer for 2019+ Mercedes Sprinter Vans (69741) Features:
- Vehicle-specific setups can be downloaded.
- High-performance 64-bit fixed-point audio DSP
- special subwoofer output for JEHNERT subwoofer
- very energy efficient and extremely compact dimensions
- Automotive-specific setups reloadable via MicroSD memory card
- easy connection via ISO adapter
- enormous sound increase thanks to more power and 56 / 64-bit DSP technology
- start/stop capability down to 6 V supply voltage
- special “plug & play” active subwoofer output
- very low power consumption and extremely compact dimensions
DSP function:
We develop a specific, computer-aided setup for each vehicle and deliver it pre-installed with each sound system.
Jehnert Door & Dashboard Speaker System w/ JOKER 5 Amplifier & Subwoofer for 2019+ Mercedes Sprinter Vans (69741) Specifications:
| Size | 33.6 × 31.7 × 16.6 cm |
|---|---|
| Speakers: | 1x 200mm double voice coil |
| Weight: | 5.6 kg |
| Performance Duration/Music: | 1x 160 / 320 watts @ 2 ohms |
| Transmission range: | 32 – 180 Hz |
| Impedance: | 4x 3 Ω |
| Resonance frequency | 37 Hz |
| Mechanical quality | 5.40 |
| Electrical quality | 0.57 |
| Overall quality | 0.51 |
| Efficiency 1 W / 1 m | 87 dB |
| Membrane material | Handmade paper membrane |
Jehnert Door & Dashboard Speaker System w/ JOKER 5 Amplifier & Subwoofer for 2019+ Mercedes Sprinter Vans (69741) Installation:
Jehnert Door & Dashboard Speaker System w/ JOKER 5 Amplifier & Subwoofer for 2019+ Mercedes Sprinter Vans (69741) Documents:
Jehnert Quadcoil 8″ Under Seat Subwoofer (17011) Installation Manual
Jehnert Subwoofer Specifications and Comparisons List
Jehnert JOKER 5-Channel Audio Amplifier (11086) Installation Manual
Jehnert Door & Dashboard Speaker System w/ JOKER 5 Amplifier & Subwoofer for 2019+ Mercedes Sprinter Vans (69741) Manual
