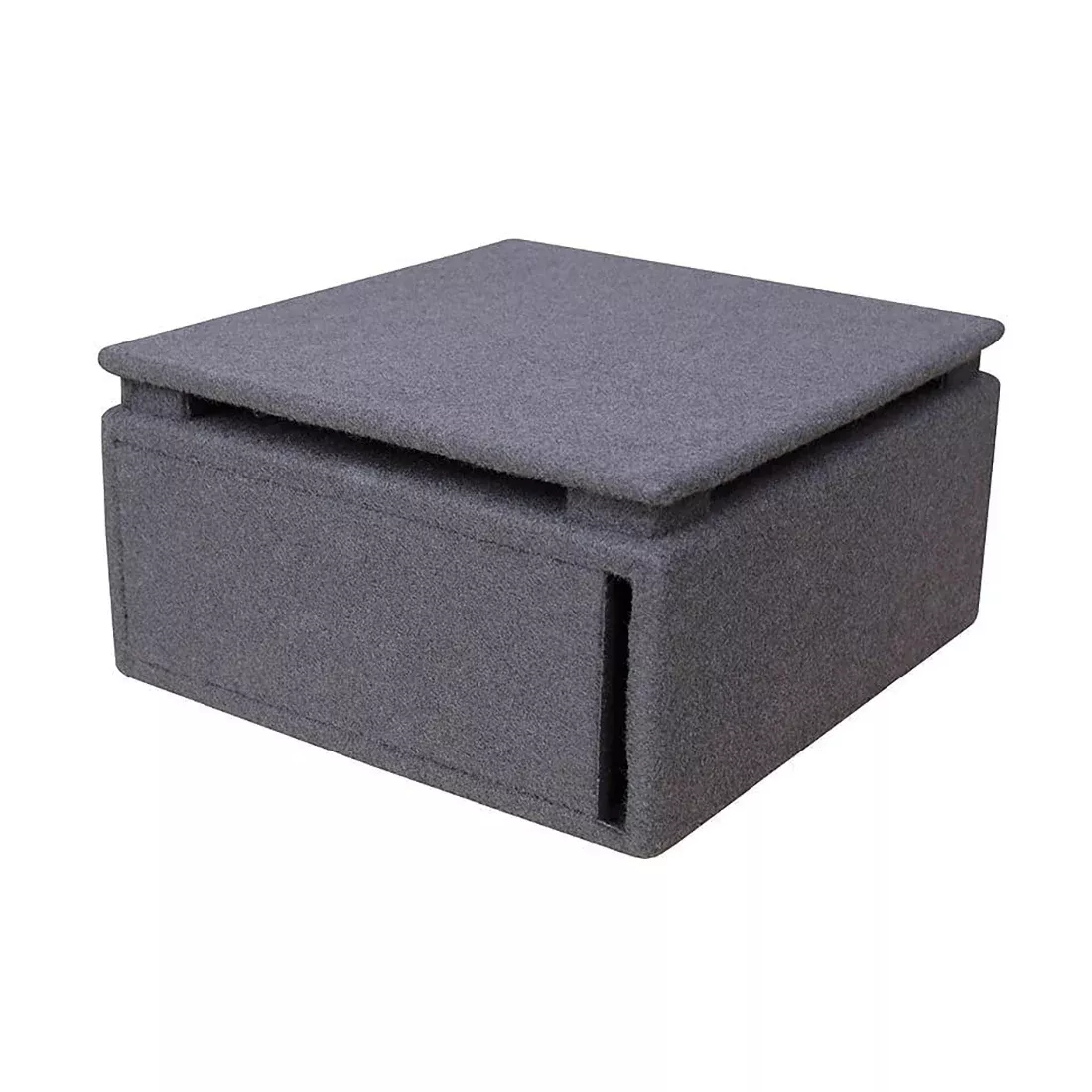

With the Jehnert Quadcoil 8″ Under Seat Subwoofer (17011) from Nomadic Supply Company®, the focus is not on sound pressure and decibels but on achieving crystal-clear, spirited sound dynamics and absolute perfection of the sound. With our Jehnert Quadcoil 8″ Under Seat Subwoofer (17011) you can finally enjoy music in a lively and “perceptible” way – without annoying vibration noise and booming bass.
JEHNERT bass reflex subwoofers in various sizes were developed specifically for recreational vehicles with limited space. Despite their compact cabinet size, they deliver maximum sound quality. All subwoofers feature a “plug & play” connection cable (including Molex connector) and are powered by a power-efficient 5-channel digital amplifier. These are passive subwoofers that require an amplifier for connection. Connection to the amplifier of the sound packages is plug & play; for third-party amplifiers, adjustment of the wiring harness may be necessary.
Jehnert Quadcoil 8″ Under Seat Subwoofer (17011) Specifications:
| Size | 33.6 × 31.7 × 16.6 cm |
|---|---|
| Speakers: | 1x 200mm double voice coil |
| Weight: | 5.6 kg |
| Performance Duration/Music: | 1x 160 / 320 watts @ 2 ohms |
| Transmission range: | 32 – 180 Hz |
| Impedance: | 4x 3 Ω |
| Resonance frequency | 37 Hz |
| Mechanical quality | 5.40 |
| Electrical quality | 0.57 |
| Overall quality | 0.51 |
| Efficiency 1 W / 1 m | 87 dB |
| Membrane material | Handmade paper membrane |
Jehnert Quadcoil 8″ Under Seat Subwoofer (17011) Documents:
Jehnert Quadcoil 8″ Under Seat Subwoofer (17011) Installation Manual
Jehnert Subwoofer Specifications and Comparisons List
