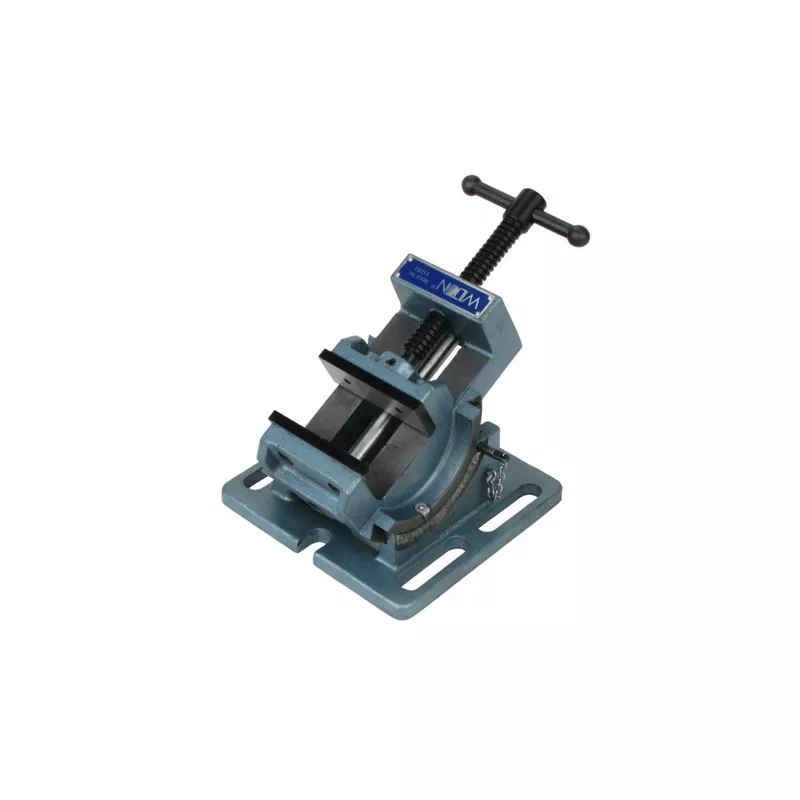

11753, Wilton 3″ Cradle Style Angle Drill Press Vise
The cradle style drill press vise is designed for angled drilling and tapping applications. All boast hardened v-grooved jaws for clamping round objects vertically and horizontally. Backed by Wilton’s lifetime warranty.
Features:
- Designed for applications including drilling, tapping and reaming requiring angle setup
- Cradle design with 90 vertical indexing, scaled in 1 increments
- Side tommy bar allows secure locking at any increment from 0 – 90
- Pin hard stops at 0, 15, 30, 45, 60, 75 and 90 for common applications
- Durable construction with fine grain cast iron castings and hardened smooth vise jaws
- Black oxide coated screw provides consistent clamping pressure and durability
- Highly accurate with beds and bases parallel to .001
- Base has four shoulder slots for quick, easy positioning on the machine table
- Base dimensions: 6-1/2 x 6-1/2
Specifications:
- Jaw Width (In.) 3
- Opening Capacity Max (In.) 3
- Jaw Depth (In.) 1-1/8
- Smooth Jaw Inserts 11753-01
Wilton Lifetime Warranty:
Wilton warrants every product they sell against manufacturers defects. If one of Wilton tools needs service or repair, please contact Technical Service by calling 1-800-274-6846, 8AM to 5PM CST, Monday through Friday.
