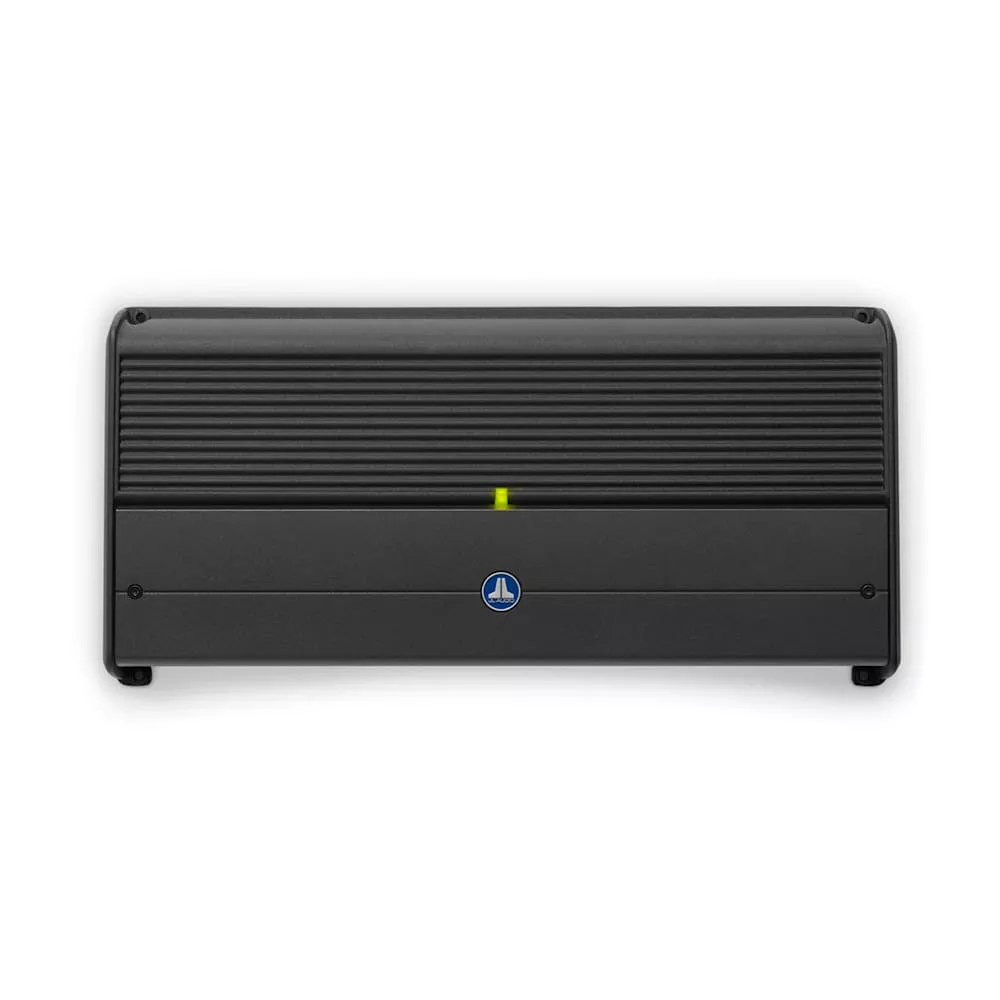

The JL Audio XDM 5-Channel 1000 Watt 12V Marine Amplifier (010-03113-00) from Nomadic Supply Company® delivers a powerful, all-in-one solution for a complete marine audio system, combining four full-range channels with a dedicated high-power subwoofer channel totaling 1000 watts. The advanced NexD high-speed switching design permits full-bandwidth Class D operation with extremely low distortion and remarkable efficiency in a compact chassis.
Suitable for car or boat installations, the XDM1000/5 is built with marine-grade materials and features an exclusive dual-mode input filter for noise-free performance. Automatic turn-on via signal sensing or DC-offset sensing is onboard for easy factory system upgrades. Each channel bank includes a 12 dB/octave filter configurable as low-pass or high-pass, with continuously variable cutoff from 50–500 Hz. All controls are protected beneath a gasketed, removable top cover for easy access.
JL Audio XDM 5-Channel 1000 Watt 12V Marine Amplifier (010-03113-00) Specifications:
| Rated Continuous (RMS) Power @ 14.4 V | |
| Ch. 1-4 @ 4 Ohms | 75 W RMS x 4 |
| Ch. 1-4 @ 2 Ohms | 100 W RMS x 4 |
| Ch. 1-4 Bridged @ 4 Ohms | 200 W RMS x 2 |
| Ch. 5 (Wide-Range/Sub) @ 4 Ohms | 300 W RMS x 1 |
| Ch. 5 (Wide-Range/Sub) @ 2 Ohms | 600 W RMS x 1 |
| Rated Continuous (RMS) Power @ 12.5 V | |
| Ch. 1-4 @ 4 Ohms | 60 W RMS x 4 |
| Ch. 1-4 @ 2 Ohms | 90 W RMS x 4 |
| Ch. 5 (Wide-Range/Sub) @ 2 Ohms | 425 W RMS x 1 |
| General JL Audio XDM 5-Channel 1000 Watt 12V Marine Amplifier (010-03113-00) Specifications: | |
| Frequency Response | 12 Hz – 22 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >104 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| THD+N @ Rated Power | <1% @ 2 Ohms per Ch. |
| Input Voltage Range @ RCA Inputs | 200 mV – 4 V RMS |
| Min. Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 80 A (AFS, AGU or MaxiFuse) |
| Signal Processing | |
| Filter Mode(s) | Low-Pass or High-Pass |
| Filter Slope(s) | 12 dB/octave |
| Filter Frequency Range | 50 Hz – 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometers | Yes |
| Filter Defeat Function | Yes |
| Remote Level Control | Optional HD-RLC or MHD-RLC (water-resistant) |
| Remote Level Modes | 2 or All channels |
| Channel Input Mode Switch | Yes (2/4 ch.) |
| Pass-Through Preamp Output | Buffered |
JL Audio XDM 5-Channel 1000 Watt 12V Marine Amplifier (010-03113-00) Includes:
- XDM1000/5 Amplifier
- Wrench
- Badge
- Manual
