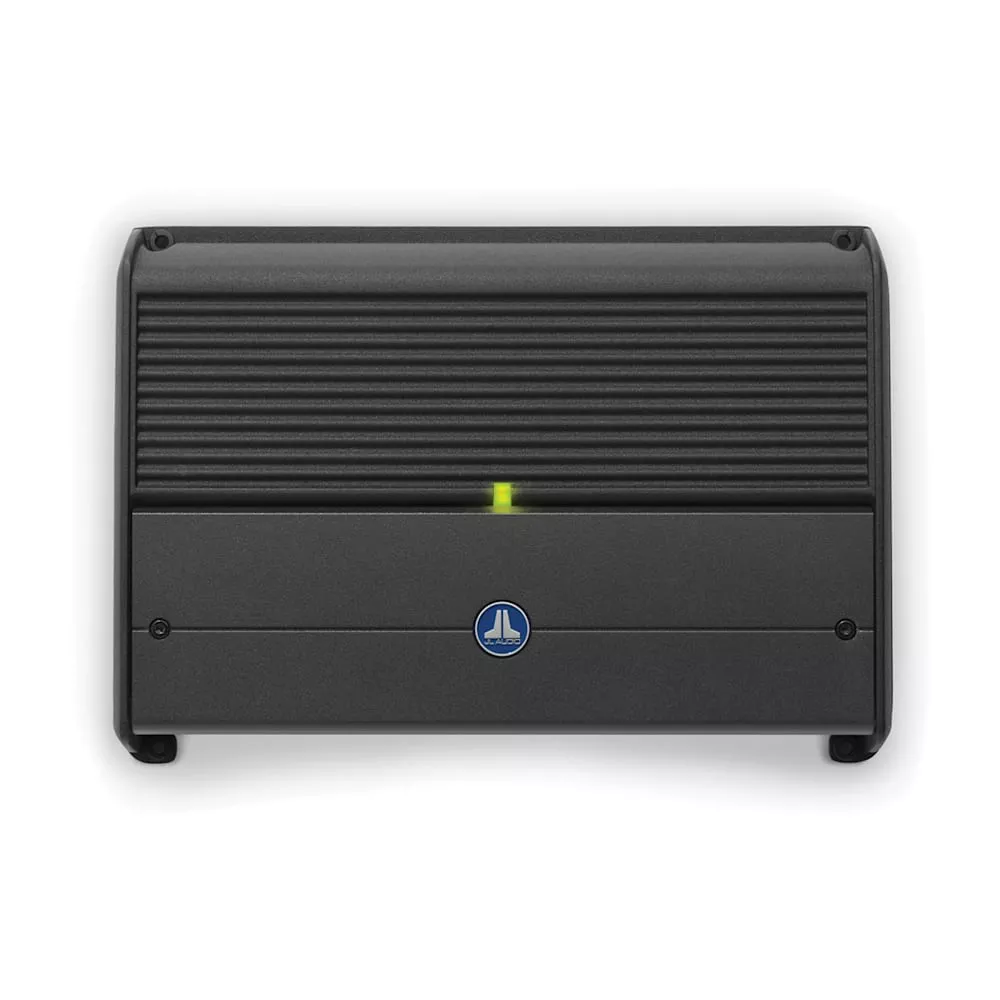

The JL Audio XDM 6-Channel Full-Range 600 Watt 24V Marine Amplifier (010-03120-00) from Nomadic Supply Company® packs a serious full-range wallop, delivering 100 watts to each of its six channels into 2 ohms (28.8V, 1% THD). The advanced NexD high-speed switching design permits full-bandwidth Class D operation with extremely low distortion and remarkable efficiency in a compact chassis.
This amplifier is designed exclusively for vessels with 24-volt, negative-ground electrical systems. With the XDM600/6-24V, you have flexible configuration options — use all six channels as satellite amplifiers, bridge pairs for higher power satellite channels, or configure some channels as a subwoofer feed. Automatic turn-on via signal sensing or DC-offset sensing is onboard for easy factory system upgrades. All controls are protected beneath a gasketed, removable top cover for easy access.
For 24V systems only. Use of this product in vessels with positive ground and/or voltages other than 24V may result in damage and will void the warranty.
JL Audio XDM 6-Channel Full-Range 600 Watt 24V Marine Amplifier (010-03120-00) Specifications:
| Rated Continuous (RMS) Power @ 28.8 V | |
| @ 4 Ohms | 75 W RMS x 6 |
| @ 2 Ohms | 100 W RMS x 6 |
| Bridged @ 4 Ohms | 200 W RMS x 3 |
| Rated Continuous (RMS) Power @ 25 V | |
| @ 4 Ohms | 60 W RMS x 6 |
| @ 2 Ohms | 90 W RMS x 6 |
| Bridged @ 4 Ohms | 180 W RMS x 3 |
| General JL Audio XDM 6-Channel Full-Range 600 Watt 24V Marine Amplifier (010-03120-00) Specifications: | |
| Frequency Response | 12 Hz – 22 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >104 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >84 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ohm | >150 / 50 Hz |
| Damping Factor @ 2 Ohms | >75 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ohms per Ch. |
| Input Voltage Range @ RCA Inputs | 200 mV – 4 V RMS |
| Min. Copper Power / Ground Wire Gauge | 8 AWG wire |
| Fuse Rating | 30 A (AFS, AGU or MaxiFuse) |
| Signal Processing | |
| Filter Mode(s) | Low-Pass or High-Pass |
| Filter Slope(s) | 12 dB/octave |
| Filter Frequency Range | 50 Hz – 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometers | Yes |
| Filter Defeat Function | Yes |
| Remote Level Control | Optional HD-RLC or MHD-RLC (water-resistant) |
| Remote Level Modes | 2 or 4 or All Channels |
| Channel Input Mode Switch | Yes (2/4/6 ch.) |
| Pass-Through Preamp Output | None |
JL Audio XDM 6-Channel Full-Range 600 Watt 24V Marine Amplifier (010-03120-00) Includes:
- XDM600/6-24V Amplifier
- Wrench
- Badge
- Manual
