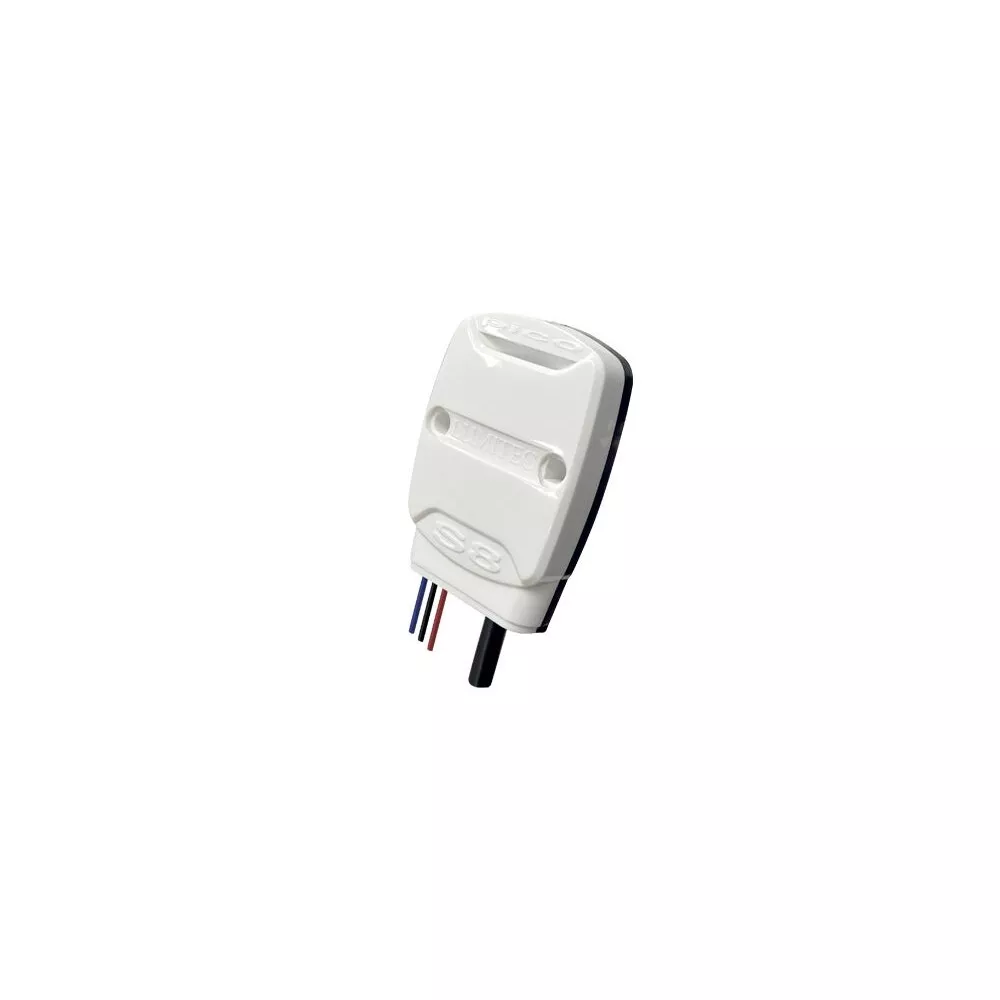

Lumitec PICO S8 Switching Module Only Works with POCO3 (101684) from Nomadic Supply Company® pico Expansion Modules extend the power and reach of the Poco Digital Lighting Control system making it possible to control other manufacturers’ luminaires, lighting accessories and devices that do not have the sophisticated PLI technology built-in. The Pico S8 module provides the ability to assign Poco virtual switch commands to physical mechanical switches (8 max). This means that your MFD can remain on a dedicated screen, or even be turned off, and a physical switch will activate the virtual switch command through the Poco module. Requires Poco 3 for compatibility (S8 module is not compatible with all earlier versions of the Poco module).
Lumitec PICO S8 Switching Module Only Works with POCO3 (101684) Features:
- 8-Channel Switching Module. Lumitec PICO S8 Switching Module Only Works with POCO3 (101684) provides 8 independently controllable on/off switching channels through the Poco system.
- Poco System Expansion. Lumitec PICO S8 Switching Module Only Works with POCO3 (101684) extends the Poco system to control non-dimmable lighting circuits and accessories.
- IP67 Waterproof Rating. Lumitec PICO S8 Switching Module Only Works with POCO3 (101684) is completely sealed and IP67 rated for marine installation.
- Compact Design. Lumitec PICO S8 Switching Module Only Works with POCO3 (101684) features a compact housing for easy installation in electrical panels.
- Wide Voltage Range. Lumitec PICO S8 Switching Module Only Works with POCO3 (101684) operates on 10-30V DC, compatible with both 12V and 24V marine electrical systems.
Lumitec PICO S8 Switching Module Only Works with POCO3 (101684) Specifications:
- Voltage: 10-30vDC
- 12V DC Amps: 0.1 amp max
- Op. Temp F/C: -31/35 to + 131/55
- Timed Toggled Protocol (TTP): Yes
- Third Party Dimmer Compatibility (3PD): Yes
- Height: 2.6 in (6.60cm)
- Width: 1.9 in (4.82cm)
- Depth: 0.52 in (1.32cm)
