Home » Shop » hot sale » Mastercut SF-13 1/2″ Radius Tree Shape Carbide Burr (1 Burr)

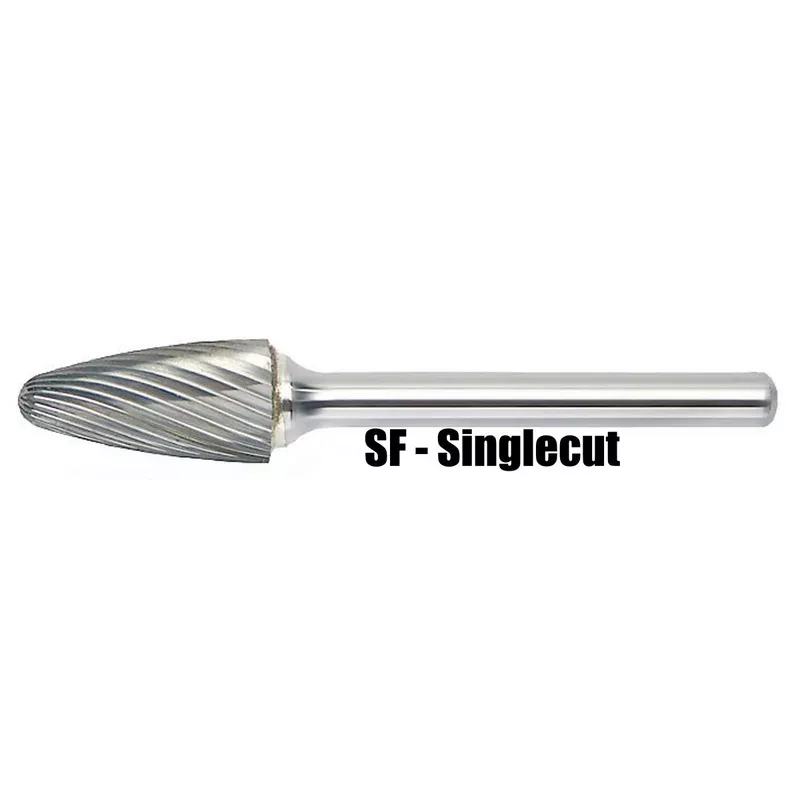

Mastercut SF-13 1/2″ Radius Tree Shape Carbide Burr (1 Burr)

Original price was: $10.10.Current price is: $7.36.

Sale!
SKU: VAML11500498 Category:
Share

Mastercut SF-13 1/2″ Radius Tree Shape Carbide Burr (1 Burr)

BURR SIZE
Cut Diameter/OD 1/2″
Cut Length/LOC 3/4″
Shank Diameter/SHK 1/4″
Length/OAL 2 1/2″
CUT TYPE
    Singlecut
    • General purpose tool for cast iron, copper, brass and steels
    • Fairly aggressive cutting action, with good material removal rates
    • This tool leaves a nice finish on most all materials, but the bite can be demanding on operators
    Doublecut
    • For general purpose use including cast iron, copper, brass and steels
    • The Doublecut utilizes a cross flute of exactly half the number of standard flutes in a opposing helix
    • Sliver size is greatly reduced, as is the operator fatigue from the balanced cutting forces
    • Lower RPMs may be utilized with little negative impact on performance
    • The decreased load equates to operator’s often feeding this tool more aggressively
    Alumacut
    • Best for all non-ferrous, non-metallic workpieces like aluminum, zinc, plastic, wood, etc.
    • An extremely aggressive cutting action, with little or no chance of plugging these flutes up
    Diamondcut
    • Is a finer cut of opposing helixes
    • Operating control is very good because the biting action is limited as is the silver size produced from it
    • This version tends to be preferred in shops where titanium and other difficult materials (superalloys) are being deburred
    • With the teeth being smaller and slightly more fragile as a result, tool life is not usually a matter of import
    • Fiberglass tends to cut nicely with Diamondcut
    Chipbreaker
    • Another version of the Doublecut, this is a slightly less aggressive tool whose main purpose is to simply interupt the cut
    • One single, opposing helix is ground in a spiral around the tool, typically
    • Silver size goes down, surface finish goes down marginally, hand control goes up, marginally

      (Call for high usage quote – 641-201-1352)
