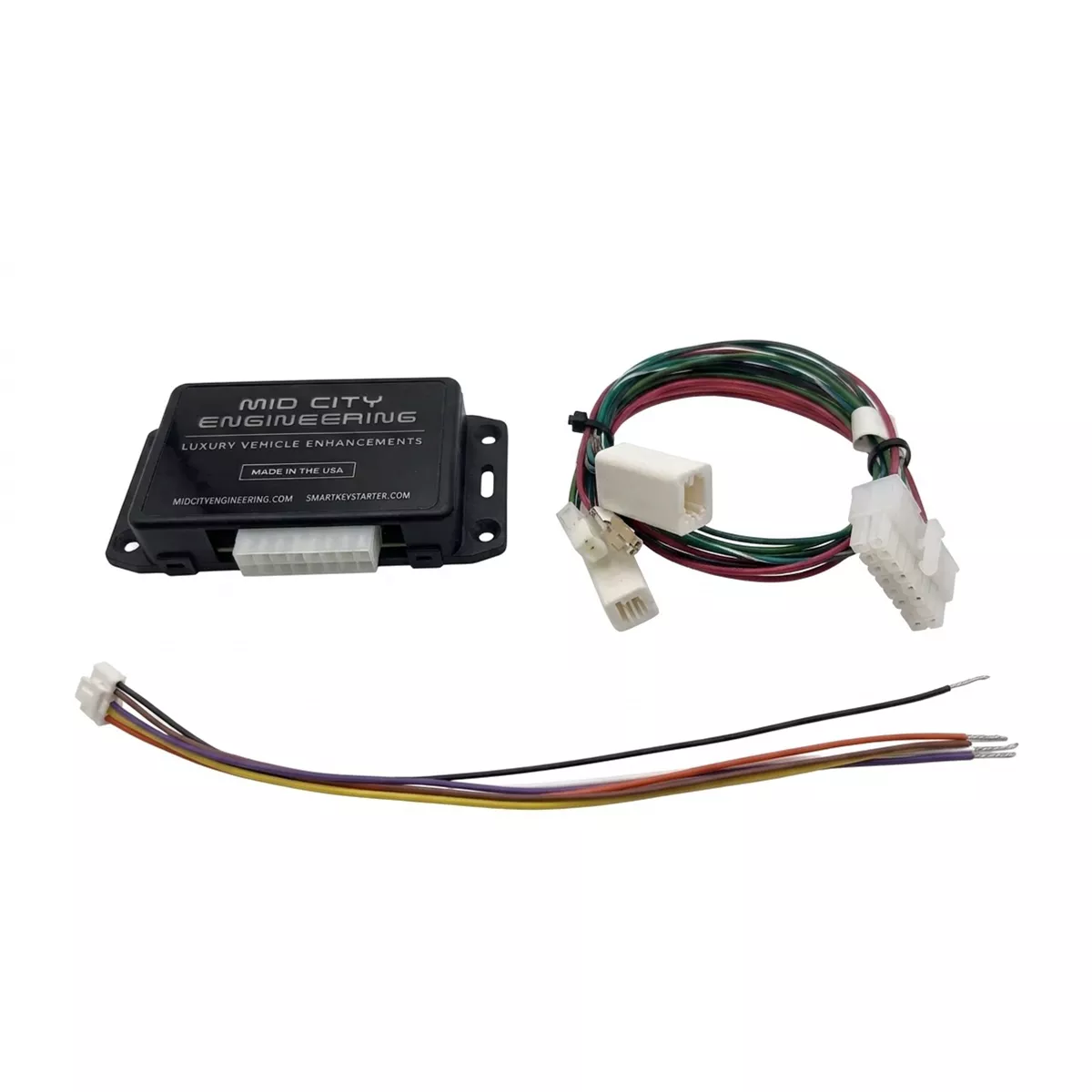

The Mid City Wig Wag Module for LED Lights for 2019+ Mercedes Sprinter Vans (WIGWAGLED) from Nomadic Supply Company® delivers professional-grade alternating flash control for LED warning lights in emergency vehicles and work trucks. This precision-engineered module creates eye-catching wig-wag patterns that enhance visibility and safety compliance across various commercial and emergency applications.
The Mid City Wig Wag Module for LED Lights for 2019+ Mercedes Sprinter Vans (WIGWAGLED) provides reliable electronic switching technology specifically designed for LED lighting systems. Built with durable components and weather-resistant construction, this module ensures consistent performance in demanding environments while maintaining the longevity of connected LED lights through proper current management.
Emergency responders, utility crews, and commercial fleet operators trust the Mid City Wig Wag Module for LED Lights for 2019+ Mercedes Sprinter Vans (WIGWAGLED) to deliver dependable warning light control. The module’s straightforward installation process and proven reliability make it an essential component for vehicles requiring enhanced visibility and regulatory compliance in hazardous work zones.
Mid City Wig Wag Module for LED Lights for 2019+ Mercedes Sprinter Vans (WIGWAGLED) Features:
- Enhanced Visual Warning: Creates high-impact, alternating wig-wag patterns using the vehicle’s factory LED lights to significantly improve visibility.
- Dual-Speed Functionality: Features two selectable flashing speeds that can be toggled via ground trigger wires to suit different emergency or work-zone requirements.
- LED-Optimized Technology: Specifically engineered for modern LED systems, ensuring proper current management to protect the longevity of the connected lighting components.
- Safety & Compliance: Helps vehicles meet safety regulations for visibility in hazardous work zones and emergency operations.
- Weather-Resistant Durability: Built with robust, durable components designed to perform reliably in demanding commercial and emergency environments.
Mid City Wig Wag Module for LED Lights for 2019+ Mercedes Sprinter Vans (WIGWAGLED) Specifications:
- Vehicle Compatibility:
- 2019+ Mercedes-Benz Sprinter W907 / VS30
- 2019+ Freightliner Sprinter W907
- Lighting Requirement: Specifically for models equipped with factory LED lights.
- Installation Time: Approximately 30 minutes.
- Control Logic: Ground trigger wires for selecting between two flash speeds.
- Warranty: Industry-leading 4-year manufacturer warranty.
- Hardware Type: Electronic switching module with integrated current management.
- Primary Applications:
- Emergency Responders: Enhances presence during roadside incidents.
- Utility & Service Crews: Increases safety during stationary work in high-traffic areas.
- Commercial Fleets: Provides a professional-grade warning system for specialized work trucks.
Mid City Wig Wag Module for LED Lights for 2019+ Mercedes Sprinter Vans (WIGWAGLED) Instruction Guide:
Here are the easy-to-follow instructions for the Mid City Engineering WIGWAG system. This module allows you to flash the vehicle’s factory exterior lights in a high-visibility pattern, providing an integrated solution for safety and visibility without adding external light bars.
Phase 1: Dash & Sill Disassembly
- Remove Trim Panels:
- Pry off the small panel at the end of the driver-side knee bolster.
- Remove the two screws at the end of the footwell and remove that lower panel.
- Access Fuse Box:
- Turn the plastic screws in the footwell counter-clockwise to release the panel.
- Pull back the floor liner to expose the fuse access area.
- Remove Sill Plate:
- Remove the single screw holding the sill panel in place (located under the floor liner).
- Pop out the two plastic panel tabs and set the sill panel aside.
Phase 2: Wiring & Power
- Connect Ground:
- Remove the factory grounding bolt near the door opening.
- Place the black wire’s ring terminal onto the post and tighten the bolt securely.
- Connect Power:
- The harness includes a red power lead with a fuse holder terminal.
- Route this terminal through the underside of the fuse box (under the passenger floor).
- Insert it into a constant power location (refer to your specific kit diagram) and insert the provided fuse into the top.
Phase 3: CAN Bus Integration
- Locate CAN Block: Find the distribution block below the A-pillar featuring green and green/white wires.
- Plug in Module: Insert the provided 2-pin white CAN plug into an empty spot on the block.
- Note: If the block is full, remove one factory plug, insert the provided plug, and connect the factory plug into the male receptacle on the T-harness.
- Verify Connection: Press the Start button once (ACC mode). The yellow and green lights on the WIGWAG module will flash. Once communication is established, both lights will turn solid.
Phase 4: Activation & Operation
- Connect Pigtail: Plug the 6-pin pigtail into the white port on the module. Ensure all unused wires are properly insulated with heat shrink or electrical tape.
- Trigger the Pattern: To activate the flashing lights, ground one of the following wires via a switch or auxiliary input:
- Fast Pattern: Ground the Gray wire.
- Slow Pattern: Ground the Purple wire.
Important Safety Warnings
- Usage Compliance: This module is intended for off-road or emergency use. Ensure you are following all local and state laws regarding the use of flashing exterior vehicle lighting.
- Secure Mounting: Once testing is complete, use zip ties to mount the module securely away from the steering column, brake pedals, or other moving parts.
