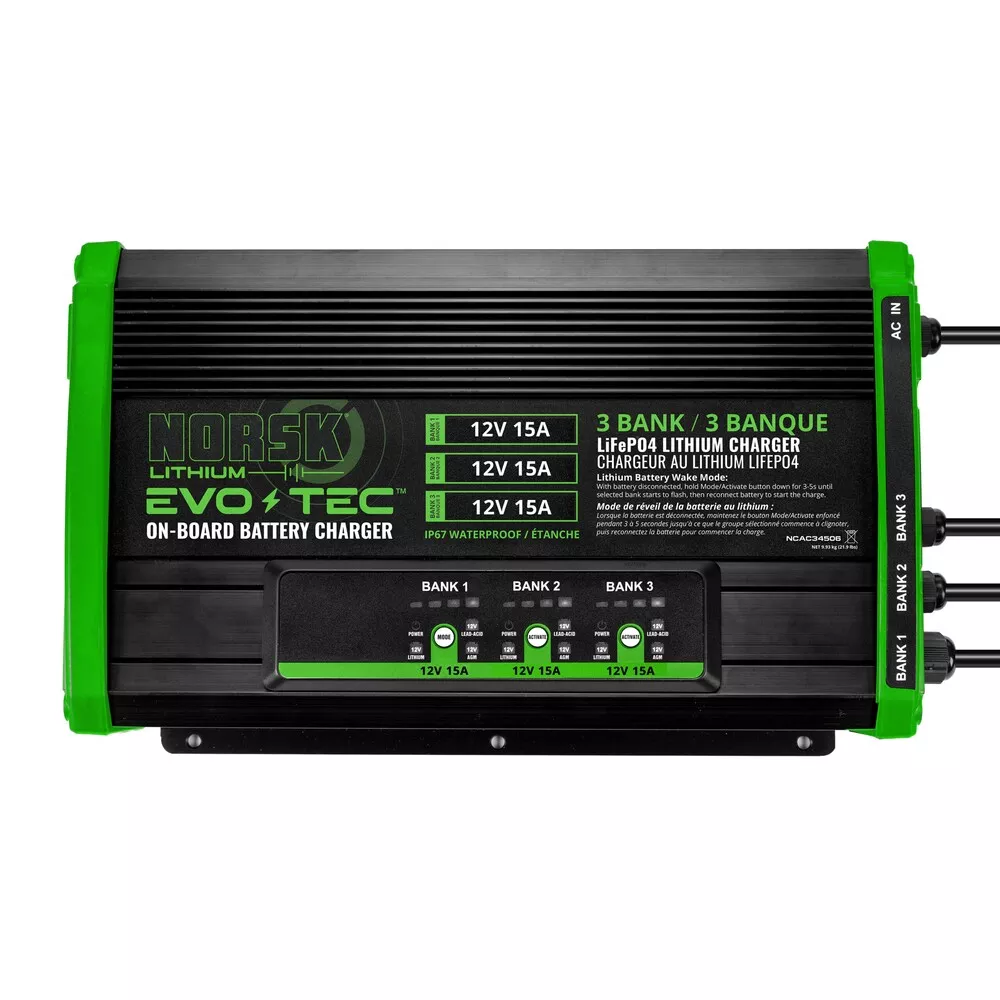

The Norsk Lithium EVO-TEC 12V 15A 3-Bank On-Board Charger (NCAC34506) from Nomadic Supply Company® is a high-output marine-grade on-board charger with three independent 12V banks each delivering 15 amps of charging current. Designed for boats running multiple 12V battery banks, this charger features selectable chemistry on Bank 1 for lithium, AGM, or lead-acid compatibility, IP67 waterproof construction with fully potted epoxy resin case, and comprehensive protection systems for reliable permanent marine installation.
Norsk Lithium EVO-TEC 12V 15A 3-Bank On-Board Charger (NCAC34506) Features:
- Three 15A Independent Banks. Three dedicated 12V banks each deliver 15 amps of charging current for fast, simultaneous charging of multiple battery banks.
- Selectable Chemistry on Bank 1. Switch between lithium, AGM, and lead-acid charging profiles for maximum compatibility with mixed battery configurations.
- Automatic Shutdown Protection. Each bank automatically stops charging when its battery reaches full capacity to prevent overcharging and extend battery life.
- IP67 Waterproof w/ Potted Case. Fully potted epoxy resin case provides waterproof, dust-tight, and vibration-resistant protection for permanent on-board installation.
- Comprehensive Protection Systems. Includes burnout protection, reverse connection protection, short circuit protection, and over-temperature protection with waterproof cooling fan.
- User-Friendly Interface. Easy-to-read display for monitoring charging status and making adjustments across all three banks.
Norsk Lithium EVO-TEC 12V 15A 3-Bank On-Board Charger (NCAC34506) Specifications:
- Rated Voltage: 12V + 12V + 12V
- Bank 1: Selectable Chemistry 12V @ 15A
- Bank 2: 12V @ 15A
- Bank 3: 12V @ 15A
- Input Voltage: 105-125V AC, 60Hz
- Weight: 23.15 lbs
- Dimensions: 16.50″ W x 9.50″ D x 4.00″ H
- Waterproof Rating: IP67
- Warranty: 2 years
