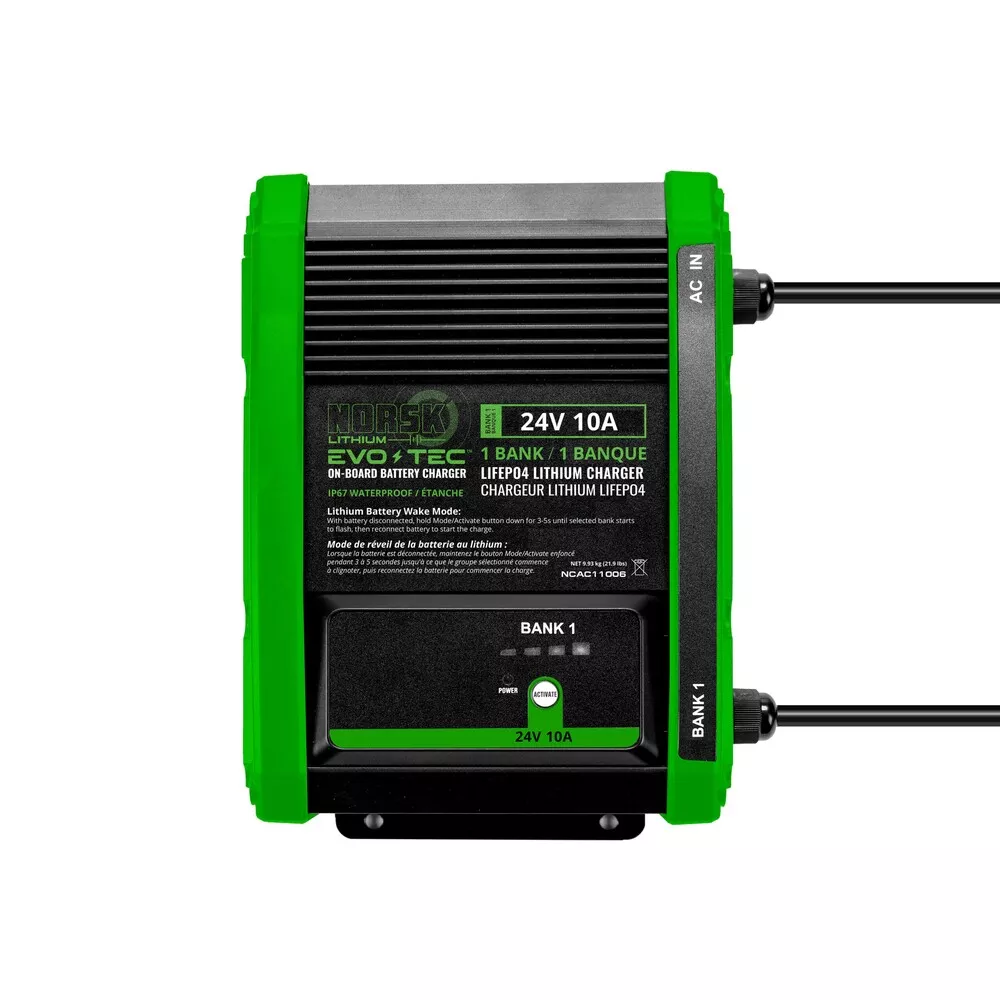

The Norsk Lithium EVO-TEC 24V 10A 1-Bank On-Board Charger (NCAC11006) from Nomadic Supply Company® is a marine-grade on-board charger engineered specifically for 24V lithium trolling motor batteries. Featuring IP67 waterproof construction with a fully potted epoxy resin case, automatic shutdown protection, and a waterproof cooling fan system, this charger delivers reliable 10-amp charging in the harshest marine environments.
Norsk Lithium EVO-TEC 24V 10A 1-Bank On-Board Charger (NCAC11006) Features:
- Automatic Shutdown Protection. Automatically stops charging when the battery reaches full capacity to prevent overcharging and extend battery life.
- Burnout Protection. Continuously monitors internal temperature and power flow, automatically shutting down if dangerous overload conditions are detected.
- Reverse Connection Protection. Detects improper battery cable connections and immediately prevents charging to avoid damage to the charger and battery.
- Fully Potted Epoxy Resin Case. Internal components are completely encapsulated in high-quality epoxy resin for superior resistance to moisture, dust, and vibration.
- IP67 Waterproof Rating. Completely dust-tight and rated for submersion up to 1 meter for 30 minutes, ideal for permanent on-board marine installation.
- Over Temperature Protection. Automatically reduces output current when the radiator reaches 80°C with a waterproof cooling fan that activates at 50°C for efficient heat management.
Norsk Lithium EVO-TEC 24V 10A 1-Bank On-Board Charger (NCAC11006) Specifications:
- Rated Voltage: 24V
- Bank Configuration: 1-Bank: 24V @ 10A
- Peak Output Voltage: 28.40V
- Input Voltage: 105-125V AC, 60Hz
- Weight: 8.8 lbs
- Dimensions: 7.50″ W x 9.50″ D x 4.00″ H
- Waterproof Rating: IP67
- Warranty: 2 years
