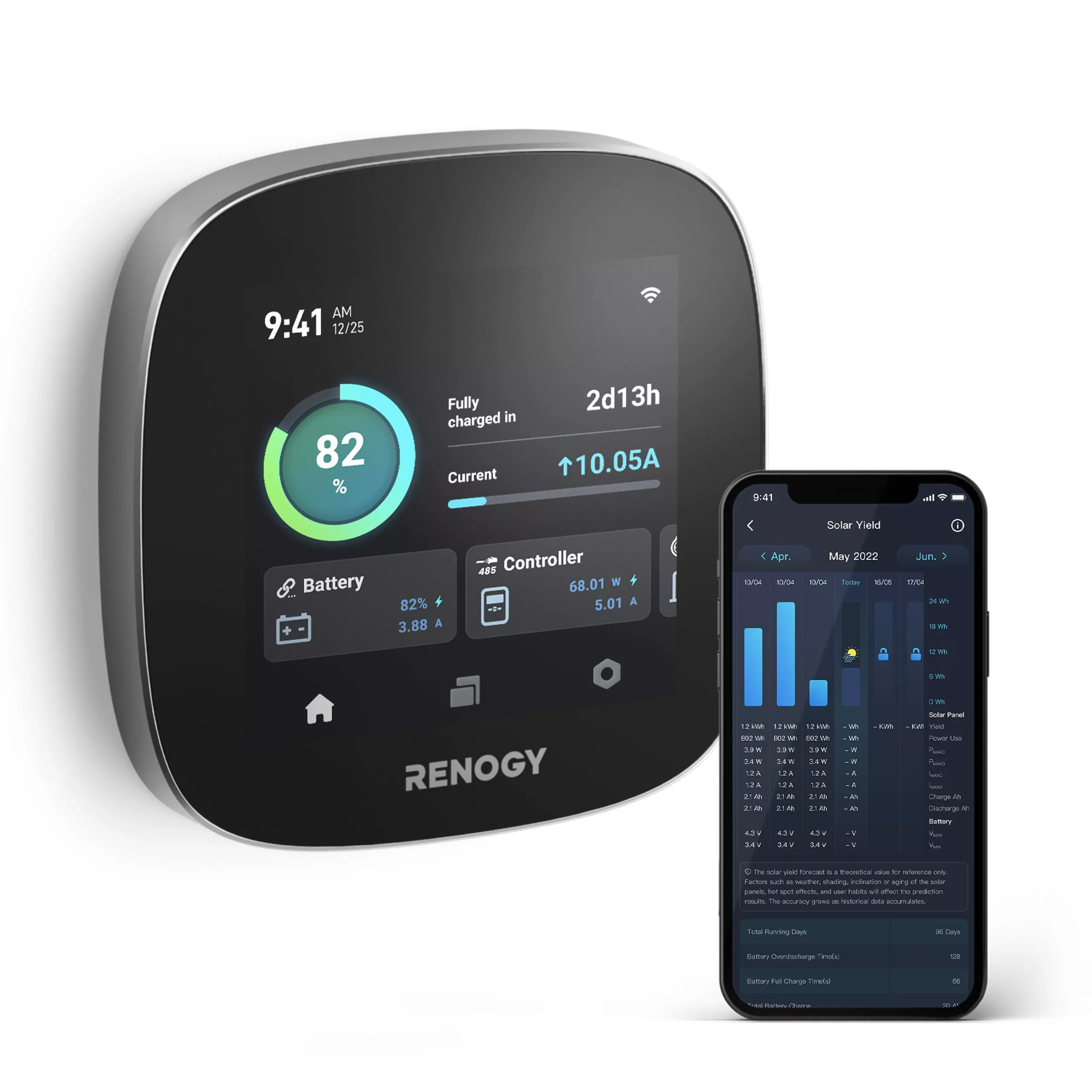

Dedicated to off-gridders, the Renogy ONE Core All-in-one Off-Grid Energy Monitor from Nomadic Supply Company® helps save money and reduce your carbon footprint by tracking energy generation and consumption. Renogy ONE Core All-in-one Off-Grid Energy Monitor also serves as a smart home hub, allowing you to connect your smart home appliances like door entry alerts or climate sensors, and enjoy added convenience and security of home automation.
Renogy ONE Core All-in-one Off-Grid Energy Monitor Features:
- Cloud-based energy monitoring worldwide.
- 24/7 energy analysis on multiple devices.
- Connect smart accessories for home automation.
- Easy installation with horizontal bubble.
Renogy ONE Core All-in-one Off-Grid Energy Monitor Specifications:
| ELECTRICAL DATA | |
|---|---|
| Operating Voltage | 8-35 VDC (5 VDC for USB Type-C) |
| Power Consumption at 12V | Operating, WiFi On, 100% illumination: 3.2 W Operating, WiFi On, 50% illumination: 2.4 W Operating, WiFi On, 0% illumination: 1.9 W Off, logger still active: 1.5 W |
| Communication | IEEE 802.11 a/b/g/n 2.4GHz & 5GHz Bluetooth LE and Bluetooth Mesh Zigbee 3.0 (IEEE 802.15.4) RS-485&CAN |
| Touch Screen | 4 inches (480 x 480p) |
| GENERAL DATA | |
| Model | RSHGWSN-W02W-G3 |
| Operating Temperature | -4℉ to 158℉ (-20℃ to 70℃) |
| Operating Humidity | 0% to 95% RH |
| Operating Altitude | Less than 5000m above sea level |
| Installation | Flush mount |
| Dimensions | 4.17 x 4.17 x 1.05 in (106 x 106 x 26.6 mm) |
| Weight | 0.28 lb (128g) |
| Certification | CE, FCC, RoHS, TSCA, BQB, IC-ID |
| Warranty | 2 years |
Energy efficiency at your fingertips
Dedicated to off-gridders, Renogy ONE Core helps save money and reduce your carbon footprint by tracking energy generation and consumption.
Distance is not a problem
Remote energy monitoring in various scenarios.
Make it a smart home
ONE Core also serves as a smart home hub, allowing you to connect your smart home appliances like door entry alert or climate sensors, enjoy added convenience and security of home automation.
Peace of mind with 24/7 security
Detect unexpected motions occurring in your RV, keep you alert and informed of anything suspicious.
Effortless installation
Step 1
Complete a hole using a 55mm diameter punch and get all components of the device stand.
Step 2
With an embedded horizontal bubble, it’s easy to achieve the horizontality of the device.
Step 3
Rotate, click clack, it’s done.
Renogy ONE M1 vs Renogy ONE Core
Renogy ONE Core All-in-one Off-Grid Energy Monitor FAQs:
How to I connect Renogy ONE Core with different types of batteries to set up a battery monitoring system?
The Renogy ONE Core can function as a power monitor when it is connected to Renogy batteries that support Bluetooth (built-in or with external BT-1/BT-2 modules) and RS-485.
Does Renogy ONE Core support RV-C？
Yes, the Renogy ONE Core G3 supports RV-C communication.
What is the operational altitude range for the Renogy ONE Core?
It can work normally at altitudes below 5000 meters.
Does Renogy ONE Core come with a shunt?
No, it does not come with a shunt, but it is compatible with the Shunt 300 if needed.
Does Renogy ONE Core support 5 GHz Wi-Fi network?
Yes. It supports 2.4 GHz Wi-Fi and 5 GHz Wi-Fi.
Does Renogy ONE Core support WPA3 encrypted Wi-Fi networks？
No. It does not support WPA3.
Is Renogy ONE Core compatible with third-party Zigbee 3.0 devices?
We cannot guarantee the compatibility between Renogy ONE Core and third-party Zigbee 3.0 smart home devices. Therefore, it is recommended to use smart accessories that have been authorized by Renogy with your Renogy ONE Core, such as Smart Plug, Motion Sensor, Door & Window Sensor, and Smart Relay.
Do the configured smart scenes in Renogy ONE Core still work when it is offline?
Yes, the configured smart scenes in Renogy ONE Core will still work when it is offline. Renogy ONE Core utilizes the Zigbee 3.0 protocol to establish wireless connections with smart accessories. When you set up a smart scene for home automation, the configuration is saved within the system of Renogy ONE Core. This means that even if the Wi-Fi network is unavailable, Renogy ONE Core can still communicate with and control smart accessories through Zigbee 3.0.
What kind of power systems can Renogy ONE Core work with?
Renogy ONE Core can be supplied by a 5V DC source via Type-C or an 8V to 35V DC source via the power cable. As for energy monitoring, Renogy ONE Core allows you to monitor power devices rated at 12V DC or 24V DC.
How long will Renogy ONE Core store the data locally?
Renogy ONE Core can store data locally for 30 days
Renogy ONE Core All-in-one Off-Grid Energy Monitor Documents:
Renogy ONE Core User Manual
Renogy ONE Core All-in-one Off-Grid Energy Monitor Owner’s Manual
