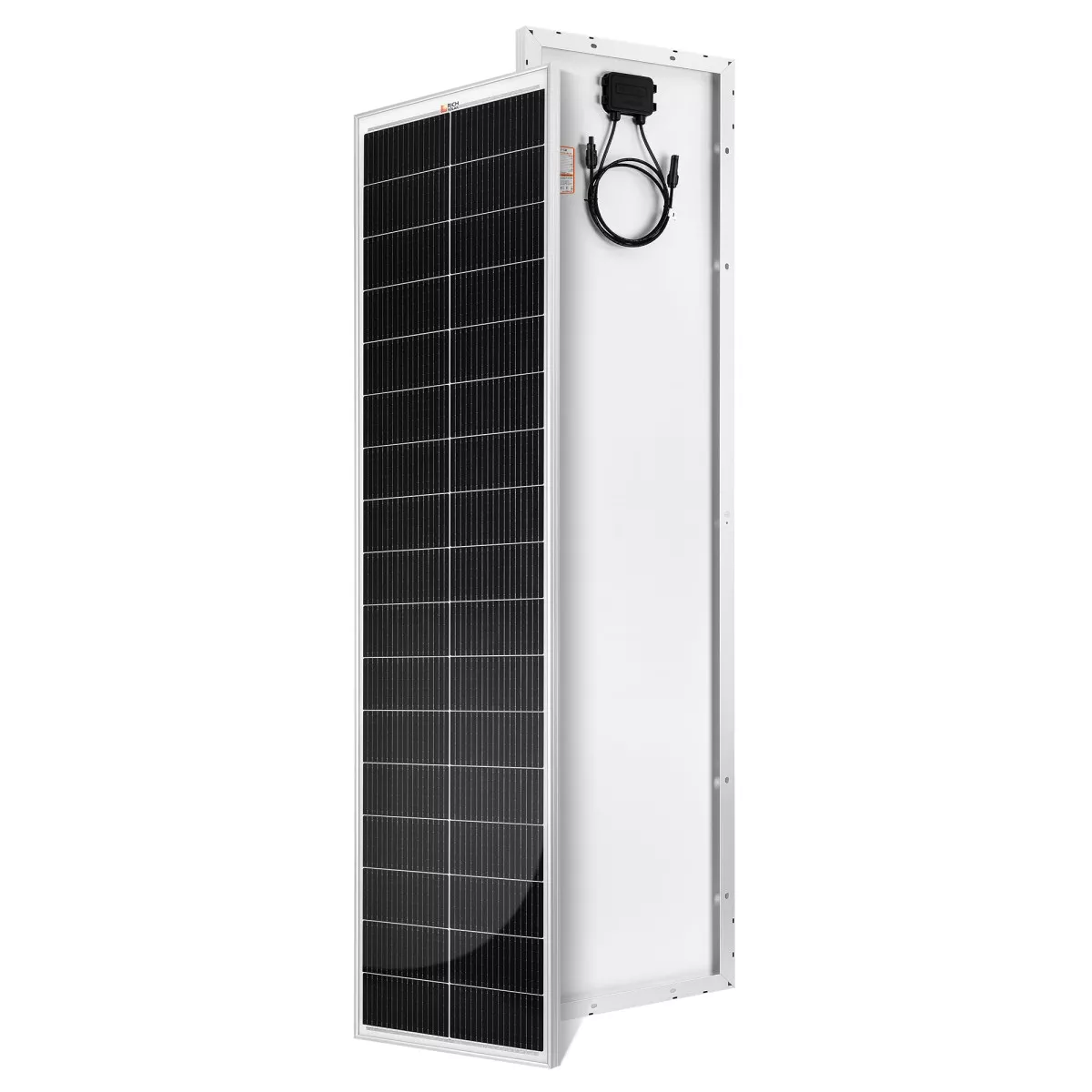

Rich Solar MEGA 130 SLIM 130W 12V Monocrystalline Solar Panel (RS-M130SL) from Nomadic Supply Company® is a high-output narrow-profile solar panel utilizing N-Type TOPCon monocrystalline cell technology for superior efficiency and low-light performance. At just 15.8 inches wide and delivering a full 130 watts, the Rich Solar MEGA 130 SLIM 130W 12V Monocrystalline Solar Panel (RS-M130SL) fits installations where standard-width panels cannot.
Rich Solar MEGA 130 SLIM 130W 12V Monocrystalline Solar Panel (RS-M130SL) Features:
- N-Type TOPCon Cell Technology. 16-busbar monocrystalline cells with up to 25.3% efficiency and 34-cell configuration produce 130W of reliable power from the Rich Solar MEGA 130 SLIM 130W 12V Monocrystalline Solar Panel (RS-M130SL).
- Narrow 15.8-Inch Profile. Slim design at 65.0 x 15.8 inches slides between roof-mounted equipment, making the Rich Solar MEGA 130 SLIM 130W 12V Monocrystalline Solar Panel (RS-M130SL) ideal for constrained RV and van rooftops.
- 19.8% Module Efficiency. High panel-level efficiency ensures maximum energy harvest from the available roof space compared to standard-efficiency alternatives.
- 3.2mm AR-Coated Tempered Glass. Anti-reflective tempered glass maximizes light capture and withstands 2,400 Pa wind loads, 5,400 Pa snow loads, and 35mm hail impact at 97 km/h.
- Strong Low-Light Performance. N-Type TOPCon cells maintain higher output in overcast, dawn, and dusk conditions compared to conventional P-Type panels.
- PID-Resistant with Double EL Inspection. Rigorous quality control with 100% electroluminescence testing on every cell ensures zero microcracks and long-term reliability.
- 12 Pre-Drilled Mounting Holes. Anodized aluminum frame with multiple mounting points accommodates Z-brackets, corner brackets, tilt mounts, and other common mounting hardware.
Rich Solar MEGA 130 SLIM 130W 12V Monocrystalline Solar Panel (RS-M130SL) Specifications:
- Maximum Power (Pmax): 130W
- Maximum Power Voltage (Vmp): 19.6V
- Maximum Power Current (Imp): 6.63A
- Open Circuit Voltage (Voc): 23.6V
- Short Circuit Current (Isc): 6.92A
- Module Efficiency: 19.8%
- Maximum System Voltage: 1,000V DC
- Maximum Series Fuse Rating: 15A
- Cell Type: N-Type TOPCon Monocrystalline (16-Busbar)
- Cell Configuration: 34 Cells
- Glass: 3.2mm AR-Coated Tempered
- Panel Cable Length: 3 feet (with connectors)
- Junction Box Rating: IP67
- Connector Rating: IP67
- Operating Temperature: -40°F to +185°F
- Dimensions: 65.0 x 15.8 x 1.2 inches
- Weight: 15.4 lbs
- Output Warranty: 25 Years
- Workmanship Warranty: 10 Years
Rich Solar MEGA 130 SLIM 130W 12V Monocrystalline Solar Panel (RS-M130SL) Documents:
Rich Solar MEGA 130 SLIM 130W 12V Monocrystalline Solar Panel (RS-M130SL) Specifications Sheet
Rich Solar MEGA 130 SLIM 130W 12V Monocrystalline Solar Panel (RS-M130SL) Rs M130slb
