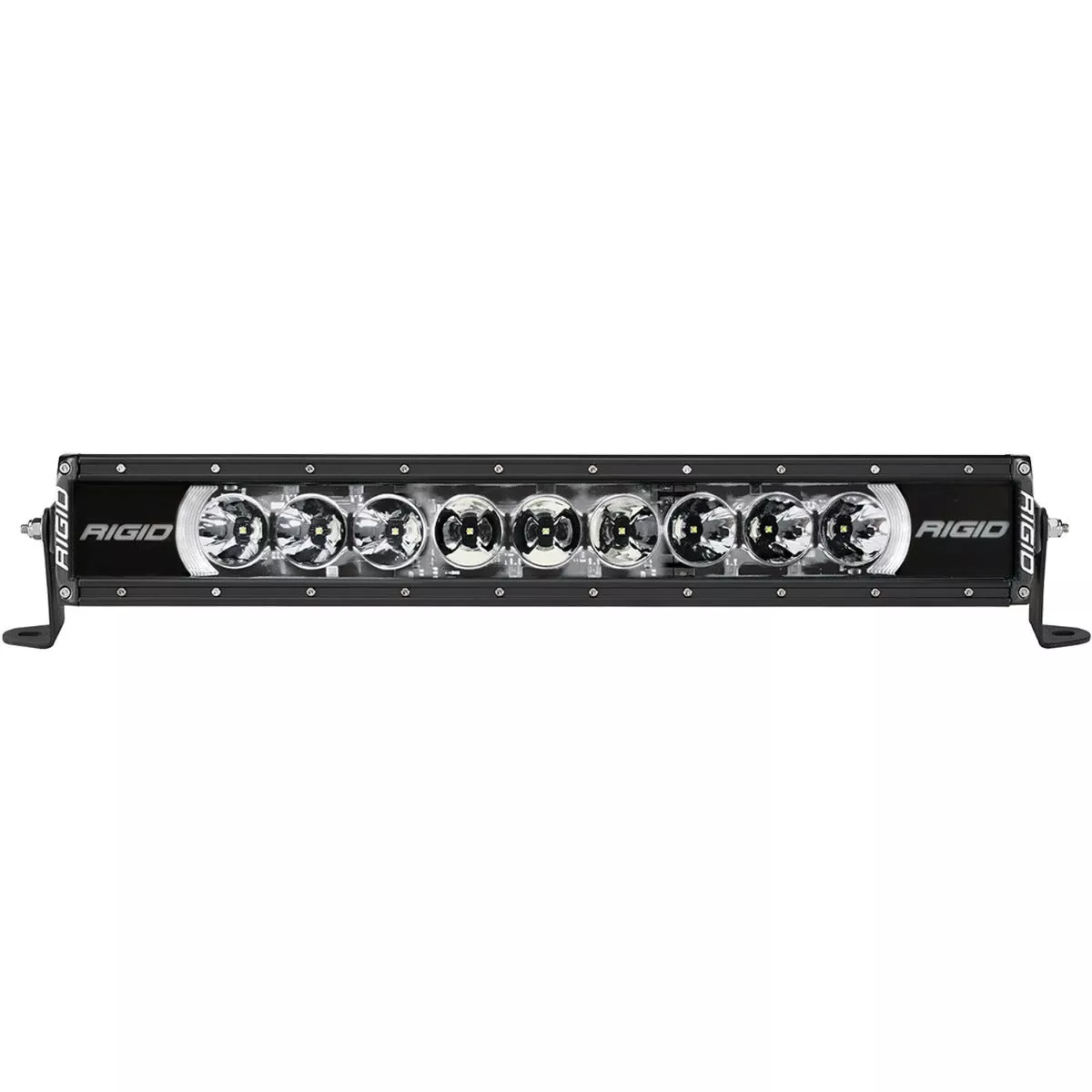

The RIGID Radiance Plus 20″ RGBW LED Light Bar (220053) from Nomadic Supply Company® combines the rugged E-Series housing with RIGID’s RGBW backlight system, offering eight selectable backlight colors all controlled independently from the forward-projecting Spot Drive main beam.
RIGID Radiance Plus 20″ RGBW LED Light Bar (220053) Features:
- 8-Color RGBW Backlight System. Toggle between Red, Green, Blue, Light Blue, Purple, Amber, White, and Demo Mode using standard switch logic — all backlight functions are independently controlled from the main forward beam.
- Spot Drive Forward Optics. Optimized forward-projecting Spot Drive optical system combines the long-range reach of a spot beam with the wider lateral coverage of a drive pattern.
- E-Series Compatible Housing. Built on the same high-grade aluminum alloy housing as RIGID’s legendary E-Series, accepting all E-Series light covers, mounting options, and vehicle-specific brackets.
- Black Exposed PCB Aesthetic. Distinctive black printed circuit board adds a premium visual detail visible through the polycarbonate lens, a signature element of the Radiance lineup.
- IP68 Dust and Water Ingress Protection. Fully submersible IP68 rating protects all internal electronics from dust, mud, and water ingress in the most demanding off-road conditions.
- Over/Under Voltage Protection. Onboard protection circuitry handles the voltage spikes and drops common in off-road and overland electrical systems.
- Pressure Equalizing Vent. Thermal cycling vent prevents internal moisture accumulation during temperature fluctuations in the field.
- 10-Year Warranty. Backed by RIGID’s industry-leading 10-year warranty against defects in materials and workmanship.
RIGID Radiance Plus 20″ RGBW LED Light Bar (220053) Includes:
- 1x RIGID Radiance Plus 20″ RGBW LED Light Bar (220053)
- Wiring harness
- Mounting brackets
- Media pack
RIGID Radiance Plus 20″ RGBW LED Light Bar (220053) Specifications:
- Raw Lumens: 7128 Lumens
- Power Draw: 76 Watt
- Amp Draw: 5.4 AMP
- Bar Length: 20.0″
- Lux at 10m: 1295.36
- Horizontal Beam Angle: 16°
- Backlight Options: 8 colors: Red, Green, Blue, Light Blue, Purple, Amber, White, Demo
- Operating Voltage: 9–15V DC
- Waterproof Rating: IP68 Compliant
- Housing Material: High-Grade Aluminum Alloy
- Lens Material: High Impact Polycarbonate
- Finish: Black Powder Coat
- Length: 23.25 in
- Width: 6.00 in
- Height: 6.00 in
- Weight: 8.20 lbs
- Warranty: 10 Year Warranty
- UPC: 849774035906
