Built for the job.
Low VOC rubberized undercoating is a premium, easy to apply, paintable, asphalt-free coating for sound dampening, chip resistance, rust and corrosion protection.

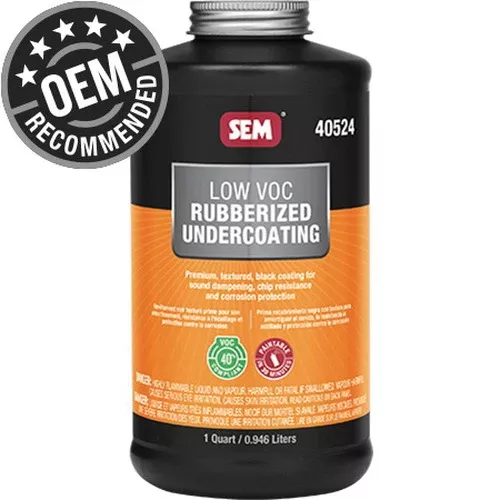

SEM 40524 Low VOC Rubberized Undercoating is a 1-qt black liquid designed for corrosion protection and sound dampening on vehicle frames and panels. It provides a flexible, rubberized barrier that adheres to metal and composite substrates in body shop repair applications.
The formulation delivers low VOC emissions at 588 g/L (4.90 lb/gal) while allowing 1-2 coats for full coverage on aluminum, steel, fiberglass, and SMC. The product’s flash point of 10 °C requires careful handling but enables rapid film formation once applied.
Due to acute toxicity, skin corrosion, eye damage, flammability, and respiratory hazards, operators must wear eye protection, gloves, protective clothing, and a respirator, and work in a well-ventilated area. Follow H225, H315, H319, H335, H340, and H350 safety statements for safe use.
Why Pros Choose SEM Low VOC
- Paintable without bleed through
- Pinhole free
- 100% asphalt free
- Sound dampening properties
- Chip and corrosion resistant
- Aerosol includes straw for tight spots
Application Guide
- Clean the substrate thoroughly; remove all grease, oil, dirt, and loose material.
- Confirm the surface is one of the compatible substrates: aluminum, fiberglass, SMC, or steel.
- Apply the rubberized undercoating in a continuous film using a suitable spray gun or brush.
- Apply 1 – 2 coats as required for coverage; allow each coat to dry before applying the next.
Specifications
| Part No. | 40524 |
|---|---|
| Product Line | SEM |
| MFR Model | 40524 |
| Standard/Approvals | California Pro65 Warning: Cancer | GHS and OSHA Hazard |
| Manufacturer | SEM |
| UPC | 646786405242 |
| Brand | SEM® |
| Rubberized | No |
| Solids Content | 37.2% |
| Color | Black |
| Container Size (qt) | 1 |
| Container Type | Can |
| Form | Liquid |
| Type | Low VOC |
- VOC
- 588 g/L (4.90 /gal)
- Compatible Substrates
- Aluminum, Fiberglass, SMC, Steel
- Number of Coats
- 1-2
About SEM
SEM Products specializes in paint adhesion systems, flexible coatings, and plastic repair — the go-to choice for interior and trim refinishing.
Frequently Asked Questions
What substrates can SEM® 40524 Low VOC Rubberized Undercoating be applied to?
The product is compatible with aluminum, fiberglass, SMC (sheet-molded composite), and steel.
How many coats are recommended for proper coverage?
Apply 1 – 2 coats as needed to achieve the desired thickness.
What personal protective equipment is required when handling this undercoating?
Wear eye protection, chemical-resistant gloves, protective clothing, and a respirator approved for organic vapors. The material has a flash point of 10 °C and presents acute toxicity, skin corrosion, eye damage, flammability, and other hazards.
