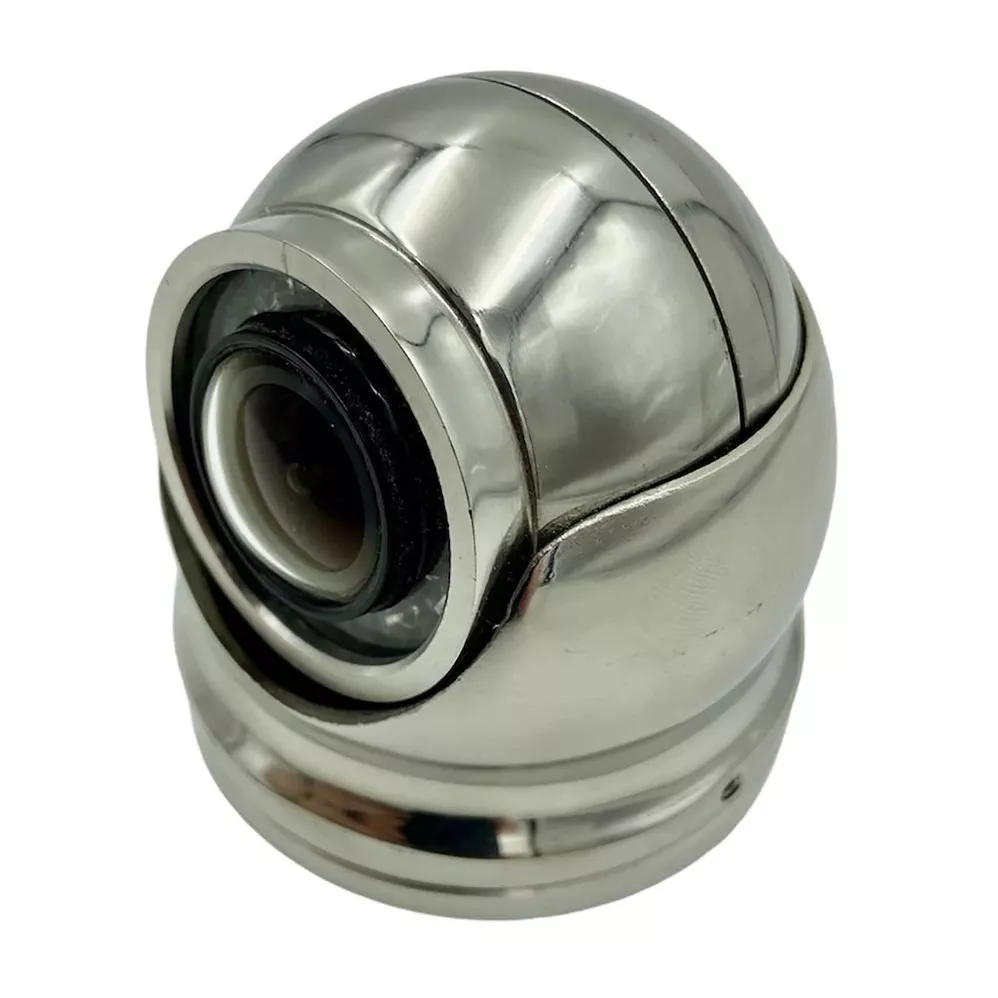

Simrad CAM-1 Stainless Steel Marine Grade IP Camera

The Simrad CAM-1 Stainless Steel Marine Grade IP Camera from Nomadic Supply Company® is a marine electronics accessory designed for seamless integration with Simrad navigation systems.

Simrad CAM-1 Stainless Steel Marine Grade IP Camera Features:

• Pre-configured for use with Simrad, Lowrance and B&G MFDs
• Fast setup on each MFDs
• Rugged 316 Marine Grade Stainless Steel Housing
• 1.8mm 160° viewing angle – See the entire deck
• Compatible with NOS 20.2 or later
• Built In IR LED Illumination (10m Range)
• PoE IEEE802.3af Power Option
• Extremely Low Power Consumption
• IP66 Environmental Protection

Simrad CAM-1 Stainless Steel Marine Grade IP Camera Specifications:

• Power PoE: IEEE802.3af (RJ45)
• DC: 12V DC (10-16V) DC 2.1/5.5mm Male CCTV power connector
• Power Consumption IR LED Off: 1.38W (0.1A at 13.8V DC)
• IR LED On: 2.76W (0.2A at 13.8V DC)
• Enviromental Operating temperature: -30°C to +60°C (-22°F to 140°F)
• IP Rating: IP66
• Resolution Main stream: 1080p (1920×1080)
• Sub Stream: 448p (800×448)
• Protocol: RTSP
• Mechanical Lens: 1.8mm (160° Wide Angle)
• Sensor: 1/4″ CMOS
• Housing: 316 Stainless steel
• Weight: 420g
• MFD resolutions capabilities: NSSevo3S, Zesu3S (9,12, 16): High Resolution 1080p
• NSOevo3S MFDs, Zeus3S MFDs: High Resolution 1080p
• NSOevo3S MPU, Zeus3S MPU: High Resolution 1080p
• Information Display (9 & 12): Low Resolution 448p
• NSSevo3, Zeus3 (7 & 9): Low Resolution 448p
• NSOevo3 MFD, Zeus3 MFD: Low Resolution 448p
• NSOevo3 MPU, Zeus3 MPU: Low Resolution 448p
• Zeus2 MPU: Low Resolution 448p
