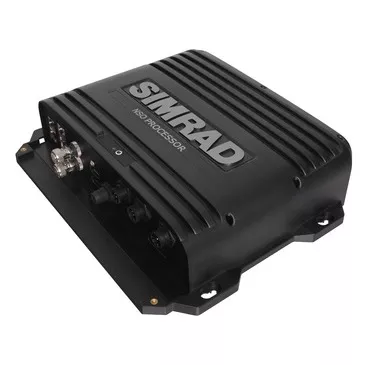

The Simrad NSO evo3S MPU Only (000-15100-001) from Nomadic Supply Company® is a multifunction display built for navigation, fishfinding, and full system integration aboard any vessel.
Simrad NSO evo3S MPU Only (000-15100-001) Features:
- Large-Screen Navigation System
- Multi-TouchSensible (with compatible display)
- Dual Independent Video Output
- Full HD Video
- Performance Module compatibility
- Cartography Choice
- Smaller, lighter design
- Quad-Core Processing Power
- Independent HDMI output ports allow different setups on each display
- 2 x Quad core processors
- Dedicated processor per monitor gives superior speed and chart draw performance
- Control both NSO evo3S MPU monitors direct from your Ipad or Android Tablet.
- Multi zoom touch gestures
- Naviconics Depth Highlight range
- Naviconics shallow water highlight
- AIS Sarts
- Fusion Link Audio Device Support
- Grib Weather
- Flir Camera integration
- GS25 Antenna Configuration
Simrad NSO evo3S MPU Only (000-15100-001) Includes:
- NSO evo3S MPU
- Power Cable
- RJ45-Yellow Round Ethernet adapter cable RJ45M / 5PinF
- NSO evo2 NMEA0183/Touch Monitor serial cable 2 m (6.5 ft) Eight core cable
- N2KEXT-6RD – 1.82 m (6-ft) NMEA 2000® cable
- N2K-PWR-RD – NMEA 2000® power cable. Includes power cable and 1 x T connector
- TR-120-KIT – Set of 1 male and 1 female NMEA 2000® terminators
- N2K-T-RD – Micro-C T-connector for connection of an additional network device x 2
- NSO evo2 Installation Kit
- Documentation
Simrad NSO evo3S MPU Only (000-15100-001) Specifications:
- Mechanical / Environmental
Casing: ABS Plastic - Operating Temp: -15°C to +55°C
- water ingress: IPx2
- Weight: 1060g
- dimensions (overall): 281mm (W) x 232mm (H) x 65.5mm (D)
- Electrical
Operating voltage: 9 – 31.2 V DC - Power consumption: 45W (Max)
- Low power standby mode: yes
- Protection: reverse polarity and temporary over-voltage to 36V
- Alarm output current: capable of driving 10A relay coil
- Processor: iMX61 quad core
- RAM: DDR3 1GB
- Storage: 8GB Flash
- Conformity: CE, C-Tick, HDMI
- Interfaces
ethernet: 3 ports total – 1 & 2 are PoE (RJ45 socket) - NMEA 2000: 1 port on rear (Micro-C male)
- Video input: 2 ports on rear (BNC female. NTCS or PAL format)
- Video output: 1024×768 (XGA 4:3), 1280×720 (HD 16:9),
- USB: mass storage, keyboard and mouse (Type A socket)
- SD: 32GB (Full size SD card socket)
- NMEA 0183 baud rate: 4800, 9600, 19200, & 38400 (via proprietary cable)
- NMEA 0183 via RS232: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
- charting support: Navionics, CMAP, Insight, NV Charts on SD
