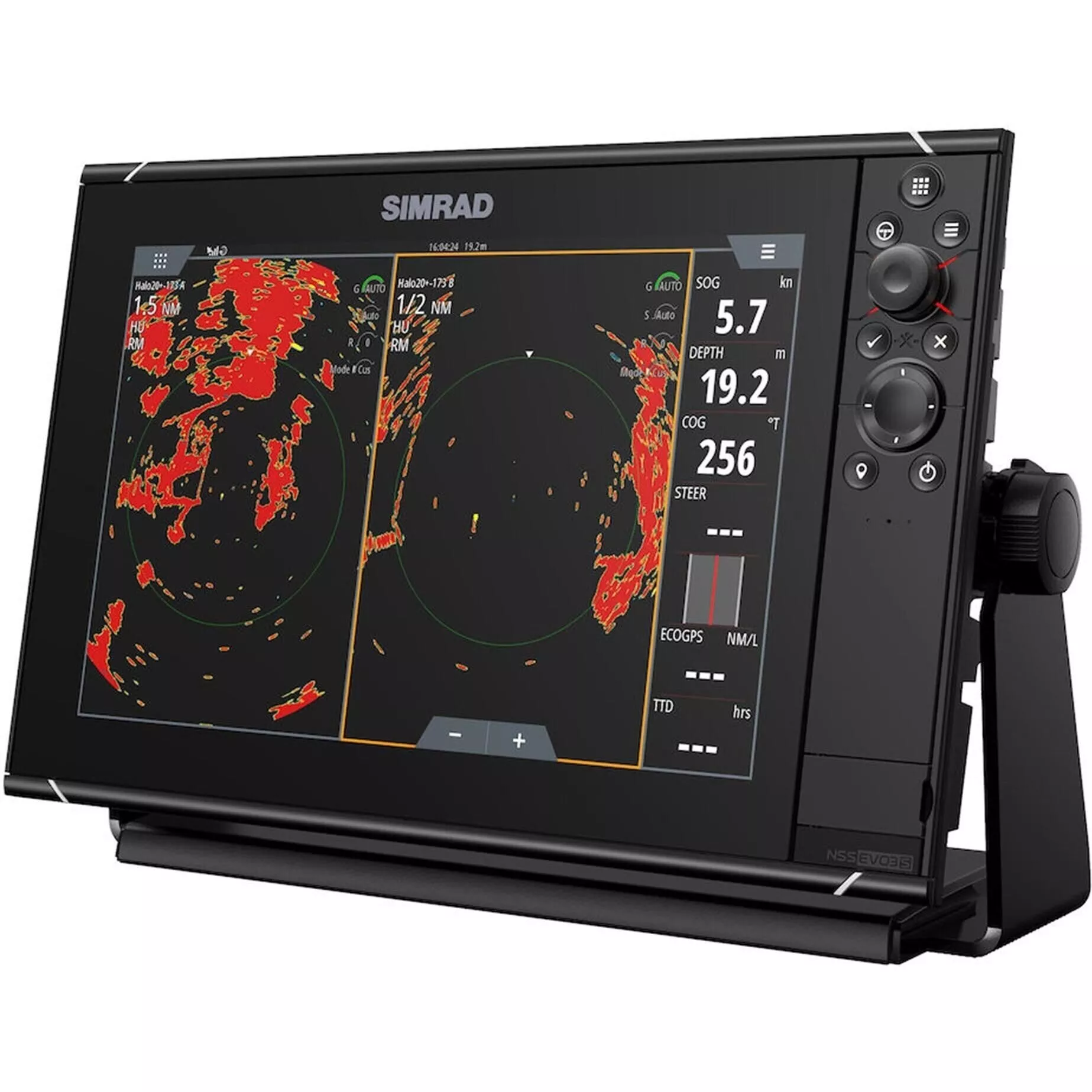

Simrad NSS12 evo3s Combo MFD w/ C-Map US Enhanced Map (000-15403-002)

The Simrad NSS12 evo3s Combo MFD With C-Map US Enhanced Map (000-15403-002) from Nomadic Supply Company® is a mid-life update to the NNS evo3S. The key difference is a next generation processor. This greatly improves the speed and smoothness of the display. The NNS evo3S is already a feature packed product and the new processor in the NNS evo3S means that each one of those features is now improved.

Simrad NSS12 evo3s Combo MFD w/ C-Map US Enhanced Map (000-15403-002) Features:

• High Resolution, High Bright, SolarMax IPS Displays
• Easy to use touchscreen UI as well as full keypad for simple and precise control in any sea conditions
• Built-in advanced echosounder capable of 1kW Dual channel CHIRP, Forwardscan, Sidescan, Downscan and StructureScan 3D images
• Take another step forward with Simrad’s premium network modules for the ultimate offshore performance
• Halo Dome and Open Array Radars: S5100 Sportfishing Echosounder, Direct audio, autopilot and engine connection and control
• Low profile glass dash styling
• Built in Wi-Fi connectivity
• Next Generation Processor
• SolarMAX IPS Display Technology
• Multi-touch screen and keypad hybrid control
• Built-in Advanced Echosounder

Simrad NSS12 evo3s Combo MFD w/ C-Map US Enhanced Map (000-15403-002) Includes:

• NSS evo3S 12″ Display
• NSS12 EVO3 & ZEUS3 – 12 DASH MOUNT KIT
• NSS12 EVO3/3S & ZEUS / S-12 MOUNTING BRACKET
• NSS12 EVO3 & ZEUS3 — 12 EDGE BEZELS
• Power Cable

Simrad NSS12 evo3s Combo MFD w/ C-Map US Enhanced Map (000-15403-002) Specifications:

• Physical Dimensions: 352 x 225 x 98 mm (13.84 x 8.87 x 3.82″)with bracket: 377 x 241 x 120 (14.85 x 9.47 x 4.71)
• Weight: 3.10kg/6.83lb
• Environmental Operating temperature range: -15°C to +55°C (5° F to 131° F)
• Environment Shock Vibration: 100,000 cycles of 20G
• Storage temperature range: -20°C to +60°C (4°F to 140°F)
• Water resitance: IPX6 and 7
• Power Supply voltage: 10 – 31.2 V DC
• Fuse rating: 5A
• Power consumption (Max): 28W
• Display Display backlight color: White
• Display resolution: 800 x 1280
• Display screen brightness: 1200 nits
• Display size and type: High Visibility SolarMax HD® IPS 7″ optically bonded TFT
• Display viewing angles: 80° top/bottom, 80° left/right
• Connectivity Ethernet: 2 x 5 pin yellow connector x 1 Mbit
• Bluetooth: Internal
• NMEA2000 connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
• NMEA 0183 connectivity: 1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-00129-001)
• Video connectivity: 2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001).
• WiFi connectivity: Internal
• Sonar Sonar frequencies: 40-250kHz 455-800kHz
• Sonar max depth: 3000’+ (tested with B175L)
• Sonar output power: 1kW RMS
• Compliance: Compliance
• GPS GPS: Internal
• GPS update rate: 10 Hz
• GPS channels: 34
• GPS correction: WASS, EGNOS, MSAS, GLONASS
• GPS position accuracy: Horizontal Accuracy 3 m (9.8 ft)
• GPS time to first fix: Cold start 50 sec, Satellite Reacquisition 5 sec
