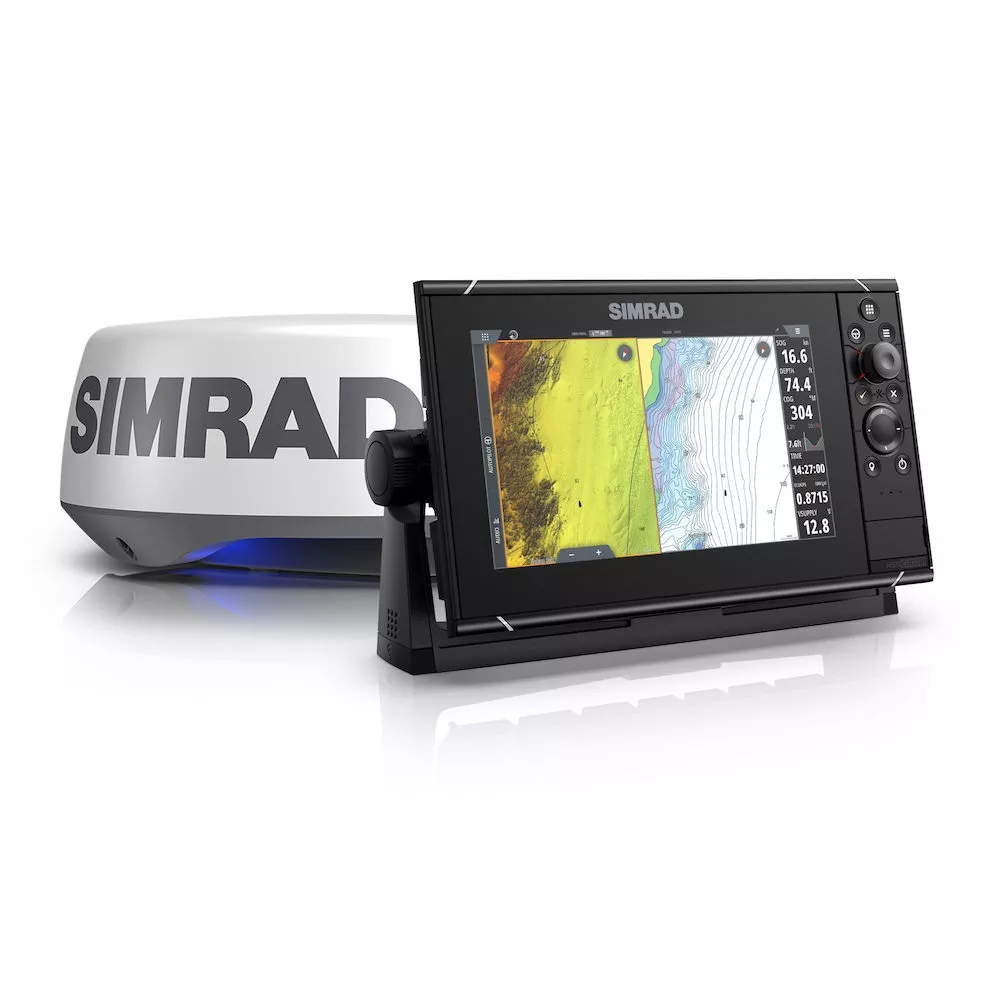

The Simrad NSS9 evo3s Radar Bundle C-Map Enhanced & Halo20+ (000-15554-001) from Nomadic Supply Company® is a complete radar bundle combining chart plotting, fishfinding, and radar in a single integrated package.
NSS evo3S is a mid-life update to the NSS evo3. The key difference is a next generation processor. This greatly improves the speed and smoothness of the display. The NSS evo3 is already a feature packed product and the new processor in the evo3S means that each one of those features is now improved
Simrad NSS9 evo3s Radar Bundle C-Map Enhanced & Halo20+ (000-15554-001) Features:
- High Resolution, High Bright, SolarMax IPS Displays
- Easy to use touchscreen UI as well as full keypad for simple and precise control in any sea conditions
- Built-in advanced echosounder capable of 1kW Dual channel CHIRP, Forwardscan, Sidescan, Downscan and StructureScan 3D images
- Take another step forward with Simrad’s premium network modules for the ultimate offshore performance
- Halo Dome and Open Array Radars: S5100 Sportfishing Echosounder, Direct audio, autopilot and engine connection and control
- Low profile glass dash styling
- Built in Wi-Fi connectivity
- Next Generation Processor
- SolarMAX IPS Display Technology
- Multi-touch screen and keypad hybrid control
- Built-in Advanced Echosounder
Simrad NSS9 evo3s Radar Bundle C-Map Enhanced & Halo20+ (000-15554-001) Includes:
- HALO20+,SIMRAD,20,RADAR
- Scanner cable, 10 m (33 ft)
- Cable, RJ45 TO 5 PIN,1.5 m (4.9 ft)
- NSS9 EVO3S COMBO
- NSS9 EVO3 SUN COVER
- NSS9 EVO3 & ZEUS– 9 Mounting Bracket
- NSS9 EVO3 & ZEUS3 – 9 DASH MOUNT KIT
- NSS9 EVO3 & ZEUS3 — 9 EDGE BEZELS
- Power Cable
Simrad NSS9 evo3s Radar Bundle C-Map Enhanced & Halo20+ (000-15554-001) Specifications:
- Physical
Dimensions: 287 x 166 x 90 mm (11.30 x 6.55 x 3.50″)with bracket 311 x 180 x 95 (11.30 x 7.07 x 3.72) - Weight: 1.41kg/3.11lb
- Environmental
Operating temperature range: -15°C to +55°C (5° F to 131° F) - Environment Shock Vibration: 100,000 cycles of 20G
- Storage temperature range: -20°C to +60°C (4°F to 140°F)
- Water resitance: IPX6 and 7
- Power
Supply voltage: 10 – 31.2 V DC - Fuse rating: 5A
- Power consumption (Max): 21W
- Display
Display backlight color: White - Display resolution: 600 x 1280
- Display screen brightness: 1200 nits
- Display size and type: High Visibility SolarMax HD® IPS 7″ optically bonded TFT
- Display viewing angles: 80° top/bottom, 80° left/right
- Connectivity
Ethernet: 1 x 5 pin yellow connector x 1 Mbit - Bluetooth: Internal
- NMEA2000 connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
- NMEA 0183 connectivity: 1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-00129-001)
- Video connectivity: 2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001).
- WiFi connectivity: Internal
- Sonar
Sonar frequencies: 40-250kHz 455-800kHz - Sonar max depth: 3000’+ (tested with B175L)
- Sonar output power: 1kW RMS
- Compliance: Compliance
- GPS
GPS: Internal - GPS update rate: 10 Hz
- GPS channels: 34
- GPS correction: WASS, EGNOS, MSAS, GLONASS
- GPS position accuracy: Horizontal Accuracy 3 m (9.8 ft)
- GPS time to first fix: Cold start 50 sec, Satellite Reacquisition 5 sec
