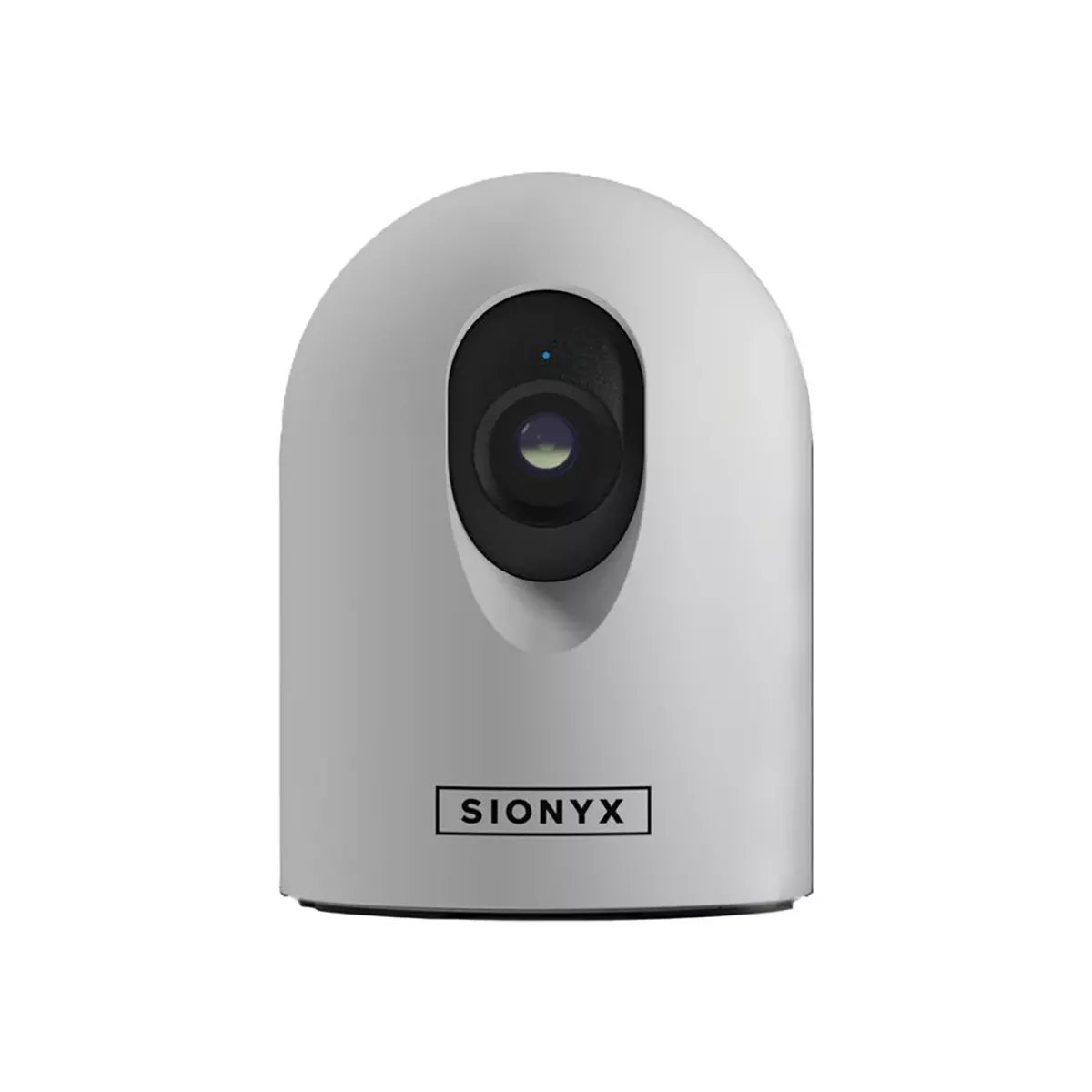

The Sionyx Nightwave Digital Night Vision Marine Navigational Camera (White) (C018800) from Nomadic Supply Company® is the next generation of ultra-low-light marine imaging. Sionyx Nightwave Digital delivers unmatched clarity—even in moonless starlight—thanks to the enhanced IP (PoE) digital connectivity and advanced Black Silicon CMOS sensor, outshining traditional thermal cameras.
The Sionyx Nightwave Digital Night Vision Marine Navigational Camera (White) (C018800) offers higher resolution, greater reliability, and seamless integration with networked MFD systems. With flexible mounting options and an intuitive setup, it’s built for captains who want safety without complexity. Less guesswork, more peace of mind.
Whether cruising, fishing, or docking after dark, the Sionyx Nightwave Digital Night Vision Marine Navigational Camera (White) (C018800) helps you stay safe—and enjoy every moment on the water.
Sionyx Nightwave Digital Night Vision Marine Navigational Camera (White) (C018800) Features:
- Seamless integration with all major brand MFDs
- Network (POE) compatibility
- Engineered for large screens (higher resolution)
- Connectivity with app control via Wi-Fi
- One camera to multiple MFDs or multiple cameras to one MFD
Sionyx Nightwave Digital Night Vision Marine Navigational Camera (White) (C018800) Includes:
- Nightwave Digital – White
- Camera cable (10m)
- Network Ethernet cable (2m)
- Power 2/16 cable (2m)
- RJ45 terminal x 2
- Cable zip tie
DETECTION RANGE
MAN-SIZED OBJECT 300 M / 984 FT
MARINE VESSEL 4.02 KM / 2.5 MILES
LOW-LIGHT SENSOR
IMAGE SENSOR COLOR XQE1350 BSI CMOS
RESOLUTION 1280 X 1024
FRAME RATE UP TO 30HZ
MIN ILLUMINATION MOONLESS STARLIGHT (<0.001 LUX)
FOCUS RANGE FIXED 10M TO INFINITY
HORIZONTAL FIELD OF VIEW 44°
DAY & NIGHT AUTO DAY/NIGHT FILTER
VISIBLE SPECTRUM 400-1200 NM
LENS 16MM F/1.4
PHYSICAL PROPERTIES
WEIGHT: 1 KG [2.2 LBS]
DIMENSIONS: 127 X 175 MM [5 X 6.9 IN]
MATERIAL: UV RESISTANT POLYCARBONATE
MOUNTING OPTIONS: BALL UPRIGHT OR BALL DOWN 4 BOLT PATTERN INTO FIBERGLASS/WOOD/METAL OR 4 ¼-20 PATTERN INTO BASE
SYSTEM
POWER POE: [37–57 VDC / TYP 48 VDC]
CONSUMPTION: 5W NOMINAL
IMAGE SETTINGS: BRIGHTNESS, CONTRAST, SHARPNESS, SATURATION, DAY & NIGHT, HDR, ORIENTATION, NOISE REDUCTION
MOBILE APP: IOS & ANDROID, WI-FI + BLUETOOTH, SOFTWARE UPDATES, IMAGE SETTINGS
IP VIDEO OUT: H264 MAIN PROFILE MAIN: 1280 X 1024 / SUB : 640 X 512, 30 FPS, 30 GOP
ENVIRONMENTAL
OPERATING TEMPERATURE: -20°C TO +50°C
STORAGE TEMPERATURE: -30°C TO +70°C
WATER INGRESS: IP67
SHOCK & VIBRATION: 20G VERTICAL, 10G HORIZONTAL, IEC 60945; MIL-STD-810E
WIND: 100 MPH (161 KPH)
SOLAR UV EXPOSURE: MIL-STD-810G
NETWORK COMPATIBILITY
GARMIN | RAYMARINE | NAVICO (SIMRAD) | WINDOWS PC | MAC
Sionyx Nightwave Digital Now Compatible with Raymarine Axiom Running LightHouse OS
As of June 30, 2026, the Sionyx Nightwave Digital is now compatible with Raymarine Axiom chartplotters running LightHouse OS, expanding its support to all three major MFD platforms. The Nightwave Digital is a certified partner in Raymarine’s LightHouse Apps & Integrations ecosystem — the camera is automatically discovered on your vessel network with no separate controller box required.
At the heart of the Nightwave Digital is NightIQ™, SIONYX’s onboard image-processing platform. NightIQ™ ships with four precision display presets calibrated for real-world marine conditions:
- Harbor — balanced imaging for ports and marinas with mixed ambient dock lighting
- Dark Night — maximum low-light sensitivity for open-water offshore passages
- High Contrast — sharpened edge definition for identifying channel markers and navigation hazards
- Day — full-daylight optimization for 24-hour, round-the-clock operation
The Bright-Lights Region of Interest (ROI) feature automatically detects and compensates for glare from oncoming vessels, dock lights, and AIS targets — preserving your low-light situational awareness when you need it most. Whether you’re on a Raymarine Axiom, Garmin, or Navico (SIMRAD) chartplotter, the Nightwave Digital delivers a certified, fully integrated night vision solution across all three platforms.
