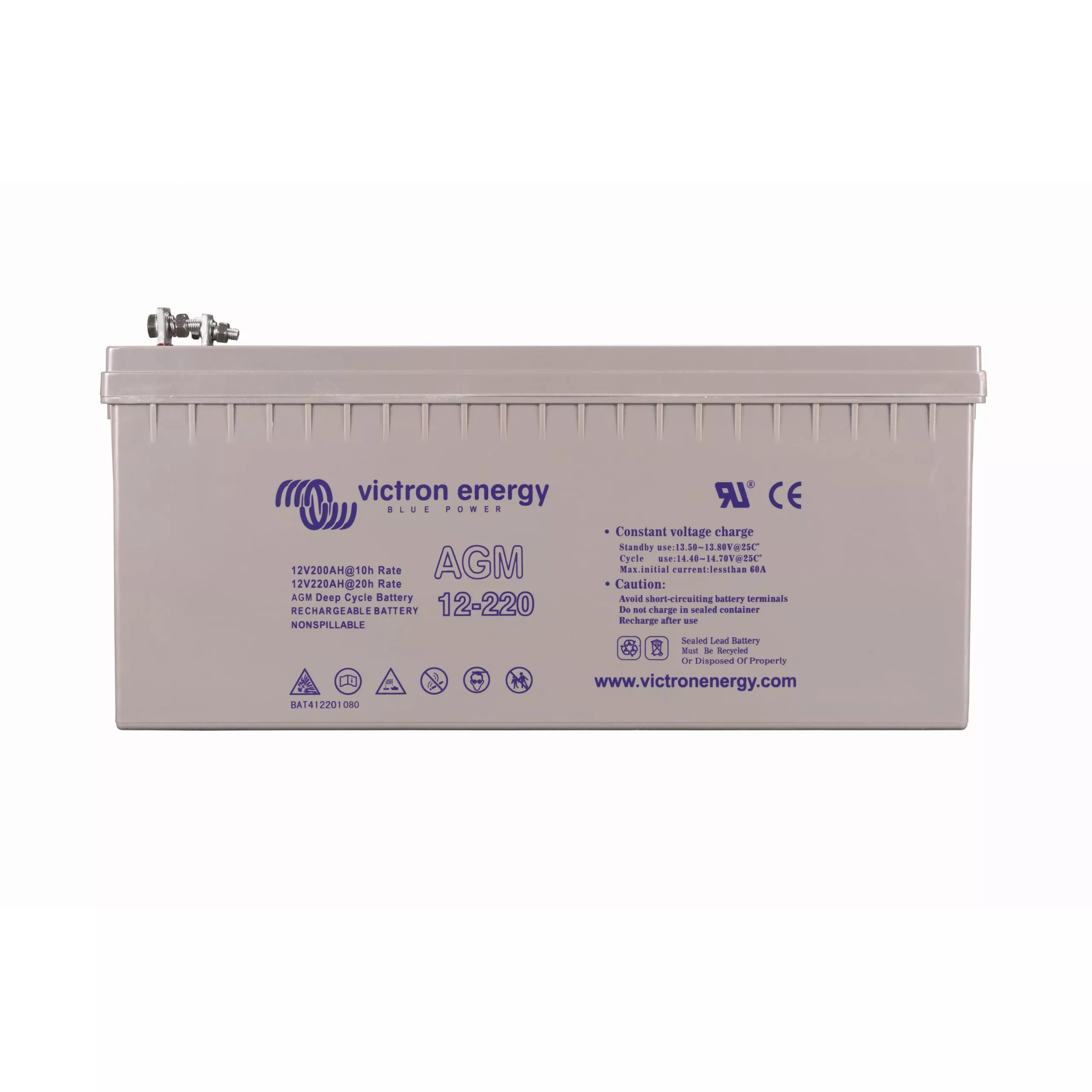

The Victron Energy 12V/220Ah AGM Deep Cycle Battery Battery (BAT412201084) from Nomadic Supply Company® is ultra-high capacity 12V 220Ah AGM deep cycle battery providing maximum energy storage for large marine, RV, and stationary power systems. This industrial-grade battery ensures consistent, reliable power delivery for demanding applications requiring extended runtime and heavy current discharge.
Victron Energy 12V/220Ah AGM Deep Cycle Battery (BAT412201084) Features:
- AGM deep cycle design for superior long-term reliability
- Very low internal resistance enables efficient power delivery
- Ideal for large marine systems, RVs, and solar installations
- High-purity materials minimize self-discharge
- VRLA sealed design eliminates maintenance
- Can be stored for extended periods without charging
- CE and UL compliant with ABS fireproof container
- Suitable for high-demand inverter and thruster applications
- Industrial-strength construction for demanding environments
- M8 copper terminals guarantee superior connections
Victron Energy 12V/220Ah AGM Deep Cycle Battery (BAT412201084) Specifications:
| Voltage | 12V |
| Capacity | 220Ah (C20 rate) |
| Terminal Type | M8 drilled flat copper |
| Dimensions (L x W x H) | 522 x 238 x 240 mm |
| Weight | 65 kg |
| Cold Cranking Amps | 1400A |
| Float Design Life | 7-10 years at 20°C |
| Cycle Life @ 80% DoD | 400 cycles |
| Cycle Life @ 50% DoD | 600 cycles |
| Cycle Life @ 30% DoD | 1500 cycles |
| Self-Discharge Rate | <2% per month at 20°C |
| Warranty | 2 years worldwide |
Victron Energy 12V/220Ah AGM Deep Cycle Battery (BAT412201084) Documents:
AGM & Gel Battery Datasheet
Victron Energy 12V/220Ah AGM Deep Cycle Battery (BAT412201084) Datasheet
