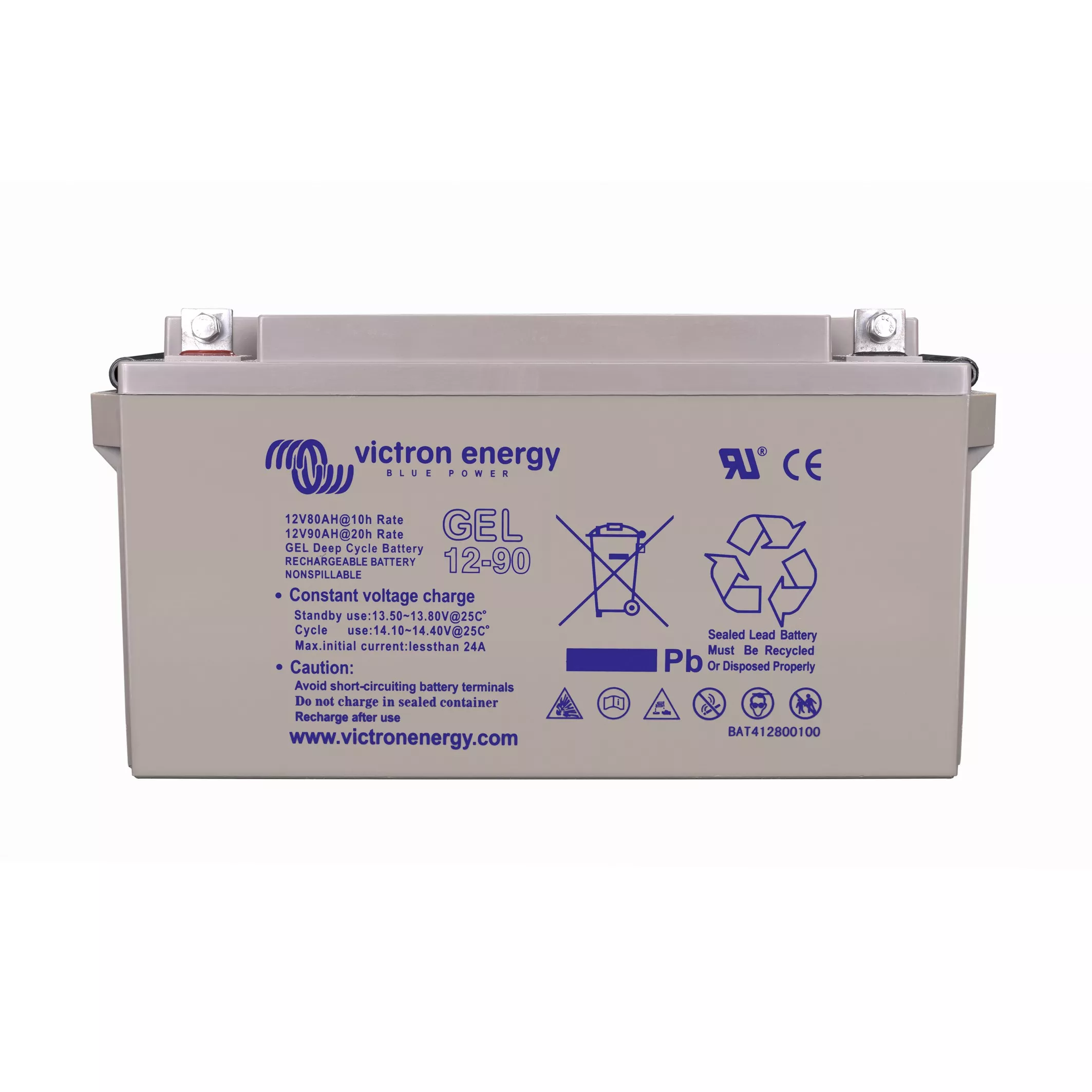

The Victron Energy 12V/90Ah Gel Deep Cycle Battery Battery (BAT412800104) from Nomadic Supply Company® is premium 12V 90Ah gel deep cycle battery designed for applications demanding extended cycle life and superior reliability. This gel battery delivers excellent performance in marine systems, renewable energy storage, and backup power applications where durability and consistent power delivery are critical.
Victron Energy 12V/90Ah Gel Deep Cycle Battery (BAT412800104) Features:
- Gel electrolyte technology for enhanced safety and durability
- Outstanding deep cycle performance with longer service life
- Exceptional recovery from deep discharge states
- Very low internal resistance for efficient power delivery
- High-purity materials minimize self-discharge
- Can store for up to one year without recharging under cool conditions
- Maintenance-free sealed VRLA design
- Compliant with CE and UL specifications
- ABS fireproof container protection
- M8 copper terminals ensure optimal connection
Victron Energy 12V/90Ah Gel Deep Cycle Battery (BAT412800104) Specifications:
| Voltage | 12V |
| Capacity | 90Ah (C20 rate) |
| Terminal Type | M8 drilled flat copper |
| Dimensions (L x W x H) | 350 x 167 x 183 mm |
| Weight | 26 kg |
| Cold Cranking Amps | 420A |
| Float Design Life | 12 years at 20°C |
| Cycle Life @ 80% DoD | 500 cycles |
| Cycle Life @ 50% DoD | 750 cycles |
| Cycle Life @ 30% DoD | 1800 cycles |
| Self-Discharge Rate | <2% per month at 20°C |
| Warranty | 2 years worldwide |
Victron Energy 12V/90Ah Gel Deep Cycle Battery (BAT412800104) Documents:
AGM & Gel Battery Datasheet
Victron Energy 12V/90Ah Gel Deep Cycle Battery (BAT412800104) Datasheet
