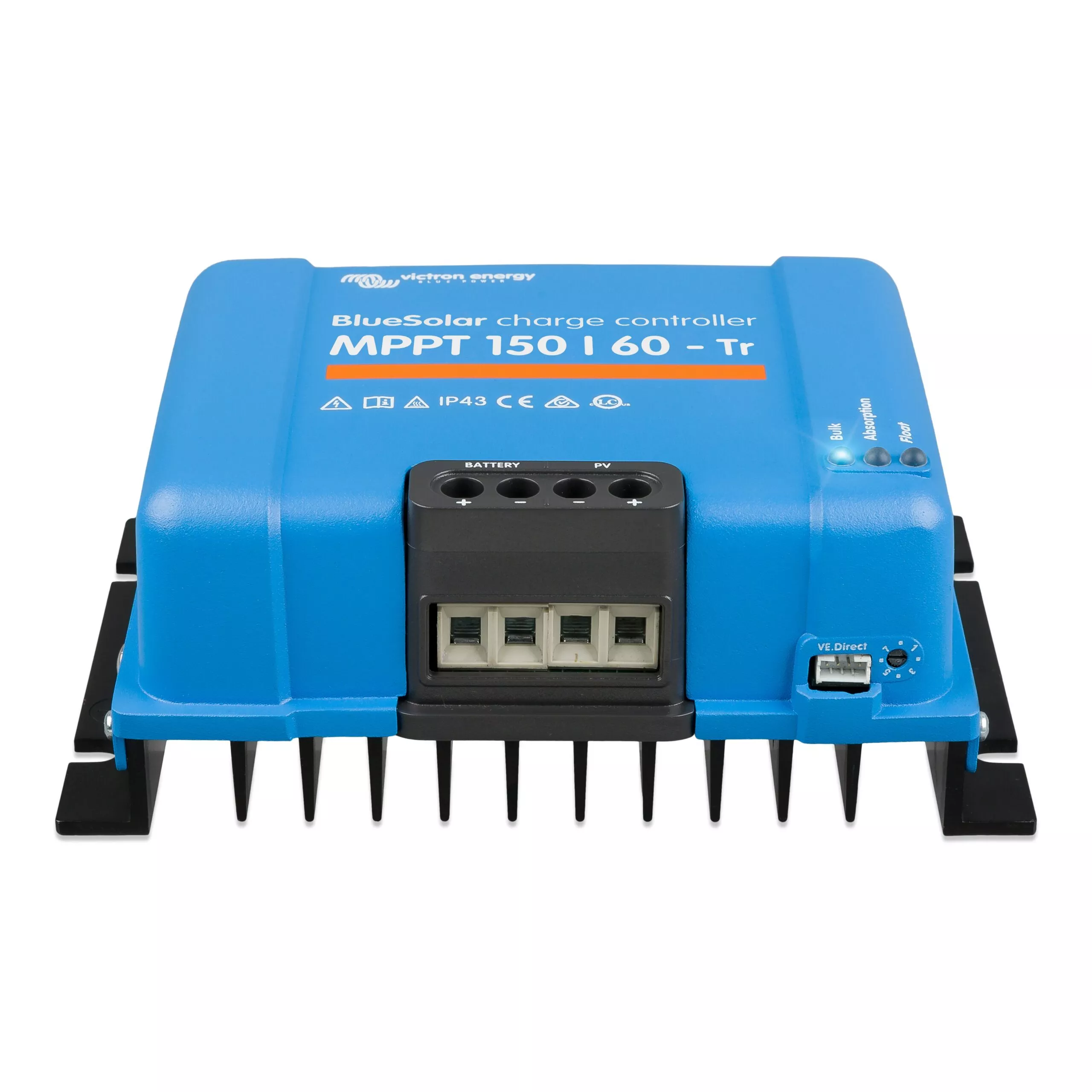

The Victron Energy BlueSolar MPPT 150/60-Tr (12/24/36/48V-60A) Solar Charge Controller (SCC010060200) from Nomadic Supply Company® features screw terminal connections for 12V, 24V, 36V, and 48V battery systems. With 60A charging capacity and 150V solar input, The Victron Energy BlueSolar MPPT 150/60-Tr (12/24/36/48V-60A) Solar Charge Controller (SCC010060200) provides robust charge control for medium to large solar arrays. The screw terminal design offers secure, reliable connections without specialized tools.
Victron Energy BlueSolar MPPT 150/60-Tr Solar Charge Controller (SCC010060200) Features:
- MPPT algorithm for optimal power harvesting
- Screw terminal connections for flexible wiring
- 60A maximum charging current
- 150V solar input voltage
- Multi-voltage support: 12V, 24V, 36V, 48V
- Eight selectable battery profiles
- Fully programmable charging algorithms
- VE.Direct communication port
- Temperature-compensated charging
- PV reverse polarity and short-circuit protection
Victron Energy BlueSolar MPPT 150/60-Tr Solar Charge Controller (SCC010060200) Specifications:
| Battery Voltage | 12V / 24V / 36V / 48V Auto Select |
| Rated Charge Current | 60A |
| Maximum PV Voltage | 150V |
| Maximum PV Short Circuit Current | 50A |
| Nominal PV Power @ 12V | 860W |
| Nominal PV Power @ 24V | 1720W |
| Nominal PV Power @ 36V | 2580W |
| Nominal PV Power @ 48V | 3440W |
| Connector Type | Screw Terminal |
| Maximum Efficiency | >98% |
Victron Energy BlueSolar MPPT 150/60-Tr Solar Charge Controller (SCC010060200) Documents:
Victron Energy BlueSolar MPPT 150/60-Tr (12/24/36/48V-60A) Solar Charge Controller (SCC010060200) Owner’s Manual
