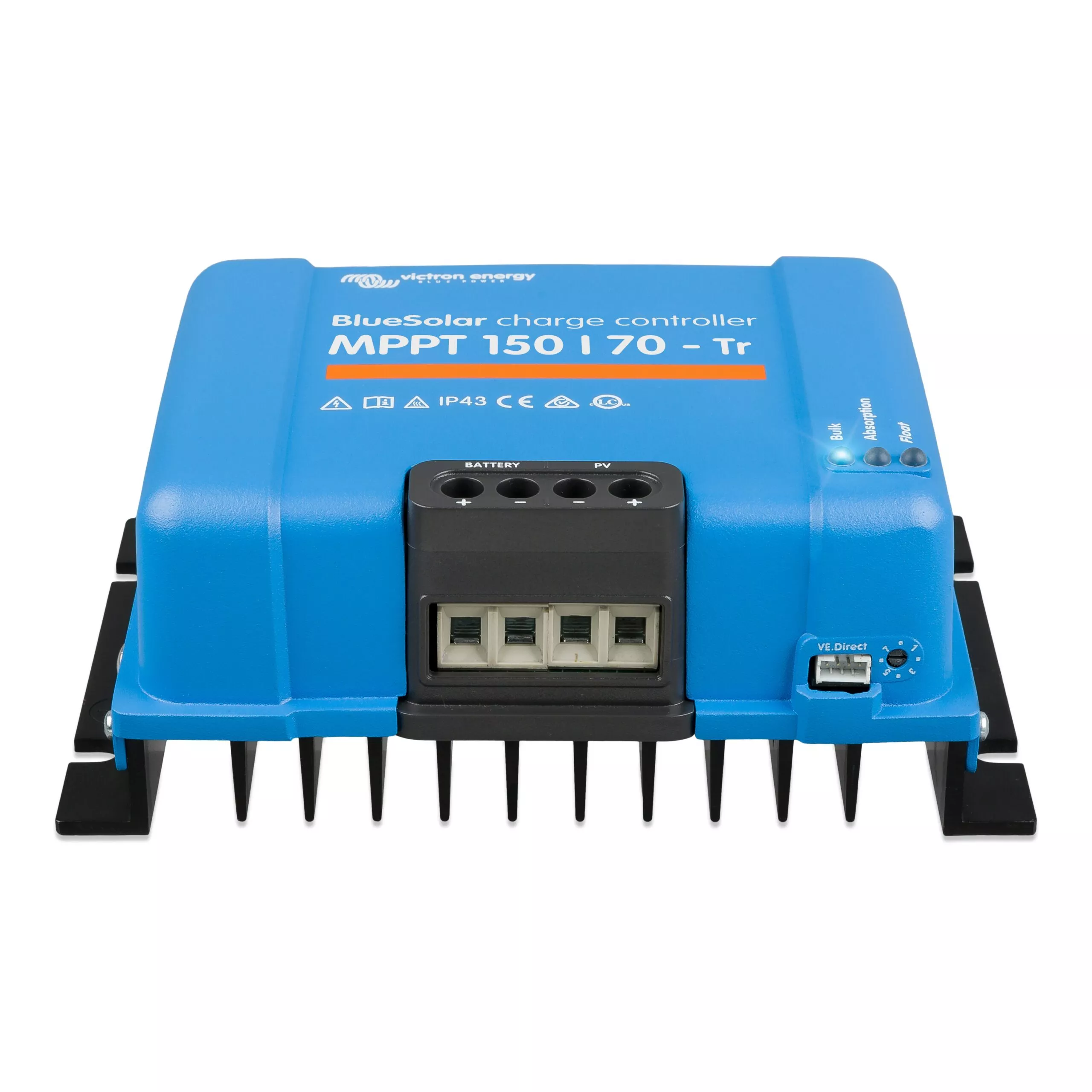

The Victron Energy BlueSolar MPPT 150/70-Tr (12/24/36/48V-70A) Solar Charge Controller (SCC010070200) from Nomadic Supply Company® is a powerful screw-terminal charge controller for 12V to 48V battery systems. With 70A charging capacity and 150V solar input, this controller is designed for larger residential solar installations and commercial applications. The screw terminal connections provide flexible wiring options without specialized connectors.
Victron Energy BlueSolar MPPT 150/70-Tr Solar Charge Controller (SCC010070200) Features:
- MPPT algorithm for maximum energy harvesting
- Screw terminal connections for flexibility
- 70A maximum charging current
- 150V solar input voltage
- Multi-voltage operation: 12V, 24V, 36V, 48V
- Eight pre-programmed battery profiles
- Fully programmable charging algorithms
- VE.Direct communication interface
- Temperature-compensated charging
- PV reverse polarity and short-circuit protection
Victron Energy BlueSolar MPPT 150/70-Tr Solar Charge Controller (SCC010070200) Specifications:
| Battery Voltage | 12V / 24V / 36V / 48V Auto Select |
| Rated Charge Current | 70A @ 40°C |
| Maximum PV Voltage | 150V |
| Maximum PV Short Circuit Current | 50A |
| Nominal PV Power @ 12V | 1000W |
| Nominal PV Power @ 24V | 2000W |
| Nominal PV Power @ 36V | 3000W |
| Nominal PV Power @ 48V | 4000W |
| Connector Type | Screw Terminal |
| Maximum Efficiency | >98% |
Victron Energy BlueSolar MPPT 150/70-Tr Solar Charge Controller (SCC010070200) Documents:
Victron Energy BlueSolar MPPT 150/70-Tr (12/24/36/48V-70A) Solar Charge Controller (SCC010070200) Owner’s Manual
