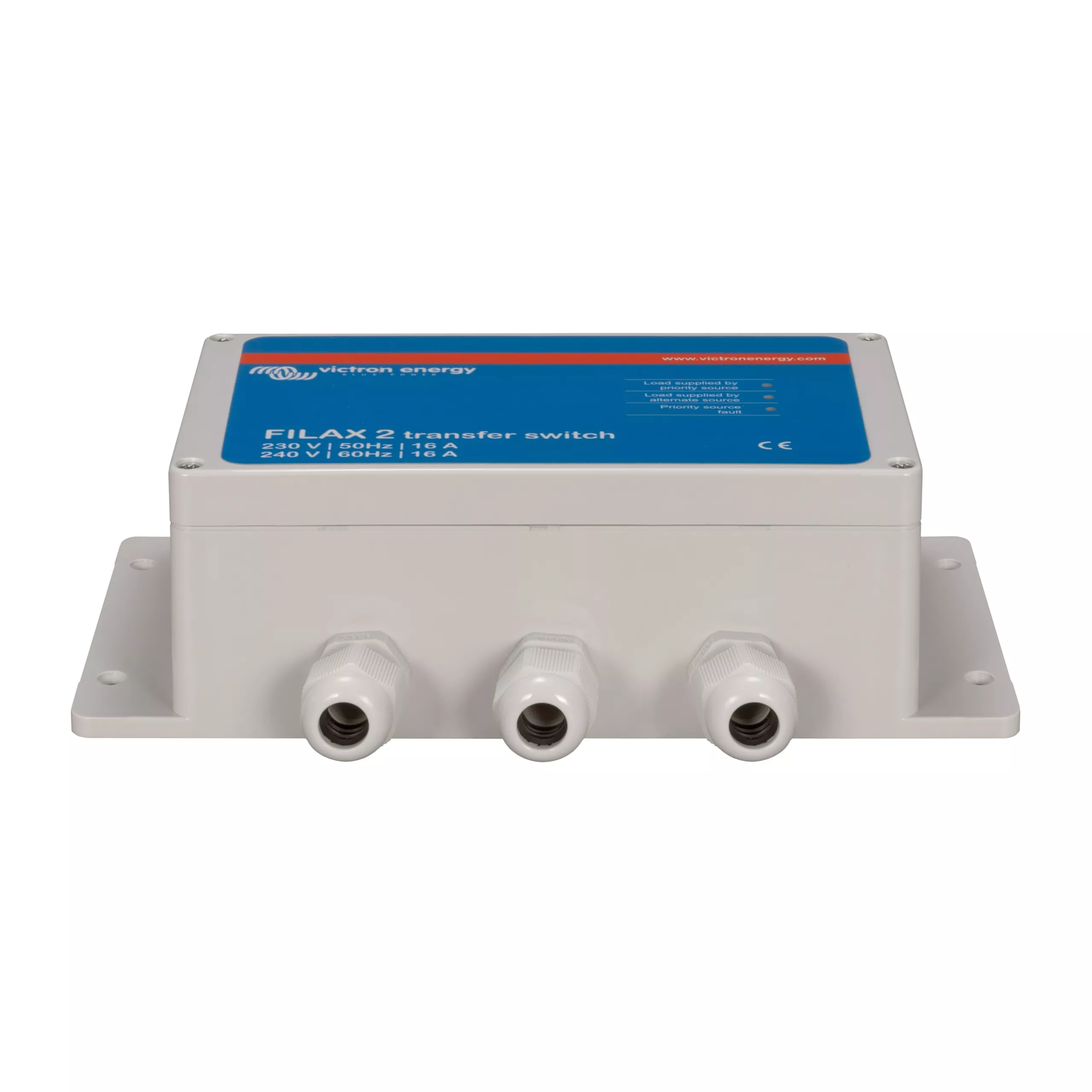

The Victron Energy Filax 2 Transfer Switch CE 230V/50Hz-240V/60Hz (SDFI0000000) from Nomadic Supply Company® is an ultra-fast automatic transfer switch designed to switch sensitive loads, such as computers or modern entertainment equipment from one AC source to another. It features an open transition design with maximum transfer time of 16ms.
Victron Energy Filax 2 Transfer Switch CE 230V/50Hz-240V/60Hz (SDFI0000000) Features:
- Ultra-fast transfer switching
- Open transition (break before make) design
- Designed for sensitive electronic loads
- 16ms maximum load transfer time
- Protection for current levels up to 16A
- Suitable for loads less than 850 watts
- Two voltage options available
- Frequency selectable via jumper (50/60Hz)
- Single compact unit design
- Easy installation between two AC sources
Victron Energy Filax 2 Transfer Switch CE 230V/50Hz-240V/60Hz (SDFI0000000) Includes:
- Filax 2 transfer switch unit
- AC input and output cables/connectors
- Installation hardware
- Configuration jumper documentation
- User manual and technical installation guide
- Warranty documentation
Victron Energy Filax 2 Transfer Switch CE 230V/50Hz-240V/60Hz (SDFI0000000) Specifications:
| Maximum Transfer Time | 16ms |
| Switch Type | Open transition (break before make) |
| Load Capacity | Less than 850 watts |
| Current Protection | Maximum 16A on both inputs |
| Voltage Option 1 | 110V/50Hz-120V/60Hz (model SDFI0000110) |
| Voltage Option 2 | 230V/50Hz-240V/60Hz (model SDFI0000000) |
| Frequency Setting | Jumper selectable (50/60Hz) |
| Input Connectors | Two independent AC inputs |
| Output Connector | Single AC output |
| Application Type | Sensitive loads (computers, electronics) |
| Design | Compact solid-state electronic |
| Mounting | Panel or inline mount |
Victron Energy Filax 2 Transfer Switch CE 230V/50Hz-240V/60Hz (SDFI0000000) Documents:
Filax-2 Transfer Switch Manual
Victron Energy Filax 2 Transfer Switch CE 230V/50Hz-240V/60Hz (SDFI0000000) Owner’s Manual
