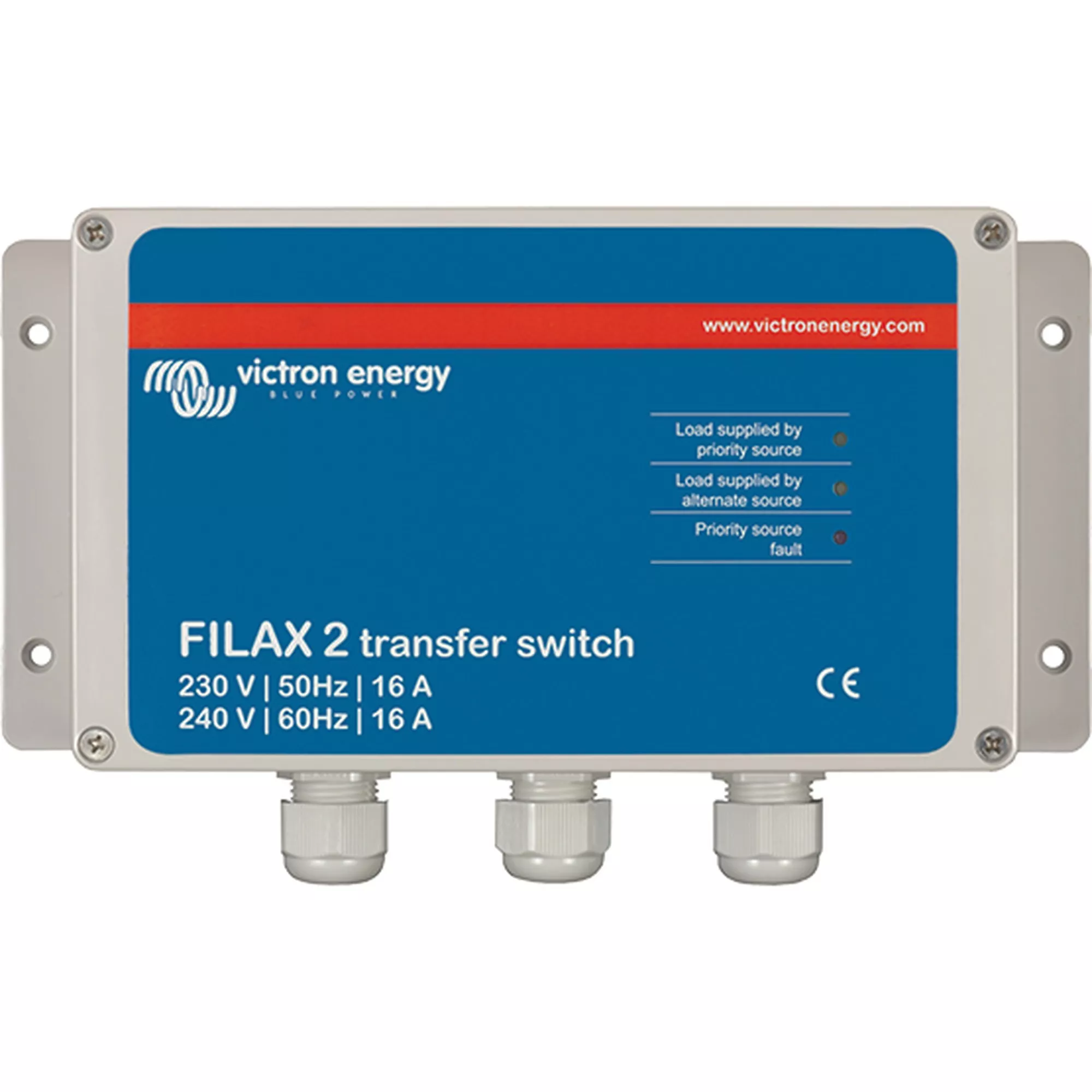

Victron Energy Filax-2 Transfer Switch (SDFI0000110)

The Victron Energy Filax-2 Transfer Switch (SDFI0000110) from Nomadic Supply Company® quickly transfers sensitive loads between AC sources. The Filax has been designed to switch sensitive loads, such as computers or modern entertainment equipment, from one AC source to another. The priority source typically is the mains, a generator, or shore power. The alternate source is typically an inverter. With its switching time of less than 20 milliseconds, sensitive loads will continue to operate without disruption. The Victron Energy Filax-2 Transfer Switch (SDFI0000110) is not intended to supply high-power household equipment like washing machines or electric motors.

The Victron Energy Filax-2 Transfer Switch (SDFI0000110) is an ultra-fast transfer switch engineered to transition sensitive loads, such as computers or modern entertainment equipment, from one AC source to another. The priority source is typically mains, generator, or shore power, while the alternate source is usually an inverter.

Designed for sensitive loads such as computers or modern entertainment equipment. Not intended to supply high-power household equipment like washing machines or electric motors. Comprehensive datasheet and installation instructions available from Victron Energy.

Victron Energy Filax-2 Transfer Switch (SDFI0000110) Features:

• Open transition (break before make) automatic transfer switch
• Load transfer time: 16 ms.
• Maximum current: 16 Amps.
• Voltage rating: 110V/50Hz-120V/60Hz.
• IP 65 enclosure rating.
• Dimensions: 120 x 255 x 75mm.

Victron Energy Filax-2 Transfer Switch (SDFI0000110) Specifications:

Victron Energy Filax-2 Transfer Switch (SDFI0000110) Documents:

Filax-2 Transfer Switch Manual

Victron Energy Filax-2 Transfer Switch (SDFI0000110) Transfer Switch

Victron Energy Filax-2 Transfer Switch (SDFI0000110) Owner’s Manual
