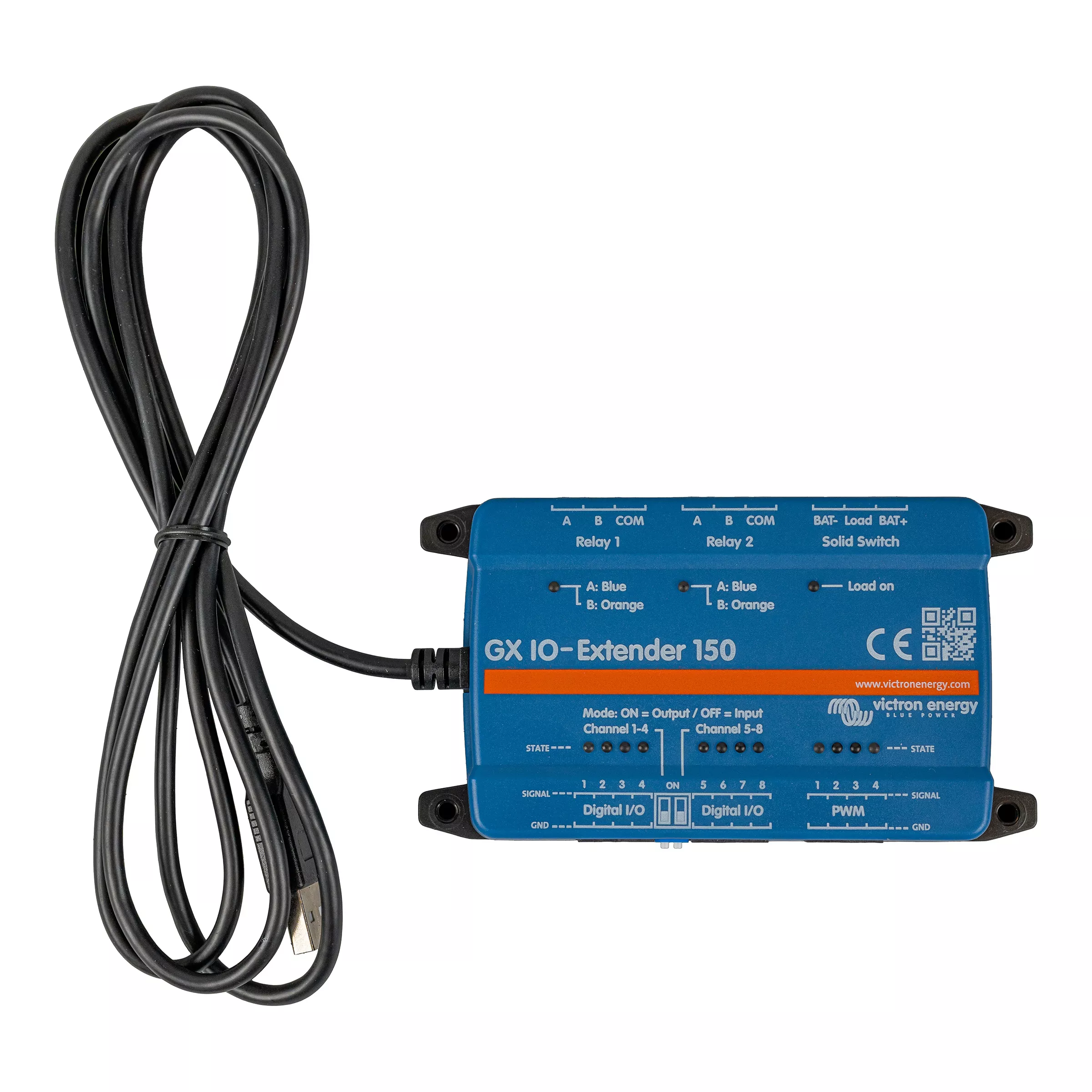

The Victron Energy GX IO-Extender 150 (BPP900800150) from Nomadic Supply Company® The GX IO-Extender 150 enhances the input and output (I/O) capabilities of a GX device, enabling seamless integration with additional sensors, controls, and external devices. It connects via USB, which also serves as its power source, providing a simple and efficient expansion solution. The device can be controlled using Node-RED on the GX device as well as the Switch pane in the user interface.
Victron Energy GX IO-Extender 150 (BPP900800150) Features:
- 8 digital I/Os, configurable as 8 inputs, 8 outputs or 4 inputs + 4 outputs
- PWM output for precise control applications
- Two latching relays for low-power switching
- A solid-state relay (SSR) for high-speed switching of DC loads that can be resistive, capacitive, or inductive (such as the coil of a high-power contactor)
- Pluggable spring terminals for fast and secure connections
- Configurable via Node-RED for easy automation and custom logic
- Be aware that the digital inputs only accept 5 volts max. If you need to use a higher voltage, an external device is required.
Victron Energy GX IO-Extender 150 (BPP900800150) Documents:
Victron Energy GX IO-Extender 150 (BPP900800150) Warranty Info
Victron Energy GX IO-Extender 150 (BPP900800150) Owner’s Manual
Victron Energy GX IO-Extender 150 (BPP900800150) Warranty Card
Victron Energy GX IO-Extender 150 (BPP900800150) Extender
