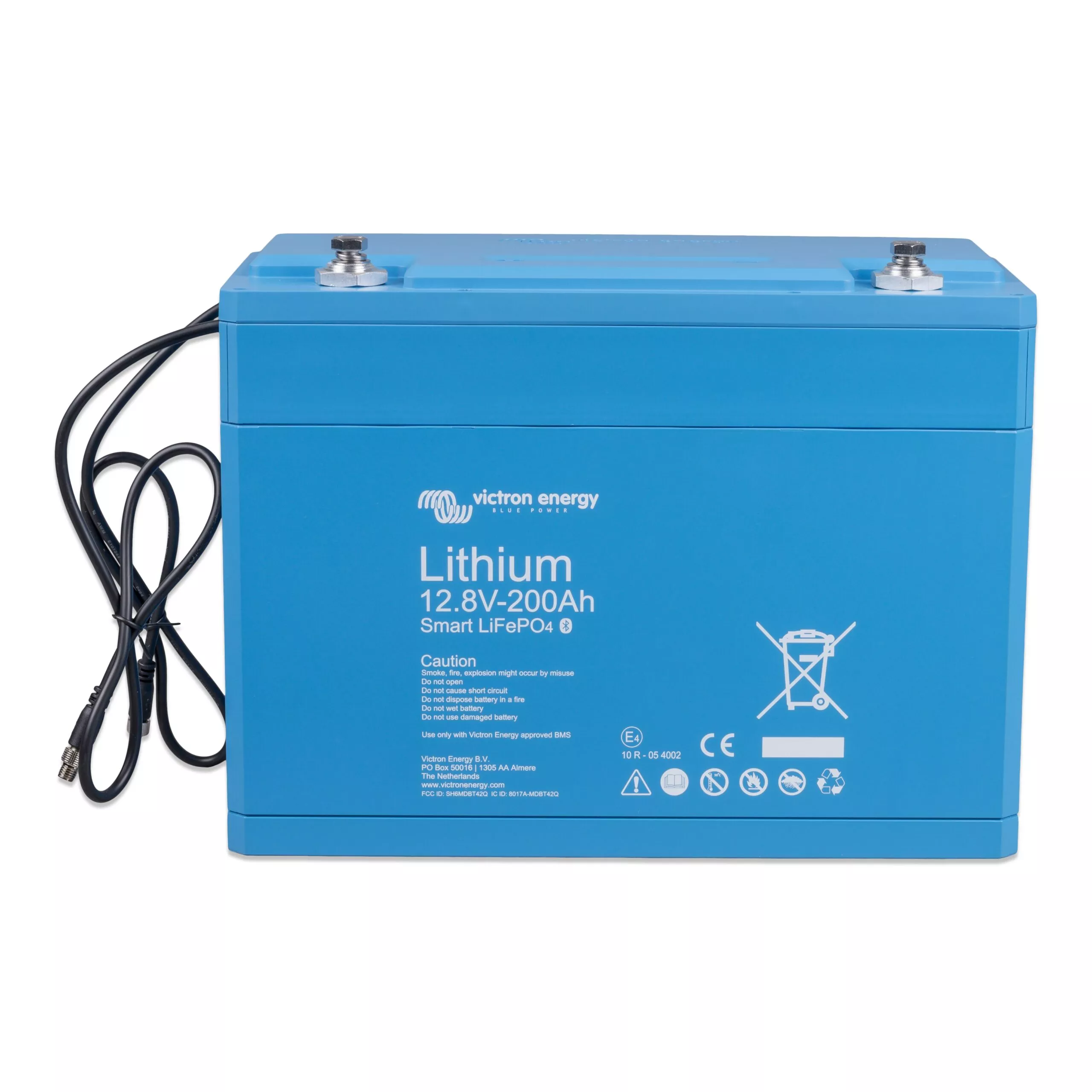

The Victron Energy Lithium SuperPack 12, 8V/200Ah (M8) Battery (BAT512120705) from Nomadic Supply Company® is professional-grade 12.8V 200Ah Lithium SuperPack battery providing maximum energy storage for large-scale marine, solar, and mobile power systems. This high-capacity lithium battery delivers reliable, efficient power with integrated management for demanding applications.
Victron Energy Lithium SuperPack 12, 8V/200Ah (M8) Battery (BAT512120705) Features:
- LiFePO4 lithium chemistry for advanced energy storage
- Integrated Battery Management System and safety switch
- 92% round-trip energy efficiency
- Up to 2500 cycles at 80% depth of discharge
- Automatic protection against over-discharge, overcharge, and temperature extremes
- Approximately 70% lighter than equivalent lead-acid batteries
- Supports rapid charging for quick system recharge
- Can be connected in parallel for expanded storage
- Simple installation without additional components required
- M8 threaded insert terminals for robust connections
Victron Energy Lithium SuperPack 12, 8V/200Ah (M8) Battery (BAT512120705) Specifications:
| Voltage | 12.8V nominal |
| Capacity | 200Ah (C20 rate) |
| Terminal Type | M8 insert |
| Dimensions (H x W x D) | 255 x 565 x 310 mm |
| Weight | 32 kg |
| Energy | 2560Wh |
| Max Continuous Discharge | 100A |
| Max Continuous Charge | 100A |
| Charging Voltage (absorption) | 14.2 – 14.4V |
| Charging Voltage (float) | 13.5V |
| Operating Temperature (charge) | +5°C to +45°C |
| Operating Temperature (discharge) | -10°C to +50°C |
