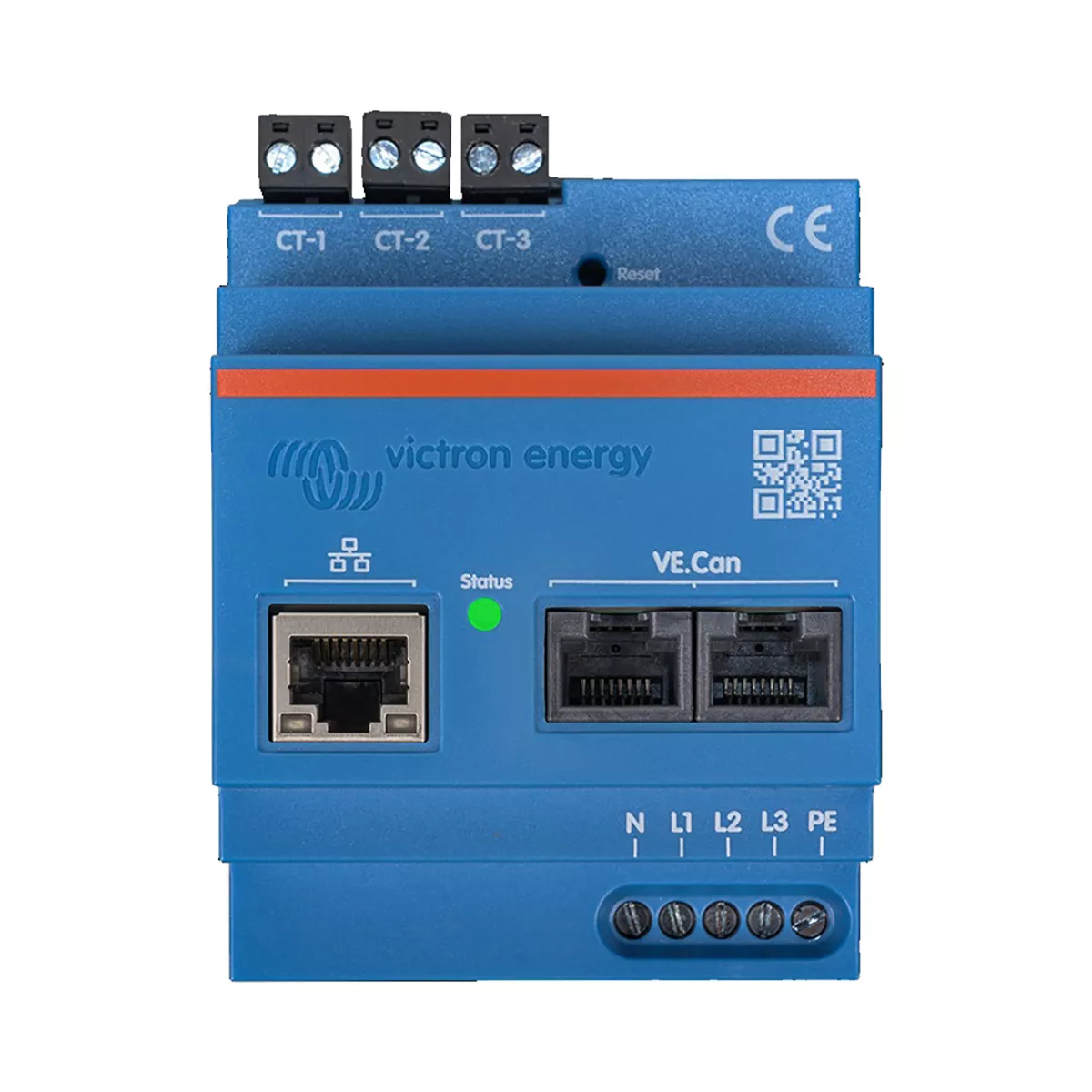

The Victron Energy Meter VM-3P75CT (REL200300100) from Nomadic Supply Company® is a standard device to measure the power and energy of single- and three-phase applications and calculates each phase’s power values and broadcasts this over VE.Can or Ethernet with a high rate.
It has built-in Ethernet and VE.Can ports for connecting to a GX device and the split-core current transformers enable easy and quick installation without modifying existing wiring.
The Victron Energy Meter VM-3P75CT (REL200300100) works out of the box (the firmware may need to be updated; details can be found in the Firmware Updates chapter) as a grid meter for systems with a MultiPlus and Quattro. Configuration (via VictronConnect) is only required for changing the role and manual IP configuration, rather than the default DHCP. Its data is displayed on a GX device such as the Cerbo GX or Ekrano GX, as well as in VictronConnect and the VRM Portal.
Victron Energy Meter VM-3P75CT (REL200300100) Features:
- Three-Phase Energy Monitoring. Measures voltage, current, power, and energy on all three phases for complete AC system visibility.
- 75A Current Transformers Included. Ships with three 75A split-core CTs for non-invasive installation on existing wiring without disconnecting circuits.
- GX Device Integration. Connects directly to Victron GX devices for centralized monitoring of grid, shore power, and generator AC inputs.
- Bidirectional Measurement. Detects both power consumption and feed-in for grid-tied and hybrid solar installations.
- DIN Rail Mounting. Standard DIN rail form factor for professional installation in electrical distribution panels and switchboards.
There are several Energy Meters available from Victron:
Victron VM-3P75CT energy meter (Ethernet and VE.Can – for three-phase and split-phase, uses supplied CTs, max. 80A per phase) ET112 (RS485 – for single-phase max. 100A) ET340 (RS485 – for three-phase max. 65A) EM24 Ethernet (Ethernet – for three-phase max. 65A) EM540 (RS485 – for three-phase max. 65A)
Victron Energy Meter VM-3P75CT (REL200300100) Specifications:
| VM-3P75CT | REL200300100 |
|---|---|
| VOLTAGE INPUTS | |
| Voltage connection | Direct |
| Input voltage range L-N | 85 to 265VAC |
| Input voltage range L-L | 150 to 460VAC |
| Frequency | 50/60Hz |
| CURRENT INPUTS | |
| Current connection | Via current transformers (included – wire length 640mm (25.2in) |
| Rated current | 75A |
| COMMUNICATION | |
| VE.Can communication port | Two RJ45 connectors (VE.Can terminators included) |
| Ethernet communication port | One RJ45 connector, Modbus UDP |
| Refresh rate | 100ms |
| POWER SUPPLY | |
| Type | Self-power supply via L1-N |
| Switch or circuit breaker | Required as means of a disconnecting device – not included |
| External fuse [1] | Required in the neutral conductor – 500mA, not included |
| Consumption | 1.45W / 3.1VA |
| Frequency | 50/60Hz |
| ENCLOSURE | |
| Material & colour | Polycarbonate, blue (RAL5012) |
| Voltage connection | Screw terminals 0.25 – 1.5mm2 (24 – 16AWG) |
| Current transformer connection | Pluggable screw terminals (included) |
| Protection category | IP20 |
| Weight | 370g (including packaging) |
| Dimensions | 90 x 71 x 59mm (3.5 x 2.8 x 2.3in) |
| ENVIRONMENTAL | |
| Indoor/outdoor usage | Indoor only |
| Operating temperature | From -10 to +55 °C |
| Storage temperature | From -20 to +70 °C |
| Relative humidity | <90% non-condensing |
| Altitude | 2000m (6562ft) |
| Mains supply voltage fluctuations | ±0.1Vin |
| Overvoltage category | Cat. III |
| Pollution degree | 2 |
| STANDARDS | |
| Safety | EN-IEC 61010-1 |
| [1] Can be omitted if a circuit breaker with a fuse rating of 500mA is used as the isolating device. |
Victron Energy Meter VM-3P75CT (REL200300100) Documents:
Victron Energy Meter VM-3P75CT (REL200300100) Owner’s Manual
