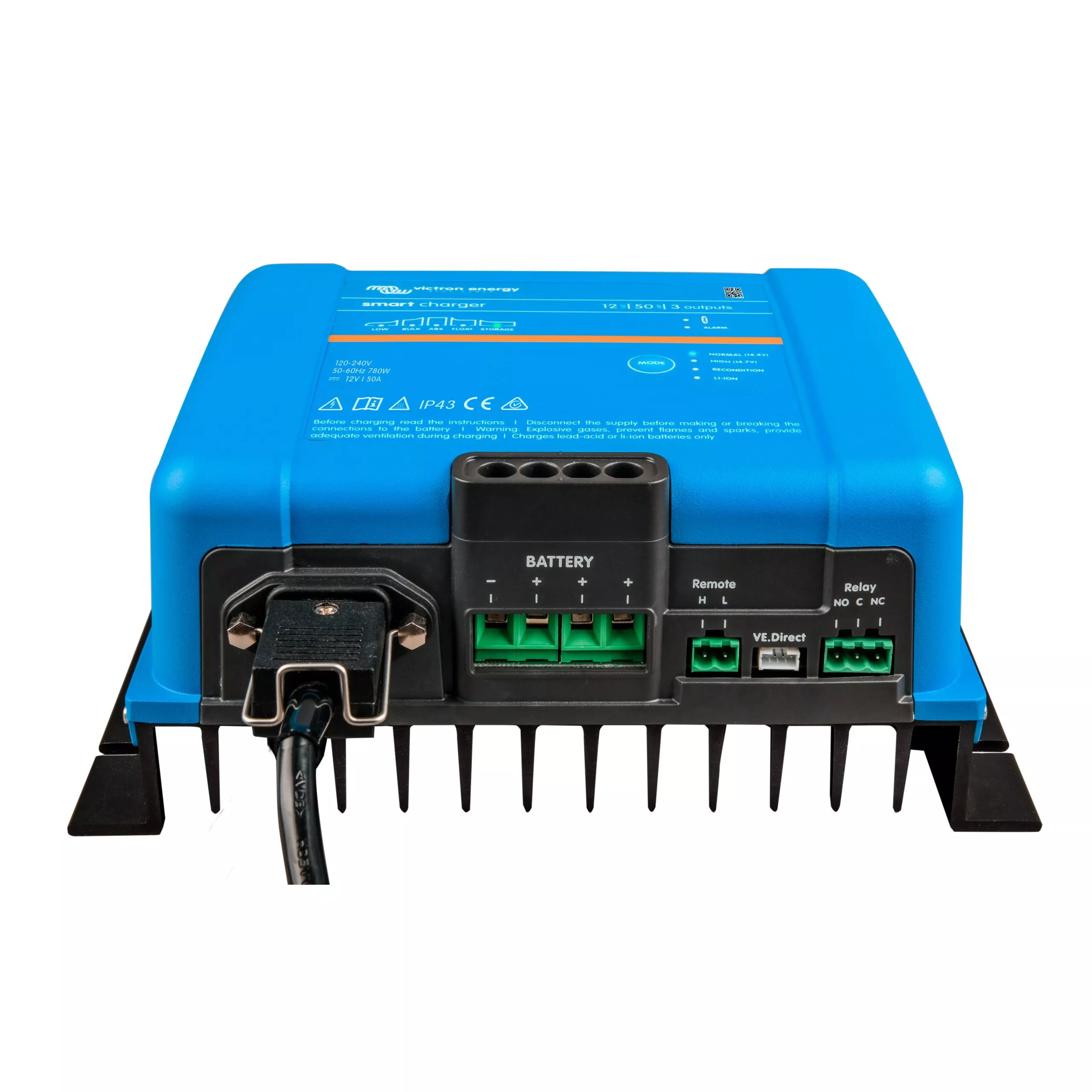

The Victron Energy Phoenix Smart IP43 Charger 12/50(3) 230V (PSC125053085) from Nomadic Supply Company® is an adaptive 5-step charger that can provide 30A or 50A of charge to each of three battery banks. The 1+1 model provides 3A to the starter-battery, the rest to the house bank. Models available for 12V and 24V systems.
Victron Energy Phoenix Smart IP43 Charger 12/50(3) 230V (PSC125053085) Features:
- Adaptive 5-stage charging algorithm
- Three isolated full-current outputs
- Bluetooth enabled for smartphone monitoring
- Adaptive absorption monitors battery response
- Intelligent absorption duration determination
- Automatic temperature-based voltage compensation
- VictronConnect app for configuration
- Alarms configurable via app
- VE.Direct integration with GX devices
- Advanced monitoring and firmware updates via app
Victron Energy Phoenix Smart IP43 Charger 12/50(3) 230V (PSC125053085) Includes:
- Phoenix Smart IP43 charger unit
- VE.Direct cable
- Installation hardware
- User manual and documentation
- Warranty documentation
- Bluetooth connectivity capabilities
Victron Energy Phoenix Smart IP43 Charger 12/50(3) 230V (PSC125053085) Specifications:
| Voltage Options | 12V or 24V |
| Amperage Options | 30A or 50A per output |
| Output Configuration | 3 isolated outputs or 1+1 (main + 3A starter) |
| Full Current Outputs | Each output can supply full rated current |
| Charging Stages | 5-stage adaptive algorithm |
| Adaptive Absorption | Yes – monitors battery response |
| Temperature Compensation | Automatic ambient temperature sensing |
| Bluetooth | Built-in |
| Communication | VE.Direct interface |
| Firmware Updates | Via VictronConnect app |
| Input Voltage | Universal AC range |
| IP Rating | IP43 (splash and dust resistant) |
| GX Integration | Yes – full system monitoring via Cerbo GX |
Victron Energy Phoenix Smart IP43 Charger 12/50(3) 230V (PSC125053085) Documents:
Victron Energy Phoenix Smart IP43 Charger 12/50(3) 230V (PSC125053085) Owner’s Manual
