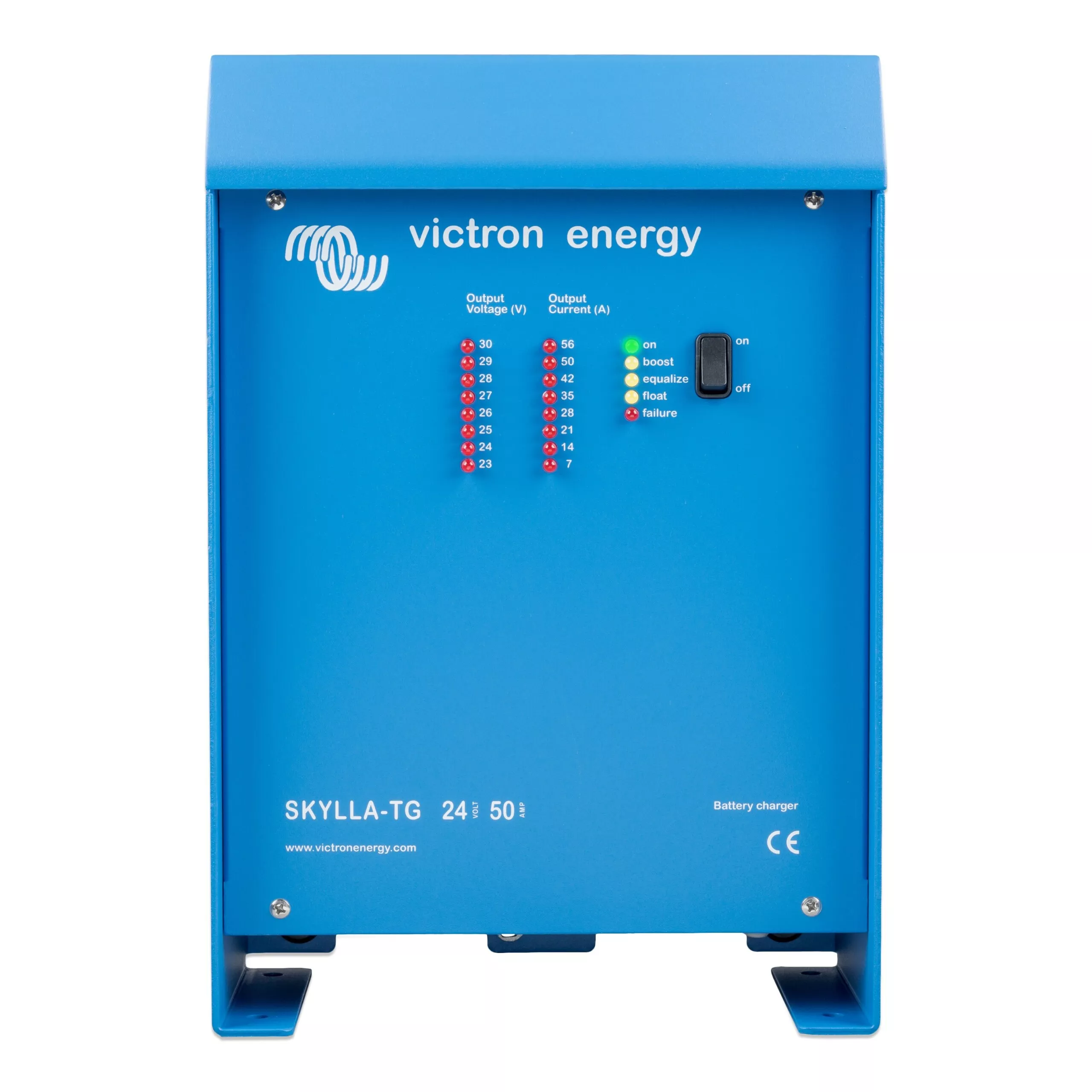

The Victron Energy Skylla-TG 24/50 (1+1) 90-265VAC CE GL Battery Charger (SDTG2400503) from Nomadic Supply Company® is skylla-TG 24/50 (1+1) 90-265VAC CE GL battery charger delivers 50 amps of charging power for 24-volt systems with wide input voltage range acceptance. The GL and CE certifications ensure marine and European compliance. The universal input capability enables operation across North American and European voltage standards without reconfiguration.
Victron Energy Skylla-TG 24/50 (1+1) 90-265VAC CE GL Battery Charger (SDTG2400503) Features:
- 50-amp main battery output
- 4-amp secondary output for auxiliary batteries
- Three-step microprocessor charging algorithm
- Adjustable voltage to suit any battery system
- Temperature compensation via included sensor
- Voltage sensing facility
- Wide input voltage range 90-265VAC
- CE and GL certified
- Short-circuit protection at 50A
Victron Energy Skylla-TG 24/50 (1+1) 90-265VAC CE GL Battery Charger (SDTG2400503) Includes:
- Battery temperature sensor
Victron Energy Skylla-TG 24/50 (1+1) 90-265VAC CE GL Battery Charger (SDTG2400503) Specifications:
| DC Output Voltage | 24V |
| Main Charge Current | 50A |
| Secondary Charge Current | 4A |
| Input Voltage Range | 90-265VAC and 90-400VDC |
| Frequency | 50/60 Hz |
| Output Power | 1200W |
| Certifications | CE and GL |
| Short-Circuit Protection | 50A electronically limited |
| Number of Outputs | 2 isolated |
Victron Energy Skylla-TG 24/50 (1+1) 90-265VAC CE GL Battery Charger (SDTG2400503) Documents:
Skylla-TG Universal Input Manual
Skylla-TG Manual
Victron Energy Skylla-TG 24/50 (1+1) 90-265VAC CE GL Battery Charger (SDTG2400503) Owner’s Manual
Victron Energy Skylla-TG 24/50 (1+1) 90-265VAC CE GL Battery Charger (SDTG2400503) Datasheet
