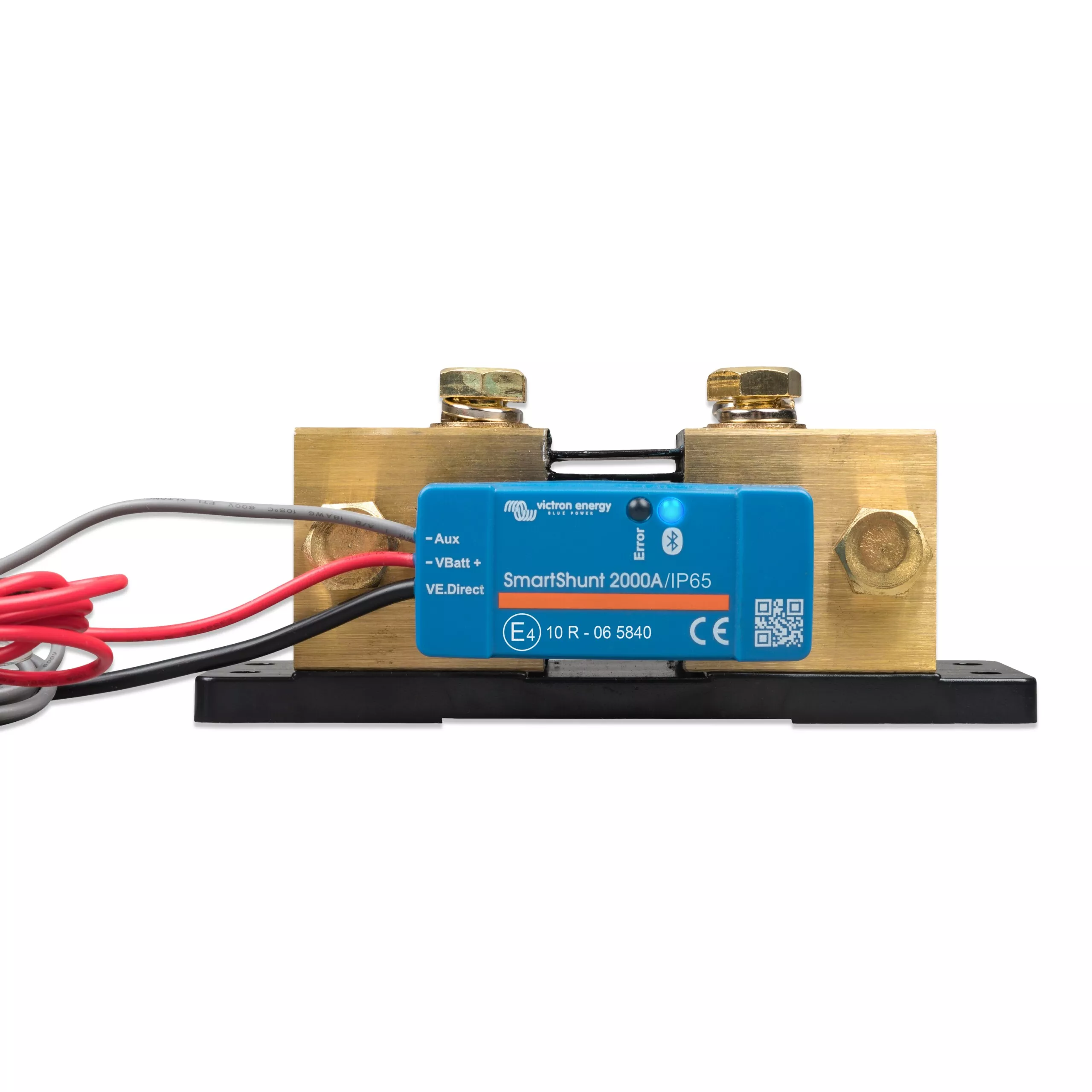

The Victron Energy SmartShunt 2000A/50mV IP65 Fuse (SHU065220050) from Nomadic Supply Company® is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect App and you can conveniently read out all monitored battery parameters.
Victron Energy SmartShunt 2000A/50mV IP65 Fuse (SHU065220050) Features:
- Bluetooth connectivity for smartphone/tablet monitoring
- Highly accurate for all battery chemistries (Lithium, AGM, Flooded)
- Measures battery voltage and current
- Calculates state of charge and time-to-go
- Available in 4 sizes: 300A, 500A, 1000A, 2000A
- VE.Direct port for system integration
- Temperature sensor connection capability
- Second battery or midpoint monitoring option
- IP21 standard and IP65 waterproof versions
- Operates up to 70V DC systems
Victron Energy SmartShunt 2000A/50mV IP65 Fuse (SHU065220050) Includes:
- SmartShunt battery monitor unit
- Shunt with 50mV specification
- VE.Direct cable
- Installation hardware
- User manual and documentation
Victron Energy SmartShunt 2000A/50mV IP65 Fuse (SHU065220050) Specifications:
| Current Ratings | 300A, 500A, 1000A, 2000A |
| Voltage Range | 6.5 – 70V DC |
| Capacity Range | 1 – 9999 Ah |
| Communication | Bluetooth + VE.Direct |
| IP Rating Standard | IP21 (dry location) |
| IP Rating Waterproof | IP65 (dust and moisture resistant) |
| Connectivity Features | Bluetooth, VE.Direct port, temperature sensor input |
| Monitoring Capabilities | Voltage, current, state of charge, time to go, historical data |
| Display | None (smartphone/tablet display via app) |
| System Support | Lithium, AGM, Flooded batteries |
Victron Energy SmartShunt 2000A/50mV IP65 Fuse (SHU065220050) Documents:
BMV Battery Monitor & SmartShunt Manual (Ed. 3)
BMV Battery Monitor & SmartShunt Manual (Ed. 2)
BMV Battery Monitor & SmartShunt Manual
Victron Energy SmartShunt 2000A/50mV IP65 Fuse (SHU065220050) Owner’s Manual
