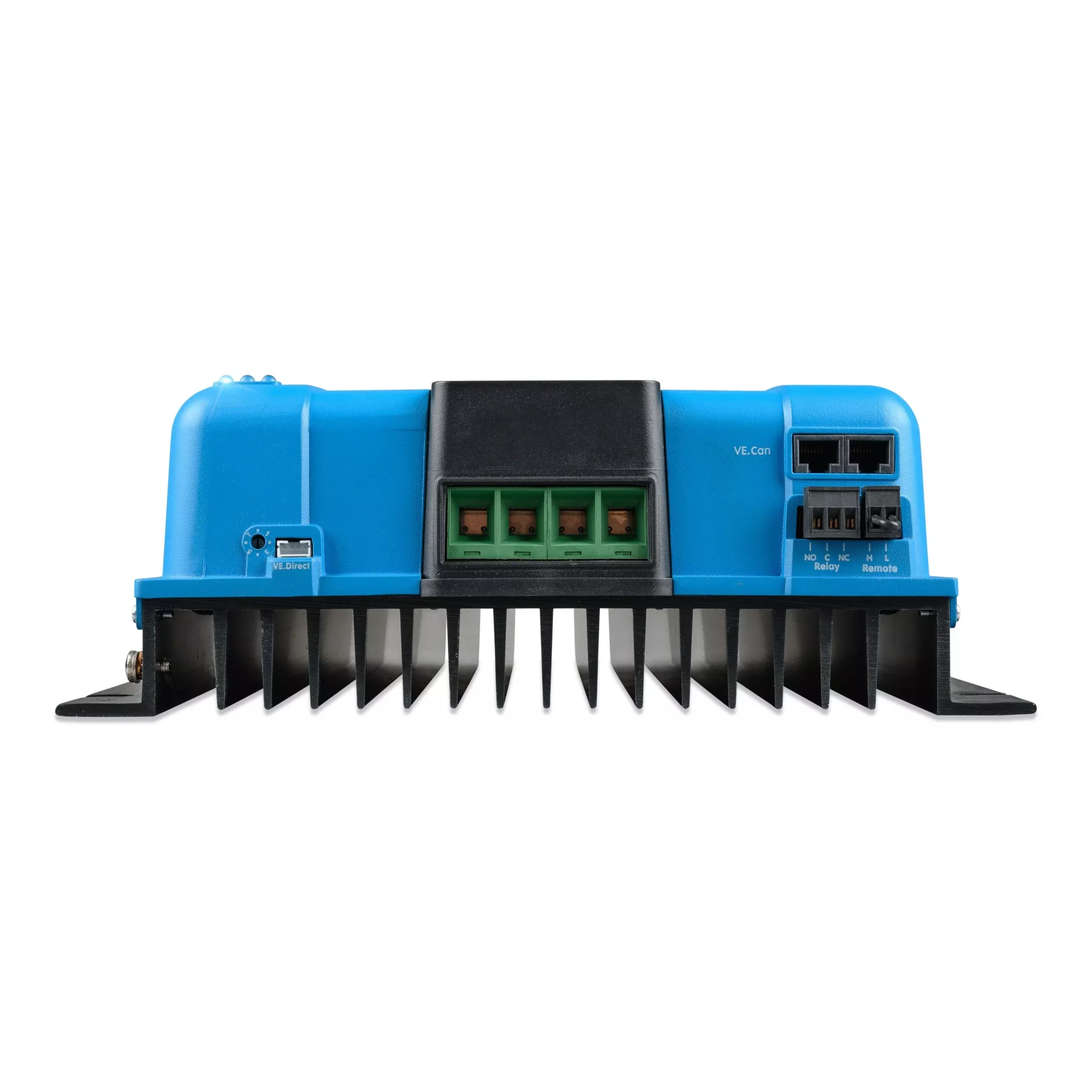

The Victron Energy SmartSolar MPPT 150/100-MC4 VE.Can Solar Charge Controller (SCC115110511) from Nomadic Supply Company® is an ultra-high-capacity charge controller for complex solar installations requiring 100A output at 150V input. With VE.Can networking supporting up to 25 synchronized units, this smart controller handles the most demanding energy systems. MC4 connectors ensure compatibility with modern solar arrays.
Victron Energy SmartSolar MPPT 150/100-MC4 VE.Can Charge Controller (SCC115110511) Features:
- Built-in Bluetooth with VictronConnect app
- VE.Can networking for multi-controller systems
- MC4 solar connectors for standard compatibility
- 100A maximum charging current
- 150V solar input voltage
- Multi-voltage support: 12V, 24V, 36V, 48V
- Synchronize up to 25 units via VE.Can
- Remote monitoring and configuration
- Eight pre-programmed battery profiles
- Temperature-compensated charging
Victron Energy SmartSolar MPPT 150/100-MC4 VE.Can Charge Controller (SCC115110511) Specifications:
| Battery Voltage | 12V / 24V / 36V / 48V Auto Select |
| Rated Charge Current | 100A |
| Maximum PV Voltage | 150V |
| Maximum PV Short Circuit Current | 70A per MC4 connector |
| Nominal PV Power @ 12V | 1450W |
| Nominal PV Power @ 24V | 2900W |
| Nominal PV Power @ 36V | 4350W |
| Nominal PV Power @ 48V | 5800W |
| Connector Type | MC4 |
| Communication | VE.Can + Bluetooth |
| Maximum Efficiency | >98% |
Victron Energy SmartSolar MPPT 150/100-MC4 VE.Can Charge Controller (SCC115110511) Documents:
Victron Energy SmartSolar MPPT 150/100-MC4 VE.Can Charge Controller (SCC115110511) Ve Can
Victron Energy SmartSolar MPPT 150/100-MC4 VE.Can Solar Charge Controller (SCC115110511) Owner’s Manual
